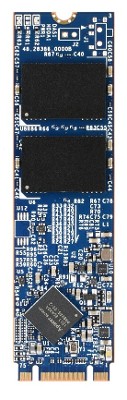

Apacer SV250-M280

A52.255FGA.001HA, A52.255FHA.001HA, A52.255GGA.001HA, A52.255GHA.001HA, A52.255HGA.001HA, A52.255HGA.006EM, A52.255HHA.001HA, A52.255HHA.004EF, A52.255JGA.001HA, A52.255JGA.008EM, A52.255JHA.001HA, A52.255JHA.004EF, A52.255KGA.001HA, A52.255KGA.006EM, A52.255KHA.001HA, A52.255KHA.004EF, A52.255LGB.001HA, A52.255LGB.007EM, A52.255LHB.001HA, A52.255LHB.004EF, A52.255MGB.002EM, A52.255MHB.001EF

M.2

The product is EOL (End Of Life)!

PRODUCT FEATURES

// M.2
// 3D TLC
// SATA 3
// SV250-M280
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Apacer SV250-M280

General information
SKU / Item NumberSV250-M280A52.255HGA.006EM, A52.255HHA.004EF, A52.255JGA.008EM, A52.255JHA.004EF, A52.255KGA.006EM, A52.255KHA.004EF, A52.255LGB.007EM, A52.255LHB.004EF, A52.255MGB.002EM, A52.255MHB.001EF, A52.255FGA.001HA, A52.255FHA.001HA, A52.255GGA.001HA, A52.255GHA.001HA, A52.255HGA.001HA, A52.255HHA.001HA, A52.255JGA.001HA, A52.255JHA.001HA, A52.255KGA.001HA, A52.255KHA.001HA, A52.255LGB.001HA, A52.255LHB.001HA
Product Basic Data
ManufacturerApacer
Flash storage media
SeriesSV250-M280
Connection (Interface)SATA 3
Flash structureM.2 (NGFF)
Key TypeB + M
Flash type3D TLC
Capacity1.92 TB, 30 GB, 60 GB, 120 GB, 240 GB, 480 GB, 960 GB
ECC (Error-Correcting Code)Supported (24 bits per 1 KB)
Temperature sensorYes
TRIMis supported
Flash mode64-layer 3D flash (BiCS3 / B16 / B17), 112/128 Layer 3D Flash
ATA SecurityYes
Advanced Encryption Standard (AES)Yes
S.M.A.R.T.Yes
DEVSLP modeYes (Power consumption > 3 mW)
TCG OpalYes
Cooling
ImplementationPassive
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-40°C to 100°C
DimensionsForm factorM.2
Type2280
InterfaceSATA III
Width22 mm
Deep80 mm
Height3,58 mm
VibrationVibration7.69 G, 20–2000 Hz
Reference StandardMIL-STD-810G
ShockMeasurement Data50G, 0.5 ms
Reference StandardMIL-STD-810G
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Power Supply
Input voltage3.3V
Certificates / Conformities
CEYes
RoHS compliantYes
