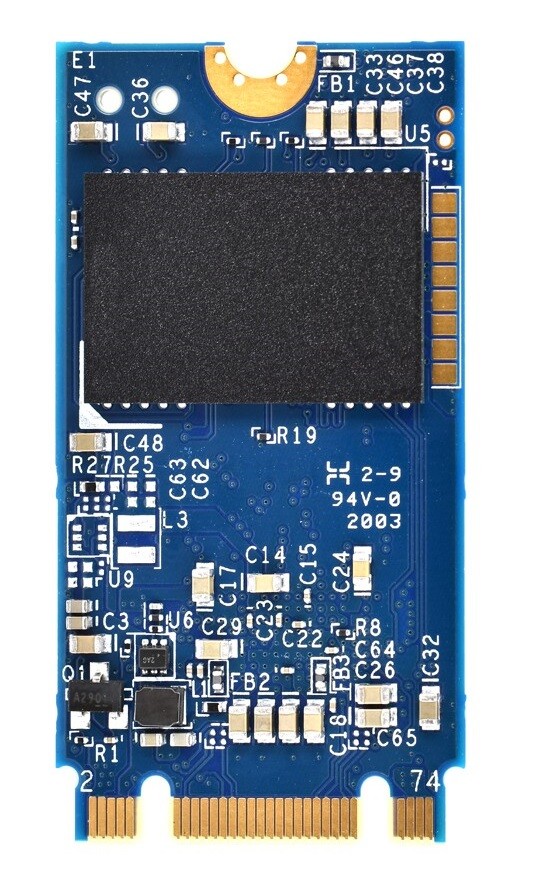

Apacer PV910-M242

B72.915GGB.00222, B72.915GHB.00222, B72.915HGB.00222, B72.915HGB.00320, B72.915HHB.00222, B72.915HHB.00320, B72.915JGB.00222, B72.915JGB.00320, B72.915JHB.00222, B72.915JHB.00320, B72.915KGB.00222, B72.915KGB.00320, B72.915KHB.00222, B72.915KHB.00420, B72.915LGB.00120, B72.915LHB.00120

M.2

PRODUCT FEATURES

// M.2
// 3D TLC
// PCI Express Gen. 3
// PV910-M242
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Apacer PV910-M242

General information
SKU / Item NumberPV910-M242B72.915GGB.00222, B72.915GHB.00222, B72.915HGB.00222, B72.915HHB.00222, B72.915JGB.00222, B72.915JHB.00222, B72.915KGB.00222, B72.915KHB.00222, B72.915HGB.00320, B72.915HHB.00320, B72.915JGB.00320, B72.915JHB.00320, B72.915KGB.00320, B72.915KHB.00420, B72.915LGB.00120, B72.915LHB.00120
Product Basic Data
ManufacturerApacer
Flash storage media
SeriesPV910-M242
Connection (Interface)PCI Express Gen. 3
Flash structureM.2 (NGFF)
Key TypeB + M
Flash type3D TLC
Capacity60 GB, 120 GB, 240 GB, 480 GB, 960 GB
NVMeYes
Temperature sensorYes
TRIMis supported
Flash mode64-layer 3D flash (BiCS3 / B16 / B17), 112/128 Layer 3D Flash
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-40°C to 100°C
DimensionsForm factorM.2
Type2242
InterfacePCI Express 3.0 x2
Width22 mm
Deep42 mm
Height3,88 mm
VibrationVibration7.69 G, 20–2000 Hz
Reference StandardMIL-STD-810G
ShockMeasurement Data50G, 0.5 ms
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Certificates / Conformities
CEYes
RoHS compliantYes
