M.2
// M.2
// 3D TLC
// PCI Express Gen. 4
// 0°C to 70°C
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

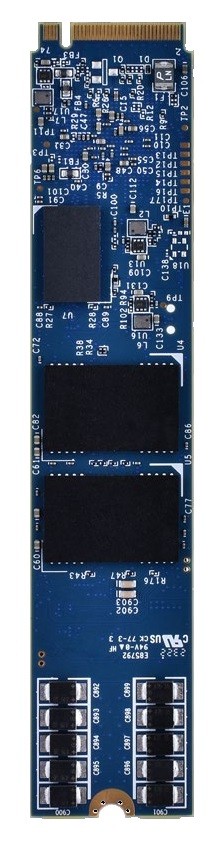

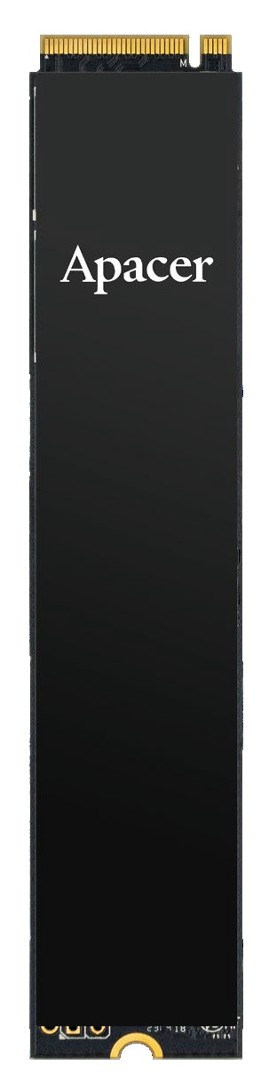

Basic Module: Apacer PV93E-M2110
| General information | ||||
| SKU / Item Number | PV93E-M2110 | |||
| Product Basic Data | ||||
| Manufacturer | Apacer | |||
| Flash storage media | ||||
| Connection (Interface) | PCI Express Gen. 4 | |||
| Flash structure | M.2 (NGFF) | |||
| Key Type | M | |||
| Flash type | 3D TLC | |||
| Capacity | 1.92 TB, 480 GB, 960 GB | |||
| Maximum current draw | 9,45 W | |||
| NVMe | Yes | |||
| Temperature sensor | Yes | |||
| TRIM | is supported | |||
| Advanced Encryption Standard (AES) | Yes | |||
| S.M.A.R.T. | Yes | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Heat Spreader | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0°C to 70°C | ||
| Storage | -55°C to 100°C | |||
| Dimensions | Form factor | M.2 | ||
| Type | 22110 | |||
| Interface | PCI Express 4.0 x4 | |||
| Width | 22 mm | |||
| Deep | 110 mm | |||
| Height | 4,08 mm | |||
| Weight | 12 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
