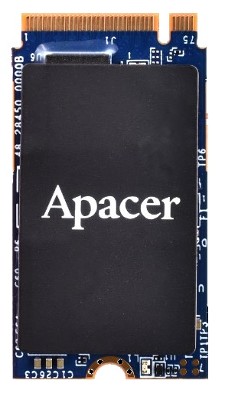

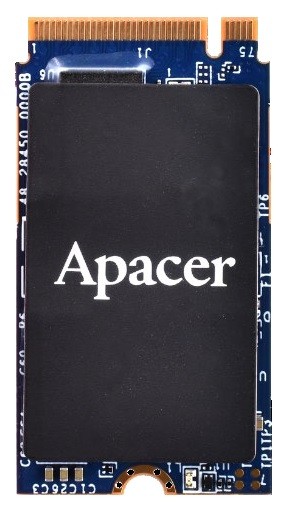

Apacer PV250-M242

B72.255HGU.00176, B72.255HHU.00176, B72.255JGU.00276, B72.255JHU.00176, B72.255KGU.00176, B72.255KHU.00176, B72.255LGU.00176, B72.255LHU.00176, B72.255MGU.00176, B72.255MHU.00176, B72.255NGU.00190, B72.A75HGU.00177, B72.A75HHU.00177, B72.A75JGU.00177, B72.A75JHU.00177, B72.A75KGU.00177, B72.A75KHU.00177, B72.A75LGU.00177, B72.A75LHU.00177, B72.A75MGU.00177, B72.A75MHU.00177, B72.A75NGU.00191

M.2

PRODUCT FEATURES

// M.2
// 3D TLC
// PCI Express Gen. 4
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Apacer PV250-M242

General information
SKU / Item NumberPV250-M242B72.255HGU.00176, B72.255HHU.00176, B72.255JGU.00276, B72.255JHU.00176, B72.255KGU.00176, B72.255KHU.00176, B72.255LGU.00176, B72.255LHU.00176, B72.255MGU.00176, B72.255MHU.00176, B72.255NGU.00190, B72.A75HGU.00177, B72.A75HHU.00177, B72.A75JGU.00177, B72.A75JHU.00177, B72.A75KGU.00177, B72.A75KHU.00177, B72.A75LGU.00177, B72.A75LHU.00177, B72.A75MGU.00177, B72.A75MHU.00177, B72.A75NGU.00191
Product Basic Data
ManufacturerApacer
Flash storage media
Connection (Interface)PCI Express Gen. 4
Flash structureM.2 (NGFF)
Key TypeM
Flash type3D TLC
Capacity1.92 TB, 3.84 TB, 120 GB, 240 GB, 480 GB, 960 GB
NVMeYes
Temperature sensorYes
TRIMis supported
Flash mode112/128 Layer 3D Flash
Advanced Encryption Standard (AES)Yes
S.M.A.R.T.Yes
TCG OpalNo, Yes
Cooling
ImplementationPassive
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 100°C
DimensionsForm factorM.2
Type2242
InterfacePCI Express 4.0 x4
Width22 mm
Deep42 mm
Height4,08 mm
VibrationVibration7.69 G, 20–2000 Hz
Reference StandardMIL-STD-810G
ShockMeasurement Data50G, 0.5 ms
Reference StandardMIL-STD-810G
Weight6 g
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Power Supply
Input voltage3.3V
Certificates / Conformities
CEYes
RoHS compliantYes
