M.2
The product is EOL (End Of Life)!
// M.2
// 3D TLC
// PCI Express Gen. 3
// PT220-M242
// 0°C to 70°C
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

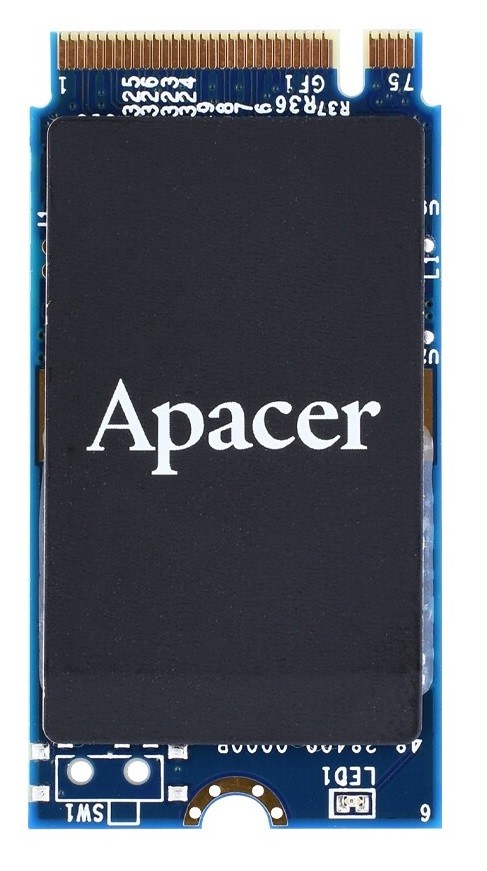

Basic Module: Apacer PT220-M242
| General information | ||||
| SKU / Item Number | PT220-M242 | |||
| Product Basic Data | ||||
| Manufacturer | Apacer | |||
| Flash storage media | ||||
| Series | PT220-M242 | |||
| Connection (Interface) | PCI Express Gen. 3 | |||
| Flash structure | M.2 (NGFF) | |||
| Key Type | M | |||
| Flash type | 3D TLC | |||
| Capacity | 1 TB, 128 GB, 256 GB, 512 GB | |||
| NVMe | Yes | |||
| Performance | Sequential reading | 2.400 MB/s | ||
| Sequential writing | 2.105 MB/s | |||
| Temperature sensor | Yes | |||
| TRIM | is supported | |||
| Advanced Encryption Standard (AES) | Yes | |||
| S.M.A.R.T. | Yes | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0°C to 70°C | ||
| Storage | -55°C to 100°C | |||
| Dimensions | Form factor | M.2 | ||
| Type | 2242 | |||
| Interface | PCI Express 3.0 x 4 | |||
| Width | 22 mm | |||
| Deep | 42 mm | |||
| Height | 4,08 mm | |||
| Vibration | Vibration | 7.69 G, 20–2000 Hz | ||
| Reference Standard | MIL-STD-810G | |||
| Shock | Measurement Data | 50G, 0.5 ms | ||
| Reference Standard | MIL-STD-810G | |||
| MTBF (Mean Time Between Failures) | MTBF at 25°C | 3.000.000 h | ||
| Power Supply | ||||
| Input voltage | 3.3V | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
