M.2
// M.2
// 3D TLC
// PCI Express Generation 5
// 0°C to 70°C
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

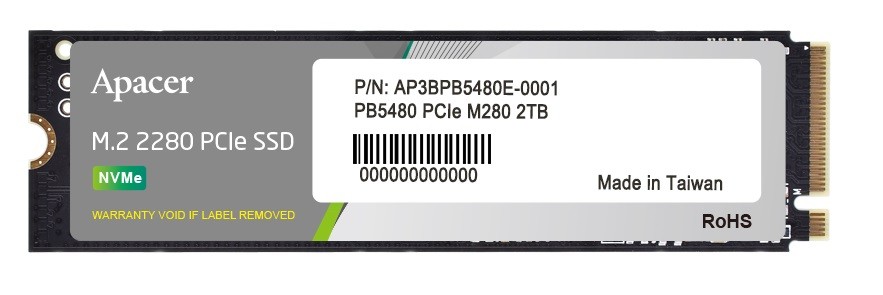

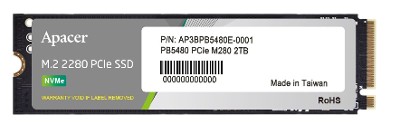

Basic Module: Apacer PB5480
| General information | ||||
| SKU / Item Number | PB5480 | |||
| Product Basic Data | ||||
| Manufacturer | Apacer | |||
| Flash storage media | ||||
| Connection (Interface) | PCI Express Generation 5 | |||
| Flash structure | M.2 (NGFF) | |||
| Key Type | M | |||
| Flash type | 3D TLC | |||
| Capacity | 1 TB, 2 TB | |||
| NVMe | Yes | |||
| Temperature sensor | Yes | |||
| TRIM | is supported | |||
| S.M.A.R.T. | Yes | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0°C to 70°C | ||
| Storage | -40°C to 85°C | |||
| Dimensions | Form factor | M.2 | ||
| Type | 2280 | |||
| Interface | PCI Express 5.0 x 4 | |||
| Width | 22 mm | |||
| Deep | 80 mm | |||
| Height | 2,38 mm | |||
| Vibration | Vibration | 20G, 7-2000Hz, 3 axes | ||
| Shock | Measurement Data | 1500G, 0.5 ms, 3 axes | ||
| Weight | 6 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | UKCA | |||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
