3.5" Mainboards
The product is EOL (End Of Life)!
// 3.5" Industrial Mainboards
// [Intel Atom D2550 | Intel Atom N2600 | Intel Atom N2800]
// Intel NM10
// [2 GB | 4 GB]
// [1 | -] x VGA
// [1 | -] x DVI-I
// 2 x G-LAN
// 4 x USB
// 2 x USB (internal)
// Digital I/O (8-Bit)
// 3 x Mini-PCIe
// Power Supply DC 9 to 24 V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

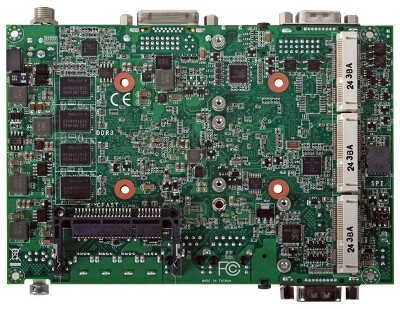

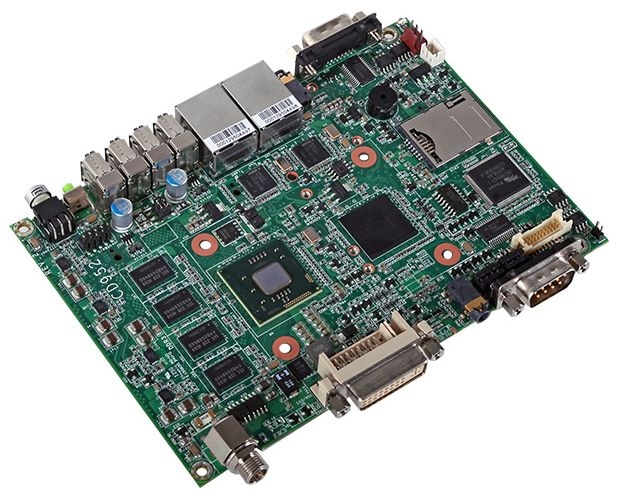

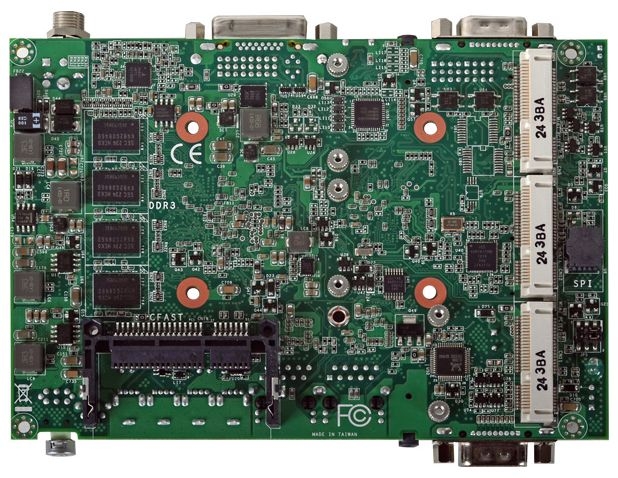

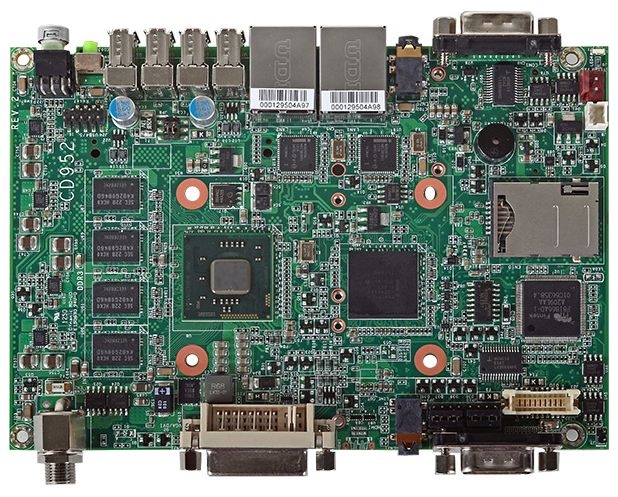

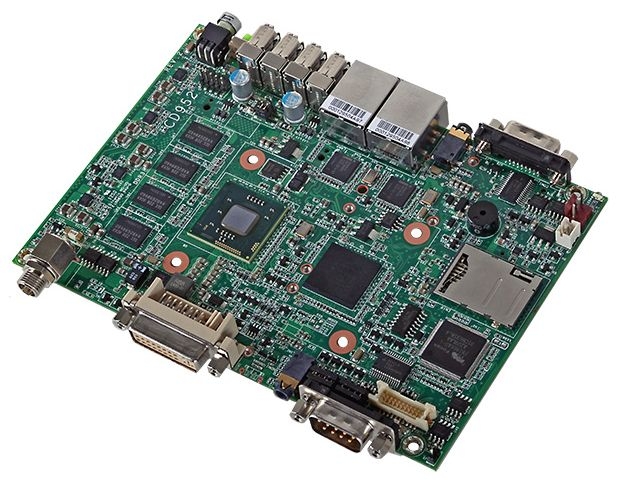

Basic Module: DFI CD952
| General information | ||||
| SKU / Item Number | CD952 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Series | Intel Cedarview | ||
| Number | Intel Atom D2550, Intel Atom N2600, Intel Atom N2800 | |||
| Threads | 2 Pce | |||
| Socket | BGA 559 | |||
| Base frequency | 1,6 GHz, 1,86 GHz | |||
| Cache | 1 MB | |||
| Thermal Design Power (TDP) | 3,5 W, 6,5 W, 10 W | |||
| Chipset | Intel NM10 | |||
| Memory | Internal memory | 2 GB, 4 GB | ||
| BIOS | AMI SPI 16 Mbit | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81866AD-I | |
| Graphics | ||||
| Processor | Intel Graphics Media Accelerator (GMA) 3600, Intel Graphics Media Accelerator (GMA) 3650 | |||
| Performance feature | Hardware decoding | AVC / H.264, MPEG4, VC1 / WMV9 | ||
| VGA | Maximum resolution | 1920 x 1600 at 60 Hz | ||
| DVI | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Extension | ||||
| Mini-PCIe | Half building depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| Full installation depth | Quantity | 2 Pce | ||
| USB support | Yes | |||
| PCIe Interfaces | 3x Mini-PCIe slots | |||
| SIM | PCIe / USB 2.0 Support | 1 Pce, - | ||
| Storage | CFast, mSATA | |||
| Audio | ||||
| Chipset | Realtek ALC886 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel 82574L (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 4 Pce | ||
| Display | VGA | 1 Pce, - | ||
| Micro HDMI | 1 Pce, - | |||
| DVI | DVI-I Signal | 1 Pce, - | ||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Digital I/O | Bits | 8-bit | 1 Pce, - | |
| Chassis Intrusion Detection | Yes | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 24 V | |||
| Connector | DC barrel connector | |||
| Power supply - Input | DC: 9 to 24V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows XP (32/64-bit) | is supported | ||
| Windows 7 (32/64-bit) | is supported | |||
| Supported OS | Windows | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -20° down to 70°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 102 mm | |||
| Deep | 146 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
