3.5" Mainboards
The product is EOL (End Of Life)!
// 3.5" Industrial Mainboards
// [Intel Atom D2550 | Intel Atom N2600 | Intel Atom N2800]
// Intel NM10
// 204-pin SO-DIMM DDR3
// 1 x VGA
// LVDS
// 2 x G-LAN
// 2 x USB
// 4 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

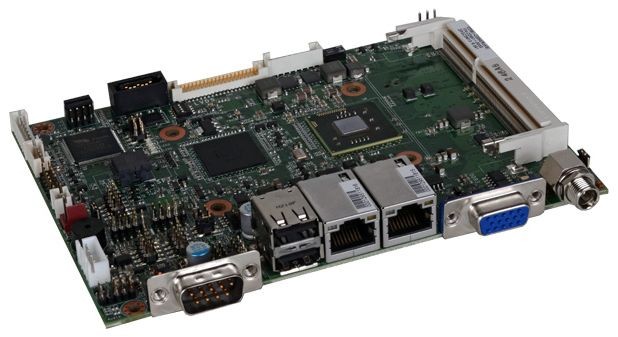

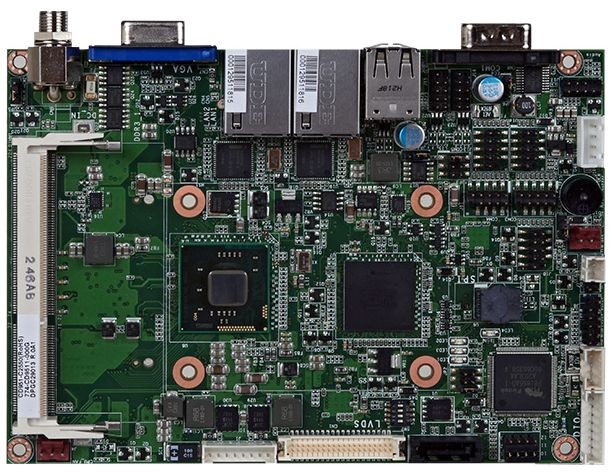

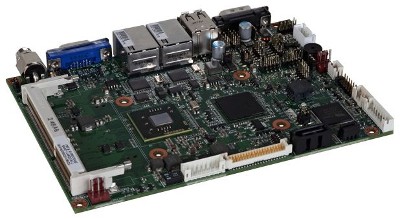

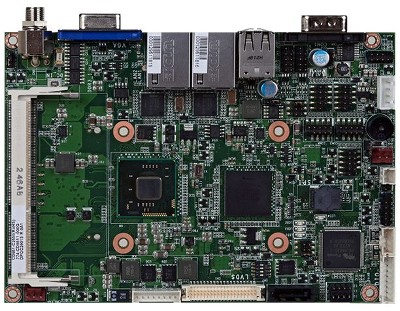

Basic Module: DFI CD951-C
| General information | ||||
| SKU / Item Number | CD951-C | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Series | Intel Cedarview | ||
| Number | Intel Atom D2550, Intel Atom N2600, Intel Atom N2800 | |||
| CPU cores | 2 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 559 | |||
| Base frequency | 1,6 GHz, 1,86 GHz | |||
| Cache | 1 MB | |||
| Thermal Design Power (TDP) | 3,5 W, 6,5 W, 10 W | |||
| Chipset | Intel NM10 | |||
| Memory | Structure | 204-pin SO-DIMM DDR3 | ||
| Frequency | 800 / 1066 MHz, 800 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 2 GB, 4 GB | |||
| BIOS | AMI SPI 16 Mbit | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81866AD-I | |
| Graphics | ||||
| Processor | Intel Graphics Media Accelerator (GMA) 3600, Intel Graphics Media Accelerator (GMA) 3650 | |||
| Performance feature | Support | DirectX 9 | ||
| Hardware decoding | AVC / H.264, MPEG2, VC1 / WMV9 | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| mSATA support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| Storage | CF | |||
| Audio | ||||
| Chipset | Realtek ALC886 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel 82574 (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| Display | VGA | 1 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 4 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 1 Pce | ||
| Display | LCD / Inverter Power | Yes | ||
| LVDS (Low Voltage Differential Signaling) | Dual channel | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Serial ATA | S-ATA R2.0 (3 Gbps, 300 MB/s) | 1 Pce | ||
| Chassis Intrusion Detection | Yes | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 4-pin connector (vertical), DC barrel connector | |||
| Power supply - Input | DC: 12V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows XP (32/64-bit) | partially supported | ||
| Windows 7 (32/64-bit) | is supported | |||
| Supported OS | Windows | |||
| Cooling | ||||
| Implementation | Active (fan cooling), Passive | |||
| Passive | Thermal Management | -, Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 85°C | |||
| Dimensions | Form factor | 3.5" | ||
| Width | 102 mm | |||
| Deep | 146 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
