LGA 1200/115X
The product is EOL (End Of Life)!
// Multi-Sockel: Intel Sockel LGA 1366/1156/1155/775 & AMD Sockel FM1/AM3+/AM3/AM2+/AM2
Sales only to business customers.
Delivery time: upon request

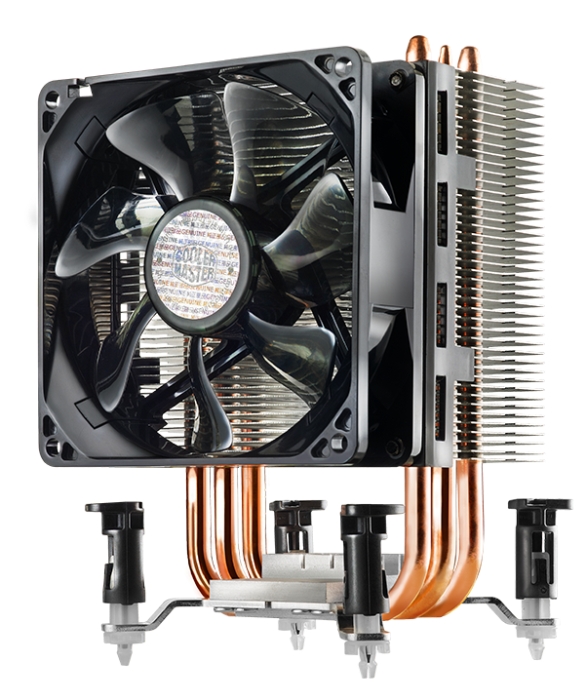

Basic Module: Cooler Master Hyper TX3 EVO
| General information | ||||
| SKU / Item Number | Hyper TX3 EVO | |||
| Product Basic Data | ||||
| Manufacturer | Cooler Master | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Active | Fan | Quantity | 1 Pce | |
| Diameter | 92 mm | |||
| height | 25 mm | |||
| Hot Swap | Yes | |||
| bearing | double ball bearing loaded | |||
| Speed | 2200 rpm | |||
| Tolerance | 10 % | |||
| Air flow (at 100%) | 43 cfm | |||
| Air pressure (at 100%) | 2,63 mmH2O | |||
| Noise Level (at 100%) | 30 dB | |||
| Wires connector | 4 | |||
| Lead Wire Pin Out | Pin 1 (-), Pin 2 (+), Pin 3 (Tachometer / Signal output), Pin 4 (PWM) | |||
| Passive | Heat Pipe | Quantity | 3 Pce | |
| Installation | Push pins | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 4-pin connector (vertical) | |||
| Power supply - Input | DC: 12V | |||
| Mechanical / Environment | ||||
| Dimensions | Form factor | 4 U, rack height | ||
| Width | 79 mm | |||
| Deep | 90 mm | |||
| Height | 136 mm | |||
| Weight | 386 g | |||
| MTBF (Mean Time Between Failures) | MTBF at 25°C | 40.000 h | ||
| Material | Aluminum | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
