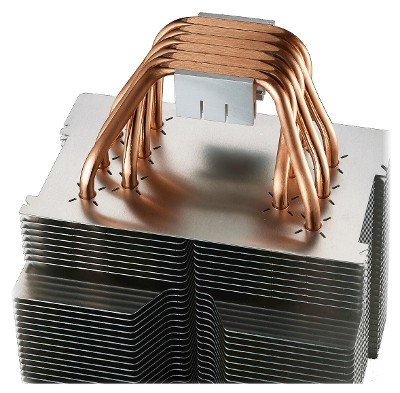

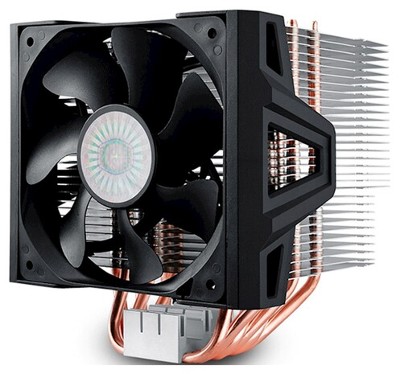

Cooler Master Hyper 612 Ver.2

LGA 1200/115X

PRODUCT FEATURES

// Multi-Sockel: Intel Sockel LGA 2011-3/2011/1366/1156/1155/1150/775 & AMD Sockel FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Cooler Master Hyper 612 Ver.2

General information
	SKU / Item Number			Hyper 612 Ver.2
Product Basic Data
	Manufacturer			Cooler Master
Cooling
	Implementation			Active (fan cooling)
	Active	Fan	Quantity	1 Pce
			Diameter	120 mm
			height	25 mm
			Hot Swap	Yes
			bearing	sliding bearing
			Speed	1300 rpm
			Tolerance	10 %
			Air flow (at 100%)	44 cfm
			Air pressure (at 100%)	1,6 mmH2O
			Noise Level (at 100%)	20 dB
			Wires connector	4
			Power (at 100%)	1 W
	Passive	Heat Pipe	Quantity	6 Pce
			Diameter	6 mm
Power Supply
	Typ (Input)	DC	Range	12V
			Connector	4-pin connector (vertical)
	Power supply - Input			DC: 12V
Mechanical / Environment
	Dimensions	Form factor		4 U, rack height
		Width		102 mm
		Deep		139 mm
		Height		160 mm
	Weight			886 g
	MTBF (Mean Time Between Failures)	MTBF at 45°C		40.000 h
	Material			Aluminum, Copper
