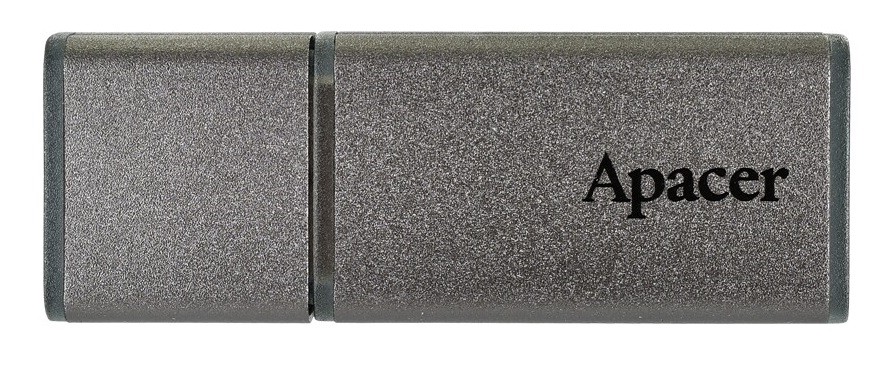

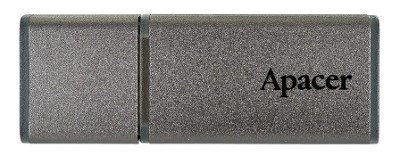

Apacer UV110-UFD1

AN2.112EGG.00118, AN2.112FGG.00118, AN2.112FHG.00118, AN2.112GGG.00118, AN2.112GHG.00118, AN2.112HGG.00118, AN2.112HGG.00331, AN2.112HHG.00118, AN2.112HHG.00231, AN2.112JGG.00118, AN2.112JGG.00431, AN2.112JHG.00118, AN2.112JHG.00231, AN2.112KGG.00131, AN2.112KHG.00131

USB

PRODUCT FEATURES

// USB drive
// 3D TLC
// USB 3.2 Gen 1
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Apacer UV110-UFD1

General information
SKU / Item NumberUV110-UFD1AN2.112HGG.00331, AN2.112HHG.00231, AN2.112JGG.00431, AN2.112JHG.00231, AN2.112KGG.00131, AN2.112KHG.00131, AN2.112EGG.00118, AN2.112FGG.00118, AN2.112FHG.00118, AN2.112GGG.00118, AN2.112GHG.00118, AN2.112HGG.00118, AN2.112HHG.00118, AN2.112JGG.00118, AN2.112JHG.00118
Product Basic Data
ManufacturerApacer
Flash storage media
Connection (Interface)USB 3.2 Gen 1
Flash structureUSB / USB EDC
Flash type3D TLC
Capacity16 GB, 32 GB, 64 GB, 128 GB, 256 GB, 512 GB
Flash mode64-layer 3D flash (BiCS3 / B16 / B17), 112/128 Layer 3D Flash
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 100°C
DimensionsForm factorUSB drive
InterfaceUSB 3.2 Gen 1
Width46,85 mm
Deep17,2 mm
Height7,7 mm
VibrationVibration7.69 G, 20–2000 Hz
Reference StandardMIL-STD-810G
ShockMeasurement Data1500G, 0.5 ms, 3 axes
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
ColorSilver
Certificates / Conformities
CEYes
RoHS compliantYes
