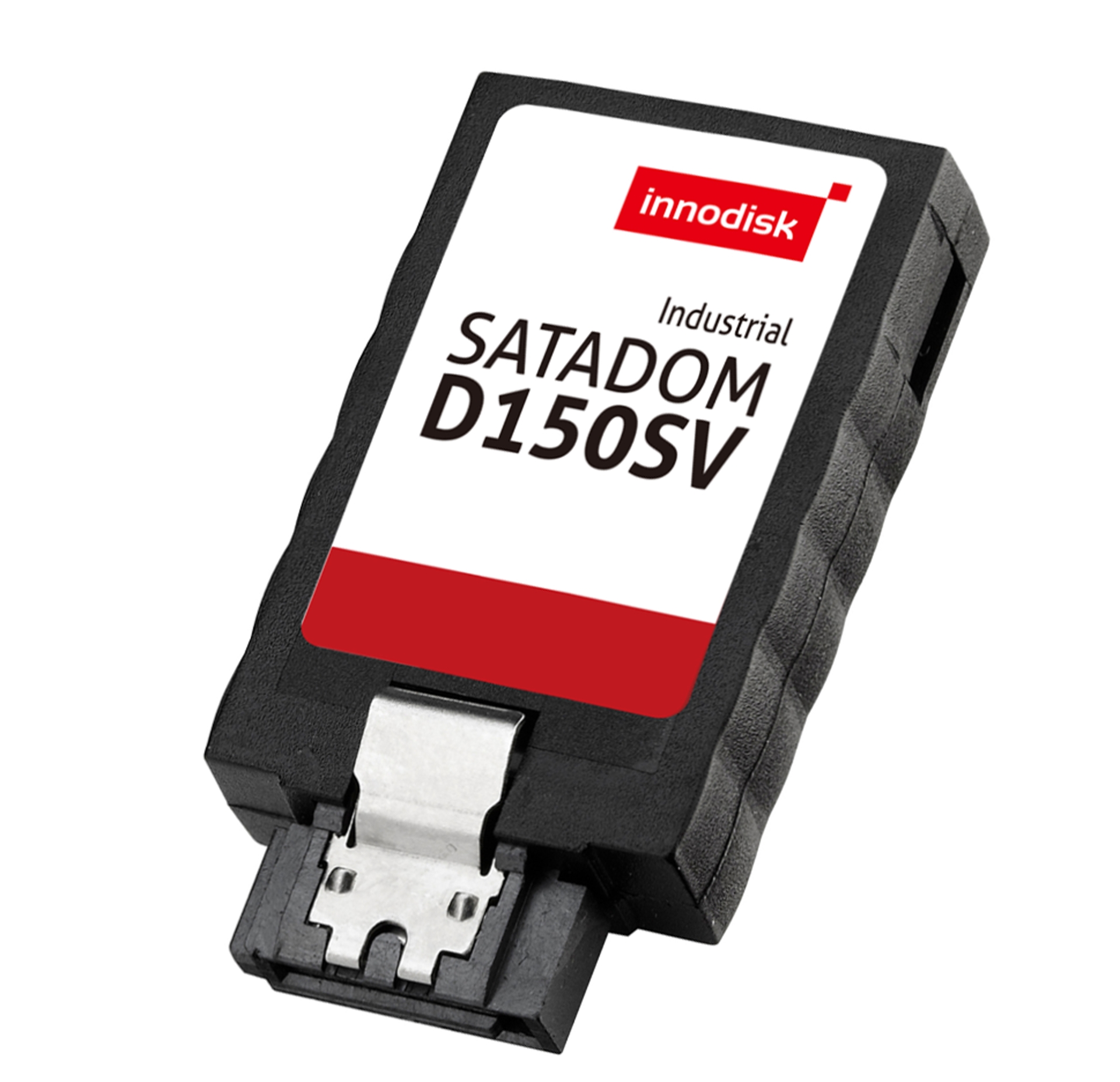

Innodisk SATADOM-D150SV

DES9-01GJ30AC2SBF, DES9-01GJ30AW2SBF, DES9-02GJ30AC2SBF, DES9-02GJ30AW2SBF, DES9-04GJ30AC2SBF, DES9-04GJ30AW2SBF, DES9-08GJ30AC2SBF, DES9-08GJ30AW2SBF, DES9-128J30AC2SBF, DES9-128J30AW2SBF, DES9-16GJ30AC2SBF, DES9-16GJ30AW2SBF, DES9-256J30AC2SBF, DES9-256J30AW2SBF, DES9-512J30AC2SBF, DES9-512J30AW2SBF

SATADOM

The product is EOL (End Of Life)!

PRODUCT FEATURES

// SATADOM
// SLC
// SATA 2
// D150
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk SATADOM-D150SV

General information
SKU / Item NumberSATADOM-D150SVDES9-01GJ30AC2SBF, DES9-01GJ30AW2SBF, DES9-02GJ30AC2SBF, DES9-02GJ30AW2SBF, DES9-04GJ30AC2SBF, DES9-04GJ30AW2SBF, DES9-08GJ30AC2SBF, DES9-08GJ30AW2SBF, DES9-128J30AC2SBF, DES9-128J30AW2SBF, DES9-16GJ30AC2SBF, DES9-16GJ30AW2SBF, DES9-256J30AC2SBF, DES9-256J30AW2SBF, DES9-512J30AC2SBF, DES9-512J30AW2SBF
Product Basic Data
ManufacturerInnodisk
Flash storage media
SeriesD150
Connection (Interface)SATA 2
Flash structureSATADOM
Flash typeSLC
chip enclosureTSOP 2
Write/Erase cycles (P/E limit)100000
Capacity1 GB, 2 GB, 4 GB, 8 GB, 16 GB, 128 MB, 256 MB, 512 MB
ControllerID101
Channel1
7-pinYes
PerformanceFlash chipKioxia (Toshiba)
Sequential reading21 MB/s, 23 MB/s, 24 MB/s, 31 MB/s, 35 MB/s
Sequential writing6 MB/s, 9 MB/s, 18 MB/s, 31 MB/s
Temperature sensorYes
Hardware Write ProtectionYes
Software write protectionYes
Quick EraseYes
Flash modeSynchronous NAND
ATA SecurityYes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 95°C
Relative humidityStorage10 to 95%, non-condensing
DimensionsForm factorSATADOM
Width21 mm
Deep40 mm
Height8 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelcordia SR - 332 GB
Certificates / Conformities
CEYes
FCCClass BYes
Additional certificates / compliance approvalsEN 55024, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge Protection), EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
RoHS compliantYes
