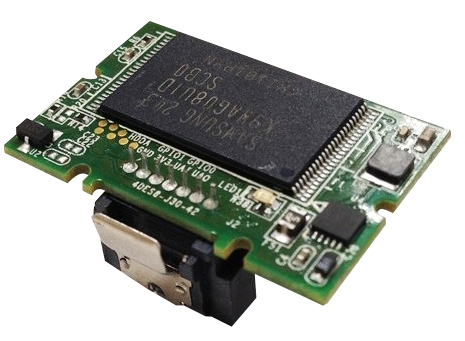

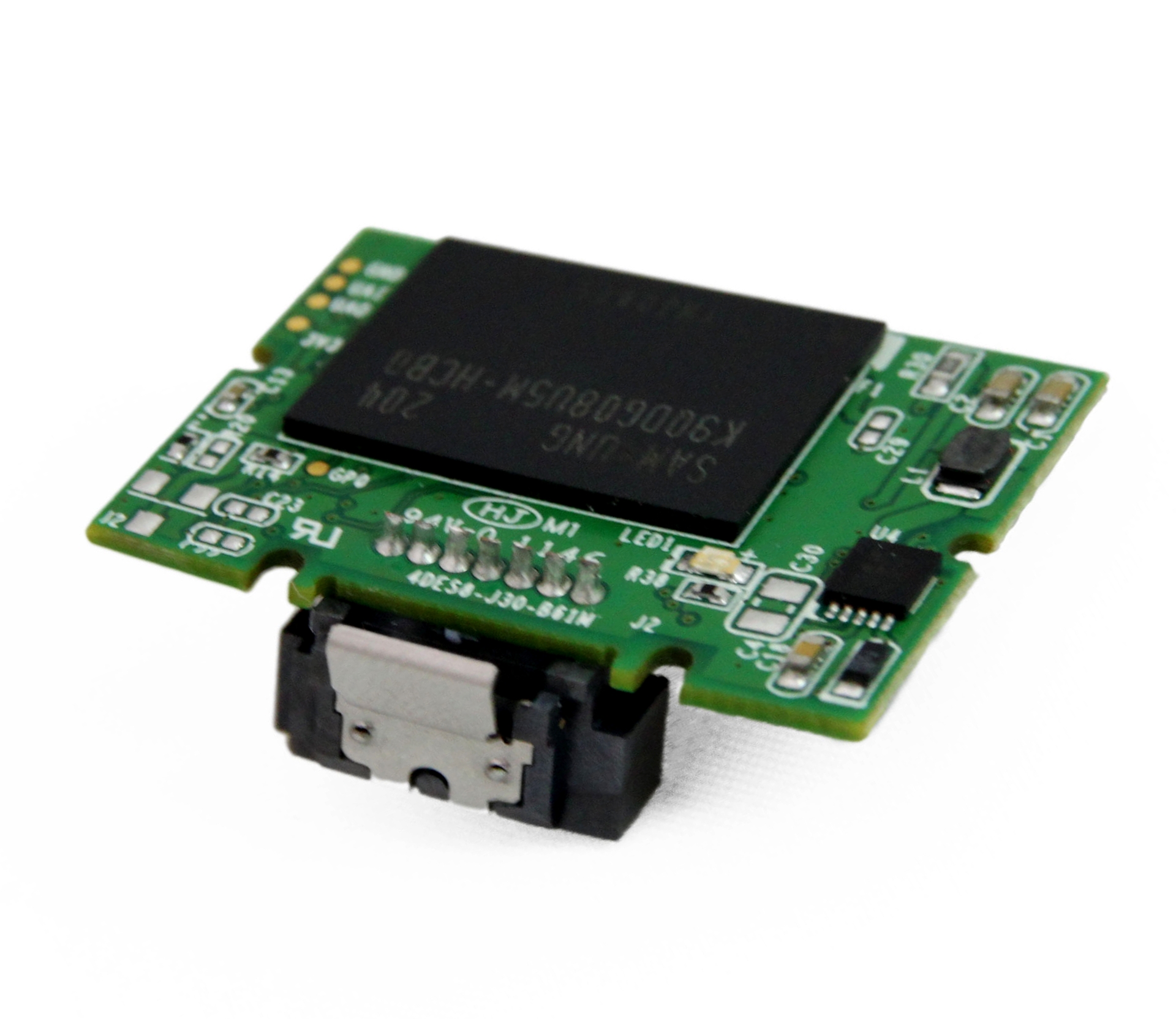

Innodisk SATADOM-D150SH-L

DES8B-01GJ30AC2SBF, DES8B-01GJ30AW2SBF, DES8B-02GJ30AC2SBF, DES8B-02GJ30AW2SBF, DES8B-04GJ30AC2SBF, DES8B-04GJ30AW2SBF, DES8B-08GJ30AC2SBF, DES8B-08GJ30AW2SBF, DES8B-128J30AC2SBF, DES8B-128J30AW2SBF, DES8B-16GJ30AC2SBF, DES8B-16GJ30AW2SBF, DES8B-256J30AC2SBF, DES8B-256J30AW2SBF, DES8B-512J30AC2SBF, DES8B-512J30AW2SBF, DES8D-01GJ30AC2SBF, DES8D-01GJ30AW2SBF, DES8D-02GJ30AC2SBF, DES8D-02GJ30AW2SBF, DES8D-04GJ30AC2SBF, DES8D-04GJ30AW2SBF, DES8D-08GJ30AC2SBF, DES8D-08GJ30AW2SBF, DES8D-128J30AC2SBF, DES8D-128J30AW2SBF, DES8D-16GJ30AC2SBF, DES8D-16GJ30AW2SBF, DES8D-256J30AC2SBF, DES8D-256J30AW2SBF, DES8D-512J30AC2SBF, DES8D-512J30AW2SBF

SATADOM

The product is EOL (End Of Life)!

PRODUCT FEATURES

// SATADOM
// SLC
// SATA 2
// D150
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk SATADOM-D150SH-L

General information
SKU / Item NumberSATADOM-D150SH-LDES8B-01GJ30AC2SBF, DES8B-01GJ30AW2SBF, DES8B-02GJ30AC2SBF, DES8B-02GJ30AW2SBF, DES8B-04GJ30AC2SBF, DES8B-04GJ30AW2SBF, DES8B-08GJ30AC2SBF, DES8B-08GJ30AW2SBF, DES8B-128J30AC2SBF, DES8B-128J30AW2SBF, DES8B-16GJ30AC2SBF, DES8B-16GJ30AW2SBF, DES8B-256J30AC2SBF, DES8B-256J30AW2SBF, DES8B-512J30AC2SBF, DES8B-512J30AW2SBF, DES8D-01GJ30AC2SBF, DES8D-01GJ30AW2SBF, DES8D-02GJ30AC2SBF, DES8D-02GJ30AW2SBF, DES8D-04GJ30AC2SBF, DES8D-04GJ30AW2SBF, DES8D-08GJ30AC2SBF, DES8D-08GJ30AW2SBF, DES8D-128J30AC2SBF, DES8D-128J30AW2SBF, DES8D-16GJ30AC2SBF, DES8D-16GJ30AW2SBF, DES8D-256J30AC2SBF, DES8D-256J30AW2SBF, DES8D-512J30AC2SBF, DES8D-512J30AW2SBF
Product Basic Data
ManufacturerInnodisk
Flash storage media
SeriesD150
Connection (Interface)SATA 2
Flash structureSATADOM
Flash typeSLC
chip enclosureTSOP 2
Write/Erase cycles (P/E limit)100000
Capacity1 GB, 2 GB, 4 GB, 8 GB, 16 GB, 128 MB, 256 MB, 512 MB
ControllerID101
Channel1
7-pinYes
PerformanceFlash chipKioxia (Toshiba)
Sequential reading23 MB/s, 24 MB/s, 31 MB/s, 35 MB/s
Sequential writing9 MB/s, 18 MB/s, 31 MB/s
Temperature sensorYes
Hardware Write ProtectionYes
Software write protectionYes
Quick EraseYes
Flash modeAsynchronous NAND
ATA SecurityYes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 95°C
Relative humidityStorage10 to 95%, non-condensing
DimensionsForm factorSATADOM
Width20 mm
Deep30 mm
Height10 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelcordia SR - 332 GB
Mounting optionSpacer Hole
Certificates / Conformities
CEYes
FCCClass BYes
Additional certificates / compliance approvalsEN 55022, EN 55024, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT)
RoHS compliantYes
