mSATA
// mSATA
// 3D TLC
// SATA 3
// 0°C to 70°C | -40°C to 85°C
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

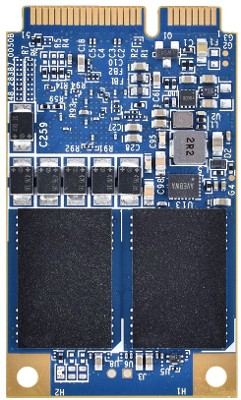

Basic Module: Apacer SH25P-300
| General information | ||||
| SKU / Item Number | SH25P-300 | |||
| Product Basic Data | ||||
| Manufacturer | Apacer | |||
| Flash storage media | ||||
| Connection (Interface) | SATA 3 | |||
| Flash structure | mSATA | |||
| Flash type | 3D TLC | |||
| Capacity | 40 GB, 80 GB, 160 GB, 320 GB, 640 GB | |||
| Temperature sensor | Yes | |||
| ATA Security | Yes | |||
| Advanced Encryption Standard (AES) | Yes | |||
| S.M.A.R.T. | Yes | |||
| DEVSLP mode | Yes (Power consumption > 3 mW) | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0°C to 70°C, -40°C to 85°C | ||
| Storage | -55°C to 100°C | |||
| Dimensions | Form factor | mSATA | ||
| Interface | SATA III | |||
| Width | 29,85 mm | |||
| Deep | 50,8 mm | |||
| Height | 4,85 mm | |||
| Vibration | Vibration | 7.69 G, 20–2000 Hz | ||
| Reference Standard | MIL-STD-810G | |||
| Shock | Measurement Data | 5G, half sine wave, 11 ms duration | ||
| Reference Standard | MIL-STD-810G | |||
| Weight | 7 g | |||
| MTBF (Mean Time Between Failures) | MTBF at 25°C | 3.000.000 h | ||
| Power Supply | ||||
| Input voltage | 3.3V | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
