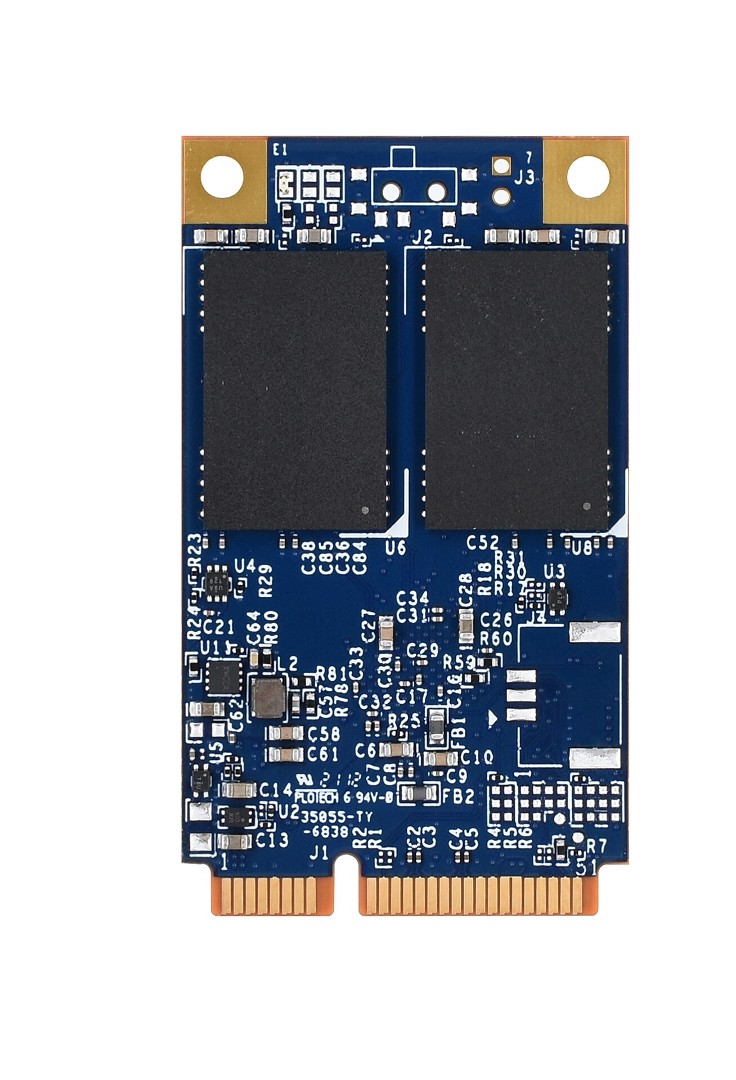

Apacer SH250-300

A72.259FYA.0019D, A72.259FZA.0019D, A72.259GYA.0019D, A72.259GZA.0019D, A72.259HYA.0019D, A72.259HYA.002F8, A72.259HZA.0019D, A72.259HZA.002F8, A72.259JYA.0019D, A72.259JYA.002F8, A72.259JZA.0019D, A72.259JZA.002F8, A72.259KYA.0019D, A72.259KYA.002F8, A72.259KZA.0019D, A72.259KZA.002F8, A72.259LYA.001F8, A72.259LZA.001F8, A72.259MYA.001F8, A72.259MZA.001F8, A72.259FYA.001H8, A72.259FZA.001H8, A72.259GYA.001H8, A72.259GZA.001H8, A72.259HYA.001H8, A72.259HZA.001H8, A72.259JYA.001H8, A72.259JZA.001H8, A72.259KYA.001H8, A72.259KZA.001H8

mSATA

PRODUCT FEATURES

// mSATA
// 3D TLC
// SATA 3
// SH250-300
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Apacer SH250-300

General information
SKU / Item NumberSH250-300A72.259HYA.002F8, A72.259HZA.002F8, A72.259JYA.002F8, A72.259JZA.002F8, A72.259KYA.002F8, A72.259KZA.002F8, A72.259LYA.001F8, A72.259LZA.001F8, A72.259MYA.001F8, A72.259MZA.001F8, A72.259FYA.001H8, A72.259FZA.001H8, A72.259GYA.001H8, A72.259GZA.001H8, A72.259HYA.001H8, A72.259HZA.001H8, A72.259JYA.001H8, A72.259JZA.001H8, A72.259KYA.001H8, A72.259KZA.001H8, A72.259FYA.0019D, A72.259FZA.0019D, A72.259GYA.0019D, A72.259GZA.0019D, A72.259HYA.0019D, A72.259HZA.0019D, A72.259JYA.0019D, A72.259JZA.0019D, A72.259KYA.0019D, A72.259KZA.0019D
Product Basic Data
ManufacturerApacer
Flash storage media
SeriesSH250-300
Connection (Interface)SATA 3
Flash structuremSATA
Flash type3D TLC
Write/Erase cycles (P/E limit)100000
Capacity10 GB, 20 GB, 40 GB, 80 GB, 160 GB, 320 GB, 640 GB
PerformanceSequential reading550 MB/s
Sequential writing485 MB/s
4KB random (QD32) read56000 IOPS
4KB Random (QD32) Write63000 IOPS
Temperature sensorYes
Flash mode64-layer 3D flash (BiCS3 / B16 / B17), 112/128 Layer 3D Flash
ATA SecurityYes
Advanced Encryption Standard (AES)Yes
S.M.A.R.T.Yes
DEVSLP modeYes (Power consumption > 3 mW)
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 100°C
DimensionsForm factormSATA
InterfaceSATA III
Width29,85 mm
Deep50,8 mm
Height4,85 mm
VibrationVibration7.69 G, 20–2000 Hz
Reference StandardMIL-STD-810G
ShockMeasurement Data5G, half sine wave, 11 ms duration
Reference StandardMIL-STD-810G
Weight7 g
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Power Supply
Input voltage3.3V
Certificates / Conformities
CEYes
RoHS compliantYes
