MicroSD
// microSD
// 3D TLC
// -25°C to 85°C | -40°C to 85°C
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

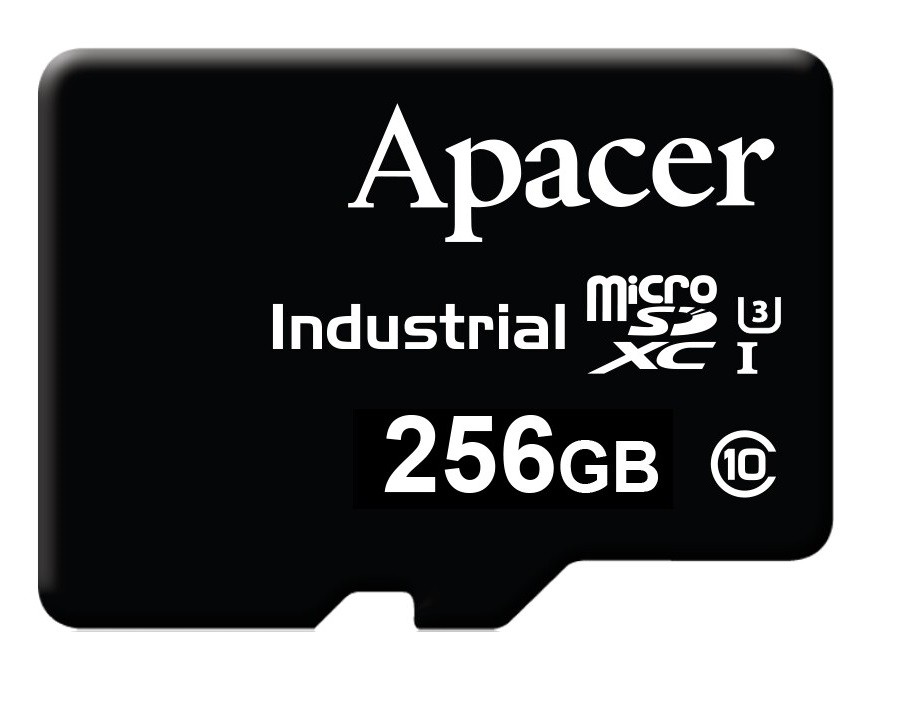

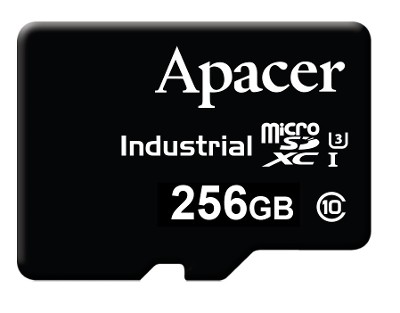

Basic Module: Apacer CV110-MSD
| General information | ||||
| SKU / Item Number | CV110-MSD | |||
| Product Basic Data | ||||
| Manufacturer | Apacer | |||
| Flash storage media | ||||
| Flash type | 3D TLC | |||
| Write/Erase cycles (P/E limit) | 30000 | |||
| Capacity | 32 GB, 64 GB, 128 GB, 256 GB | |||
| ECC (Error-Correcting Code) | Supported (24 bits per 1 KB) | |||
| Performance | Sequential reading | 90 MB/s | ||
| Sequential writing | 34 MB/s | |||
| 4KB Random (QD32) Write | 1300 IOPS | |||
| Flash mode | 64-layer 3D flash (BiCS3 / B16 / B17) | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -25°C to 85°C, -40°C to 85°C | ||
| Storage | -40°C to 85°C | |||
| Dimensions | Form factor | microSD | ||
| Width | 15 mm | |||
| Deep | 11 mm | |||
| Height | 1 mm | |||
| Vibration | Vibration | 20G, 7-2000Hz, 3 axes | ||
| Shock | Measurement Data | 1500G, 0.5 ms, 3 axes | ||
| MTBF (Mean Time Between Failures) | MTBF at 25°C | 3.000.000 h | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
