M.2
// M.2
// MLC (Multi-Layer Cell)
// SATA 3
// SU210-M280
// 0°C to 70°C | -40°C to 85°C
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

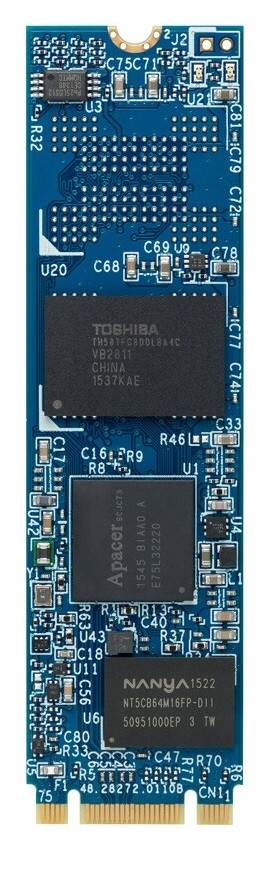

Basic Module: Apacer SU210-M280
| General information | ||||
| SKU / Item Number | SU210-M280 | |||
| Product Basic Data | ||||
| Manufacturer | Apacer | |||
| Flash storage media | ||||
| Series | SU210-M280 | |||
| Connection (Interface) | SATA 3 | |||
| Flash structure | M.2 (NGFF) | |||
| Key Type | B + M | |||
| Flash type | MLC (Multi-Layer Cell) | |||
| Capacity | 32 GB, 64 GB, 128 GB, 256 GB | |||
| ECC (Error-Correcting Code) | Supported (24 bits per 1 KB) | |||
| Temperature sensor | Yes | |||
| TRIM | is supported | |||
| External DRAM buffer | is supported | |||
| Flash mode | 112/128 Layer 3D Flash | |||
| ATA Security | Yes | |||
| S.M.A.R.T. | Yes | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0°C to 70°C, -40°C to 85°C | ||
| Storage | -40°C to 100°C | |||
| Dimensions | Form factor | M.2 | ||
| Type | 2280 | |||
| Interface | SATA III | |||
| Width | 22 mm | |||
| Deep | 80 mm | |||
| Height | 2,23 mm, 3,58 mm | |||
| Vibration | Vibration | 7.69 G, 20–2000 Hz | ||
| Reference Standard | MIL-STD-810G | |||
| Shock | Measurement Data | 50G, 0.5 ms | ||
| Reference Standard | MIL-STD-810G | |||
| MTBF (Mean Time Between Failures) | MTBF at 25°C | 1.000.000 h | ||
| Power Supply | ||||
| Input voltage | 3.3V | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
