M.2
// M.2
// 3D MLC
// SATA 3
// SM210-M280
// 0°C to 70°C | -40°C to 85°C
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

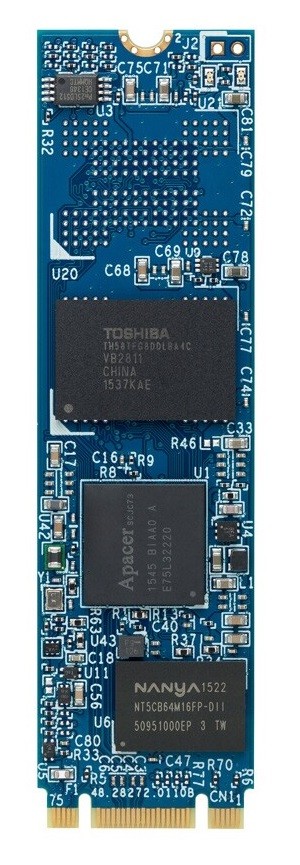

Basic Module: Apacer SM210-M280
| General information | ||||
| SKU / Item Number | SM210-M280 | |||
| Product Basic Data | ||||
| Manufacturer | Apacer | |||
| Flash storage media | ||||
| Series | SM210-M280 | |||
| Connection (Interface) | SATA 3 | |||
| Flash structure | M.2 (NGFF) | |||
| Key Type | B + M | |||
| Flash type | 3D MLC | |||
| Capacity | 32 GB, 64 GB, 128 GB, 256 GB, 512 GB | |||
| ECC (Error-Correcting Code) | Supported (24 bits per 1 KB) | |||
| Performance | Sequential reading | 510 MB/s | ||
| Sequential writing | 475 MB/s | |||
| 4KB Random (QD32) Write | 45000 IOPS | |||
| TRIM | is supported | |||
| External DRAM buffer | is supported | |||
| ATA Security | Yes | |||
| S.M.A.R.T. | Yes | |||
| Customized | einfache Seite | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0°C to 70°C, -40°C to 85°C | ||
| Storage | -40°C to 100°C | |||
| Dimensions | Form factor | M.2 | ||
| Type | 2280 | |||
| Interface | SATA III | |||
| Width | 22 mm | |||
| Deep | 80 mm | |||
| Height | 2,23 mm, 3,58 mm | |||
| Vibration | Vibration | 7.69 G, 20–2000 Hz | ||
| Reference Standard | MIL-STD-810G | |||
| Shock | Measurement Data | 50G, 0.5 ms | ||
| Reference Standard | MIL-STD-810G | |||
| MTBF (Mean Time Between Failures) | MTBF at 25°C | 1.000.000 h | ||
| Calculation model | Telcordia SR-332, Issue 3 | |||
| Power Supply | ||||
| Input voltage | 3.3V | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
