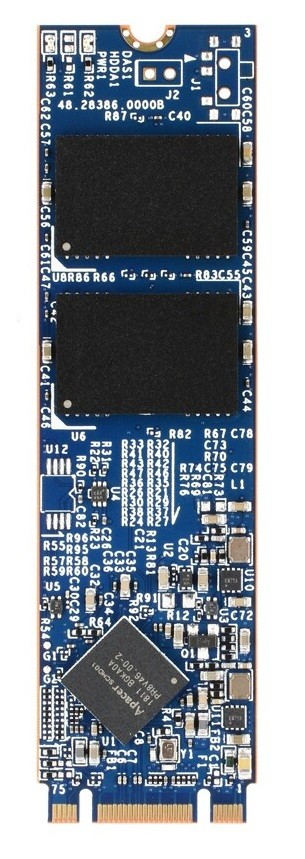

Apacer SH250-M280

A52.259FYA.001H8, A52.259FZA.001H8, A52.259GYA.001H8, A52.259GZA.001H8, A52.259HYA.001H8, A52.259HYA.003F8, A52.259HZA.001H8, A52.259HZA.003F8, A52.259JYA.001H8, A52.259JYA.003F8, A52.259JZA.001H8, A52.259JZA.003F8, A52.259KYA.001H8, A52.259KYA.003F8, A52.259KZA.001H8, A52.259KZA.003F8, A52.259LYB.001H8, A52.259LYB.003F8, A52.259LZB.001H8, A52.259LZB.003F8, A52.259MYB.001F8, A52.259MZB.001F8

M.2

PRODUCT FEATURES

// M.2
// 3D TLC
// SATA 3
// SH250-M280
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Apacer SH250-M280

General information
SKU / Item NumberSH250-M280A52.259HYA.003F8, A52.259HZA.003F8, A52.259JYA.003F8, A52.259JZA.003F8, A52.259KYA.003F8, A52.259KZA.003F8, A52.259LYB.003F8, A52.259LZB.003F8, A52.259MYB.001F8, A52.259MZB.001F8, A52.259FYA.001H8, A52.259FZA.001H8, A52.259GYA.001H8, A52.259GZA.001H8, A52.259HYA.001H8, A52.259HZA.001H8, A52.259JYA.001H8, A52.259JZA.001H8, A52.259KYA.001H8, A52.259KZA.001H8, A52.259LYB.001H8, A52.259LZB.001H8
Product Basic Data
ManufacturerApacer
Flash storage media
SeriesSH250-M280
Connection (Interface)SATA 3
Flash structureM.2 (NGFF)
Key TypeB + M
Flash type3D TLC
Write/Erase cycles (P/E limit)100000
Capacity10 GB, 20 GB, 40 GB, 80 GB, 160 GB, 320 GB, 640 GB
ECC (Error-Correcting Code)Supported (24 bits per 1 KB)
PerformanceSequential reading550 MB/s
Sequential writing485 MB/s
4KB Random (QD32) Write63000 IOPS
Temperature sensorYes
TRIMis supported
Flash mode64-layer 3D flash (BiCS3 / B16 / B17), 112/128 Layer 3D Flash
ATA SecurityYes
Advanced Encryption Standard (AES)Yes
S.M.A.R.T.Yes
DEVSLP modeYes (Power consumption > 3 mW)
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 100°C
DimensionsForm factorM.2
Type2280
InterfaceSATA III
Width22 mm
Deep80 mm
Height3,8 mm
VibrationVibration7.69 G, 20–2000 Hz
Reference StandardMIL-STD-810G
ShockMeasurement Data50G, 0.5 ms
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Certificates / Conformities
CEYes
RoHS compliantYes
