CFexpress
// CFexpress
// 3D TLC
// PCI Express Gen. 3
// 0°C to 70°C | -40°C to 85°C
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

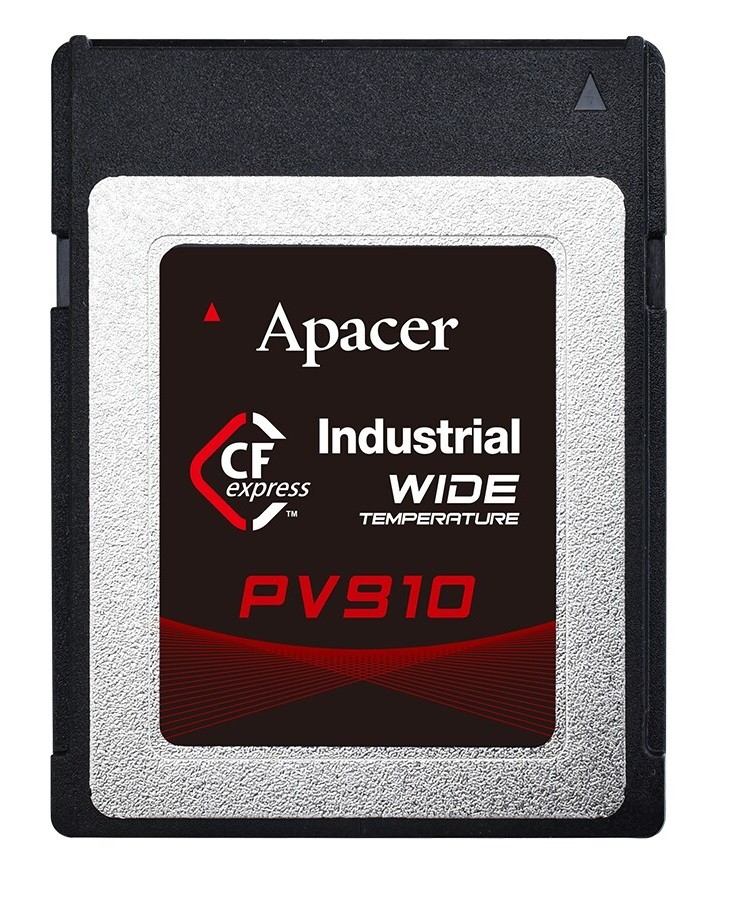

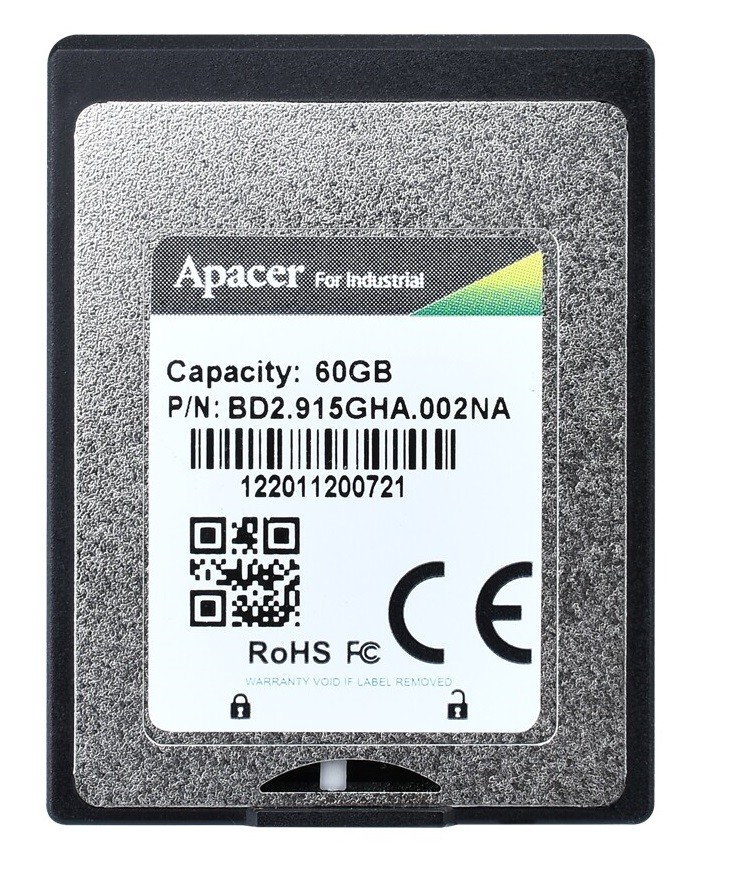

Basic Module: Apacer PV910-CFX
| General information | ||||
| SKU / Item Number | PV910-CFX | |||
| Product Basic Data | ||||
| Manufacturer | Apacer | |||
| Flash storage media | ||||
| Connection (Interface) | PCI Express Gen. 3 | |||
| Flash structure | CFexpress | |||
| Flash type | 3D TLC | |||
| Capacity | 120 GB, 240 GB, 480 GB, 960 GB | |||
| NVMe | Yes | |||
| Performance | Sequential reading | 1.775 MB/s | ||
| Sequential writing | 1.255 MB/s | |||
| 4KB Random (QD32) Write | 131000 IOPS | |||
| Temperature sensor | Yes | |||
| Flash mode | 112/128 Layer 3D Flash | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0°C to 70°C, -40°C to 85°C | ||
| Storage | -40°C to 100°C | |||
| Dimensions | Form factor | CFexpress | ||
| Interface | PCI Express 3.0 x2 | |||
| Width | 29,6 mm | |||
| Deep | 38,5 mm | |||
| Height | 3,8 mm | |||
| Vibration | Vibration | 7.69 G, 20–2000 Hz | ||
| Reference Standard | MIL-STD-810G | |||
| Shock | Measurement Data | 1500G, 0.5 ms, 3 axes | ||
| MTBF (Mean Time Between Failures) | MTBF at 25°C | 3.000.000 h | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
