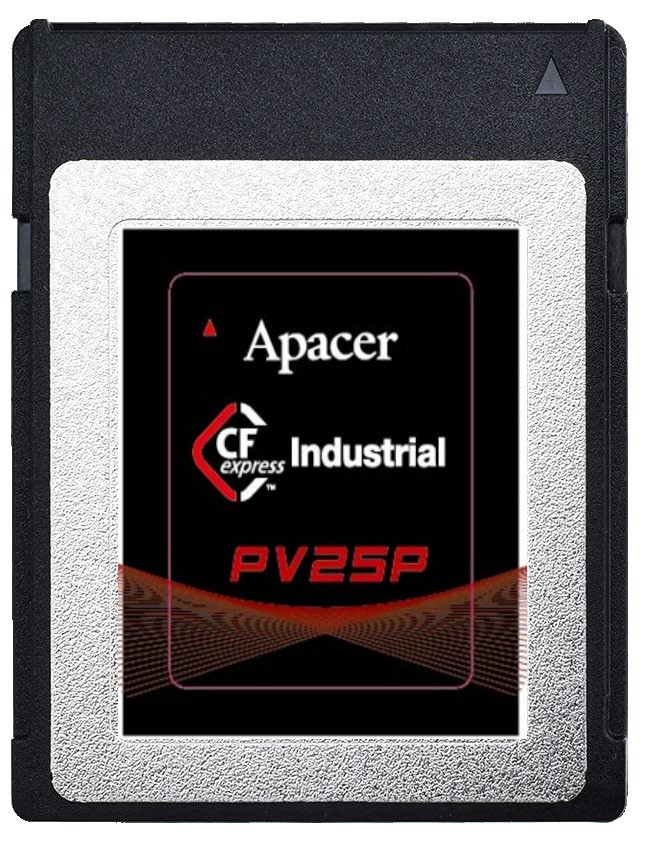

Apacer PV25P-CFX

BD2.P35JGA.00111, BD2.P35JHA.00111, BD2.P35KGA.00111, BD2.P35KHA.00111, BD2.P35LGA.00111, BD2.P35LHA.00111

CFexpress

PRODUCT FEATURES

// CFexpress
// 3D TLC
// PCI Express Gen. 4
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Apacer PV25P-CFX

General information
SKU / Item NumberPV25P-CFXBD2.P35JGA.00111, BD2.P35JHA.00111, BD2.P35KGA.00111, BD2.P35KHA.00111, BD2.P35LGA.00111, BD2.P35LHA.00111
Product Basic Data
ManufacturerApacer
Flash storage media
Connection (Interface)PCI Express Gen. 4
Flash structureCFexpress
Flash type3D TLC
Capacity240 GB, 480 GB, 960 GB
NVMeYes
PerformanceSequential reading3.740 MB/s
Sequential writing2.940 MB/s
4KB random (QD32) read275000 IOPS
4KB Random (QD32) Write484000 IOPS
Temperature sensorYes
TRIMis supported
Flash mode112/128 Layer 3D Flash
Advanced Encryption Standard (AES)Yes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 100°C
DimensionsForm factorCFexpress
Width29,6 mm
Deep38,5 mm
Height3,8 mm
VibrationVibration7.69 G, 20–2000 Hz
Reference StandardMIL-STD-810G
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Weight6 g
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Certificates / Conformities
CEYes
RoHS compliantYes
