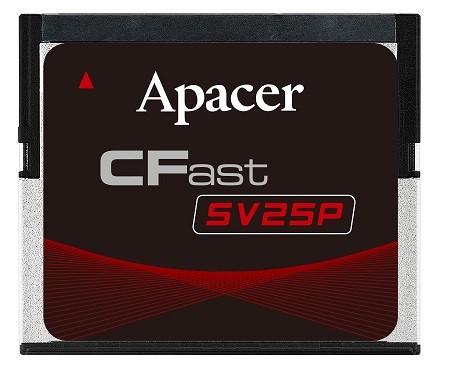

Apacer SV25P-CFast

AA2.P15HGA.001DT, AA2.P15HGB.001DT, AA2.P15HHA.001EH, AA2.P15HHB.001EH, AA2.P15JGA.001DT, AA2.P15JGB.001DT, AA2.P15JHA.001EH, AA2.P15JHB.001EH, AA2.P15KGA.001DT, AA2.P15KGB.001DT, AA2.P15KHA.001EH, AA2.P15KHB.001EH, AA2.P15LGA.001DT, AA2.P15LGB.001DT, AA2.P15LHA.001EH, AA2.P15LHB.001EH

CFast

PRODUCT FEATURES

// CFast
// 3D TLC
// SATA 3
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Apacer SV25P-CFast

General information
SKU / Item NumberSV25P-CFastAA2.P15HGA.001DT, AA2.P15HGB.001DT, AA2.P15HHA.001EH, AA2.P15HHB.001EH, AA2.P15JGA.001DT, AA2.P15JGB.001DT, AA2.P15JHA.001EH, AA2.P15JHB.001EH, AA2.P15KGA.001DT, AA2.P15KGB.001DT, AA2.P15KHA.001EH, AA2.P15KHB.001EH, AA2.P15LGA.001DT, AA2.P15LGB.001DT, AA2.P15LHA.001EH, AA2.P15LHB.001EH
Product Basic Data
ManufacturerApacer
Flash storage media
Connection (Interface)SATA 3
Flash structureCFast
Flash type3D TLC
Capacity120 GB, 240 GB, 480 GB, 960 GB
ECC (Error-Correcting Code)Supported (24 bits per 1 KB)
PerformanceSequential reading560 MB/s
Sequential writing495 MB/s
4KB Random (QD32) Write69000 IOPS
Temperature sensorYes
TRIMis supported
Hardware Write Protection-, Yes
ATA SecurityYes
S.M.A.R.T.Yes
DEVSLP modeYes (Power consumption > 3 mW)
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 100°C
DimensionsForm factorCFast
Width42,8 mm
Deep36,4 mm
Height3,6 mm
VibrationVibration7.69 G, 20–2000 Hz
ShockMeasurement Data50G, 0.5 ms
Reference StandardMIL-STD-810G
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Certificates / Conformities
CEYes
RoHS compliantYes
