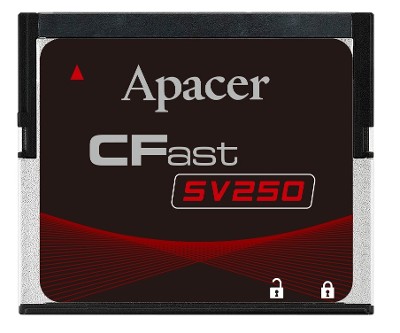

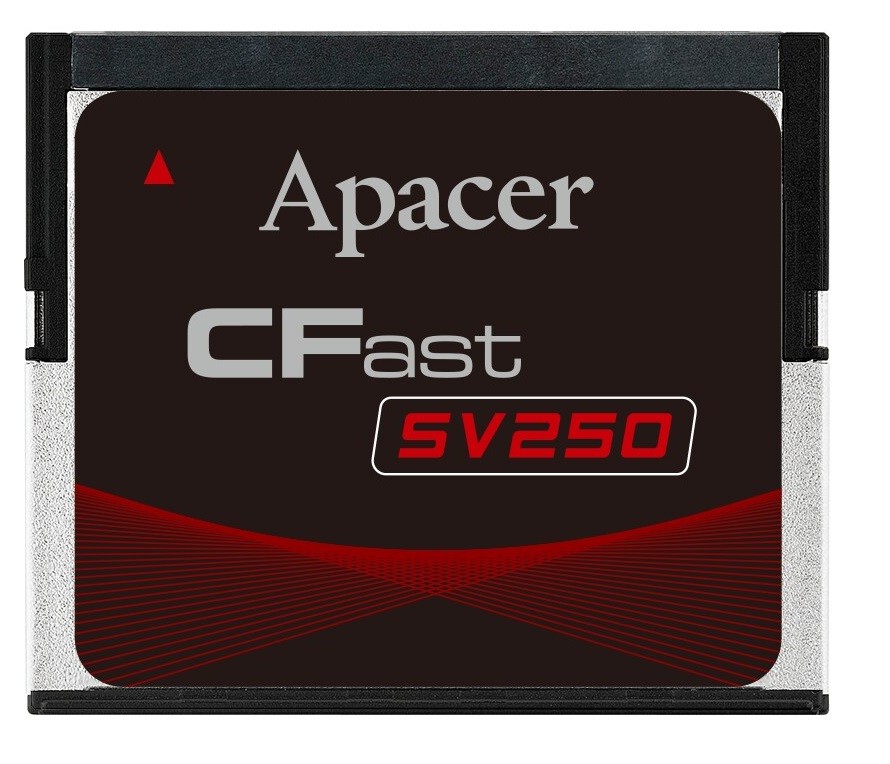

Apacer SV250-CFast

AA2.255FGA.001HA, AA2.255FHA.001HA, AA2.255GGA.001HA, AA2.255GHA.001HA, AA2.255HGA.001HA, AA2.255HGA.002EM, AA2.255HHA.001HA, AA2.255HHA.002EF, AA2.255JGA.001HA, AA2.255JGA.003EM, AA2.255JHA.001HA, AA2.255JHA.002EF, AA2.255KGA.001HA, AA2.255KGA.003EM, AA2.255KHA.001HA, AA2.255KHA.002EF, AA2.255LGA.001EM, AA2.255LHA.001EF

CFast

The product is EOL (End Of Life)!

PRODUCT FEATURES

// CFast
// 3D TLC
// SATA 3
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

INQUIRY
CHAT
PHONE
COMPARE
SAVE

PRODUCT INFORMATION

Basic Module: Apacer SV250-CFast

General information
	SKU / Item Number		SV250-CFast
Product Basic Data
	Manufacturer		Apacer
Flash storage media
	Connection (Interface)		SATA 3
	Flash structure		CFast
	Flash type		3D TLC
	Capacity		30 GB, 60 GB, 120 GB, 240 GB, 480 GB, 960 GB
	ECC (Error-Correcting Code)		Supported (24 bits per 1 KB)
	Temperature sensor		Yes
	TRIM		is supported
	Hardware Write Protection		Yes
	Flash mode		64-layer 3D flash (BiCS3 / B16 / B17), 112/128 Layer 3D Flash
	ATA Security		Yes
	S.M.A.R.T.		Yes
	DEVSLP mode		Yes (Power consumption > 3 mW)
Mechanical / Environment
	Temperature	Operation	0°C to 70°C, -40°C to 85°C
		Storage	-55°C to 100°C
	Dimensions	Form factor	CFast
		Width	42,8 mm
		Deep	36,45 mm
		Height	3,6 mm
	Vibration	Vibration	7.69 G, 20–2000 Hz
	Shock	Measurement Data	50G, 0.5 ms
		Reference Standard	MIL-STD-810G
	MTBF (Mean Time Between Failures)	MTBF at 25°C	3.000.000 h
Certificates / Conformities
	CE		Yes
	RoHS compliant		Yes

End of Life (EOL)

Firmware Version Update for SV250-CFast BiCS5 Products Subject of Change Firmware Version Update for SV250-CFast BiCS5 products Description of Change Apacer has updated the firmware version from SFME6120/SFMH6120 and SFMEA120/SFMHA120 to SFML6130 and SFMLA130, respectively, with the following changes: 1. Fine-tuned table flush threshold to resolve the “No Free Block “issue. 2. Fine-tuned code refresh threshold. 3. Fine-tuned read-retry mechanism. 4. Improved PBT head refresh process during SPOR. 5. Fixed “No Free Block” issue resulting in WP errors. 6. Optimized error handling flow to prevent SATA errors during SPOR. 7. Optimized Smart Read Refresh. 8. Optimized error handling for table parameter mismatches after power resume from an abnormal shutdown. 9. Fine-tuned read refresh threshold. 10. Enforced execution of SRAM detection at power-on. 11. Adjusted update frequency of the thermal sensor. 12. Changed SMART variable type from BYTE to WORD in Linux smartctl. 13. Added support for negative temperature values in SMART. 14. Improve DEVSLP to avoid unexpected behavior on specific platforms
Revision:	E250930-06
Revision date:	30. September 2025
Last purchase date:	31. Oktober 2025
Last shipping date:
Affected Products:	SV250-CFast
Note Document:	Apacer_PCN_SV250-CFast_BiCS5_Firmware Version Update_20250930.pdf
Product Change Notification (PCN)

Subject of Change Update firmware version to SFMB6140 and SFMBA130 for SV250-CFast BiCS3 products Description of Change Apacer has updated the firmware version from SFMB6130 and SFMBA120 to SFMB6140 and SFMBA130, respectively, with the following changes: - Without TCG OPAL (SFMB6140) 1. Support for “Online Update”. 2. Enhanced read refresh mechanism. 3. Modified reset flow of FPLL (Frequency and Phase Locked Loop) register at high temperature. 4. Improved read error handling process. 5. Adjusted update frequency of thermal sensor. 6. Support for minus temperature in SMART. 7. Sync HDDA & DAS LED dim when drive’s in idle mode. 8. Set DAS GPIO as open drain. 9. Optimized mapping table flush timing. 10. Fixed LBA range reporting issue when HPA is enabled. - With TCG OPAL (SFMBA130) 1. Fixed OPAL mismatch bug after Setting Locking Range then executing RevertTper. 2. Change the method of OPAL PSID Revert from Secure Erase to Crypto Erase. 3. Support for “Online Update”. 4. Enhanced read refresh mechanism. 5. Modified reset flow of FPLL (Frequency and Phase Locked Loop) register at high temperature. 6. Improved read error handling process. 7. Adjusted update frequency of thermal sensor. 8. Support for minus temperature in SMART. Recommended Action Apacer will continue to supply SV250-CFast BiCS3 with the old firmware, but we recommend qualifying with the latest version for improved compatibility and support.
Revision:	E240710-6
Revision date:	10. Juli 2024
Last purchase date:
Last shipping date:
Affected Products:	SV250-CFast
Note Document:	Apacer_PCN_SV250-CFast_Update Firmware Version to SFMB6140_20240710.pdf

Apacer SV250-CFast

PRODUCT FEATURES

CONFIGURATION

PRODUCT PRICE

PRODUCT INFORMATION

CONFIGURATIONS

Download

Apacer AA2.255FGA.001HA (EOL) View full datasheet Close datasheet

Apacer AA2.255FHA.001HA (EOL) View full datasheet Close datasheet

Apacer AA2.255GGA.001HA (EOL) View full datasheet Close datasheet

Apacer AA2.255GHA.001HA (EOL) View full datasheet Close datasheet

Apacer AA2.255HGA.001HA (EOL) View full datasheet Close datasheet

Apacer AA2.255HGA.002EM (EOL) View full datasheet Close datasheet

Apacer AA2.255HHA.001HA (EOL) View full datasheet Close datasheet

Apacer AA2.255HHA.002EF (EOL) View full datasheet Close datasheet

Apacer AA2.255JGA.001HA (EOL) View full datasheet Close datasheet

Apacer AA2.255JGA.003EM (EOL) View full datasheet Close datasheet

Apacer AA2.255JHA.001HA (EOL) View full datasheet Close datasheet

Apacer AA2.255JHA.002EF (EOL) View full datasheet Close datasheet

Apacer AA2.255KGA.001HA (EOL) View full datasheet Close datasheet

Apacer AA2.255KGA.003EM (EOL) View full datasheet Close datasheet

Apacer AA2.255KHA.001HA (EOL) View full datasheet Close datasheet

Apacer AA2.255KHA.002EF (EOL) View full datasheet Close datasheet

Apacer AA2.255LGA.001EM (EOL) View full datasheet Close datasheet

Apacer AA2.255LHA.001EF (EOL) View full datasheet Close datasheet

Apacer AA2.255FGA.001HA (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, 0°C to 70°C
Mechanical / Environment	Temperature	Operation	0°C to 70°C
Flash storage media	Capacity		30 GB
	Flash mode		64-layer 3D flash (BiCS3 / B16 / B17)
Apacer AA2.255FHA.001HA (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, -40°C to 85°C
Mechanical / Environment	Temperature	Operation	-40°C to 85°C
Flash storage media	Capacity		30 GB
	Flash mode		64-layer 3D flash (BiCS3 / B16 / B17)
Apacer AA2.255GGA.001HA (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, 0°C to 70°C
Mechanical / Environment	Temperature	Operation	0°C to 70°C
Flash storage media	Capacity		60 GB
	Flash mode		64-layer 3D flash (BiCS3 / B16 / B17)
Apacer AA2.255GHA.001HA (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, -40°C to 85°C
Mechanical / Environment	Temperature	Operation	-40°C to 85°C
Flash storage media	Capacity		60 GB
	Flash mode		64-layer 3D flash (BiCS3 / B16 / B17)
Apacer AA2.255HGA.001HA (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, 0°C to 70°C
Mechanical / Environment	Temperature	Operation	0°C to 70°C
Flash storage media	Capacity		120 GB
	Flash mode		64-layer 3D flash (BiCS3 / B16 / B17)
Apacer AA2.255HGA.002EM (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, 0°C to 70°C
Mechanical / Environment	Temperature	Operation	0°C to 70°C
Flash storage media	Capacity		120 GB
	Flash mode		112/128 Layer 3D Flash
Apacer AA2.255HHA.001HA (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, -40°C to 85°C
Mechanical / Environment	Temperature	Operation	-40°C to 85°C
Flash storage media	Capacity		120 GB
	Flash mode		64-layer 3D flash (BiCS3 / B16 / B17)
Apacer AA2.255HHA.002EF (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, -40°C to 85°C
Mechanical / Environment	Temperature	Operation	-40°C to 85°C
Flash storage media	Capacity		120 GB
	Flash mode		112/128 Layer 3D Flash
Apacer AA2.255JGA.001HA (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, 0°C to 70°C
Mechanical / Environment	Temperature	Operation	0°C to 70°C
Flash storage media	Capacity		240 GB
	Flash mode		64-layer 3D flash (BiCS3 / B16 / B17)
Apacer AA2.255JGA.003EM (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, 0°C to 70°C
Mechanical / Environment	Temperature	Operation	0°C to 70°C
Flash storage media	Capacity		240 GB
	Flash mode		112/128 Layer 3D Flash
Apacer AA2.255JHA.001HA (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, -40°C to 85°C
Mechanical / Environment	Temperature	Operation	-40°C to 85°C
Flash storage media	Capacity		240 GB
	Flash mode		64-layer 3D flash (BiCS3 / B16 / B17)
Apacer AA2.255JHA.002EF (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, -40°C to 85°C
Mechanical / Environment	Temperature	Operation	-40°C to 85°C
Flash storage media	Capacity		240 GB
	Flash mode		112/128 Layer 3D Flash
Apacer AA2.255KGA.001HA (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, 0°C to 70°C
Mechanical / Environment	Temperature	Operation	0°C to 70°C
Flash storage media	Capacity		480 GB
	Flash mode		64-layer 3D flash (BiCS3 / B16 / B17)
Apacer AA2.255KGA.003EM (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, 0°C to 70°C
Mechanical / Environment	Temperature	Operation	0°C to 70°C
Flash storage media	Capacity		480 GB
	Flash mode		112/128 Layer 3D Flash
Apacer AA2.255KHA.001HA (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, -40°C to 85°C
Mechanical / Environment	Temperature	Operation	-40°C to 85°C
Flash storage media	Capacity		480 GB
	Flash mode		64-layer 3D flash (BiCS3 / B16 / B17)
Apacer AA2.255KHA.002EF (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, -40°C to 85°C
Mechanical / Environment	Temperature	Operation	-40°C to 85°C
Flash storage media	Capacity		480 GB
	Flash mode		112/128 Layer 3D Flash
Apacer AA2.255LGA.001EM (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, 0°C to 70°C
Mechanical / Environment	Temperature	Operation	0°C to 70°C
Flash storage media	Capacity		960 GB
	Flash mode		112/128 Layer 3D Flash
Apacer AA2.255LHA.001EF (EOL) View full datasheet Close datasheet Price: please log in here
CFast, 3D TLC, SATA 3, -40°C to 85°C
Mechanical / Environment	Temperature	Operation	-40°C to 85°C
Flash storage media	Capacity		960 GB
	Flash mode		112/128 Layer 3D Flash
