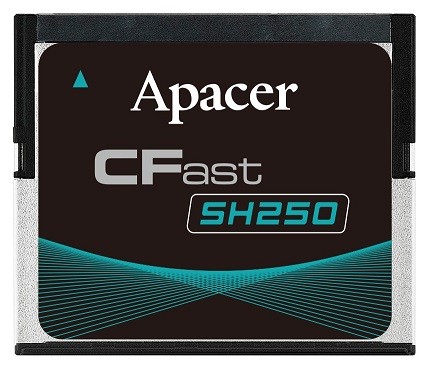

Apacer SH250-CFast

AA2.259FYA.001H8, AA2.259FZA.001H8, AA2.259GYA.001H8, AA2.259GZA.001H8, AA2.259HYA.001H8, AA2.259HYA.002F8, AA2.259HZA.001H8, AA2.259HZA.002F8, AA2.259JYA.001H8, AA2.259JYA.002F8, AA2.259JZA.001H8, AA2.259JZA.002F8, AA2.259KYA.001H8, AA2.259KYA.002F8, AA2.259KZA.001H8, AA2.259KZA.002F8, AA2.259LYA.001F8, AA2.259LZA.001F8

CFast

PRODUCT FEATURES

// CFast
// 3D TLC
// SATA 3
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Apacer SH250-CFast

General information
SKU / Item NumberSH250-CFastAA2.259HYA.002F8, AA2.259HZA.002F8, AA2.259JYA.002F8, AA2.259JZA.002F8, AA2.259KYA.002F8, AA2.259KZA.002F8, AA2.259LYA.001F8, AA2.259LZA.001F8, AA2.259FYA.001H8, AA2.259FZA.001H8, AA2.259GYA.001H8, AA2.259GZA.001H8, AA2.259HYA.001H8, AA2.259HZA.001H8, AA2.259JYA.001H8, AA2.259JZA.001H8, AA2.259KYA.001H8, AA2.259KZA.001H8
Product Basic Data
ManufacturerApacer
Flash storage media
Connection (Interface)SATA 3
Flash structureCFast
Flash type3D TLC
Write/Erase cycles (P/E limit)100000
Capacity10 GB, 20 GB, 40 GB, 80 GB, 160 GB, 320 GB
ECC (Error-Correcting Code)Supported (24 bits per 1 KB)
Temperature sensorYes
Flash mode64-layer 3D flash (BiCS3 / B16 / B17), 112/128 Layer 3D Flash
ATA SecurityYes
S.M.A.R.T.Yes
DEVSLP modeYes (Power consumption > 3 mW)
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 100°C
DimensionsForm factorCFast
Width42,8 mm
Deep36,45 mm
Height3,6 mm
ShockMeasurement Data50G, 0.5 ms
Reference StandardMIL-STD-810G
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Certificates / Conformities
CEYes
RoHS compliantYes
