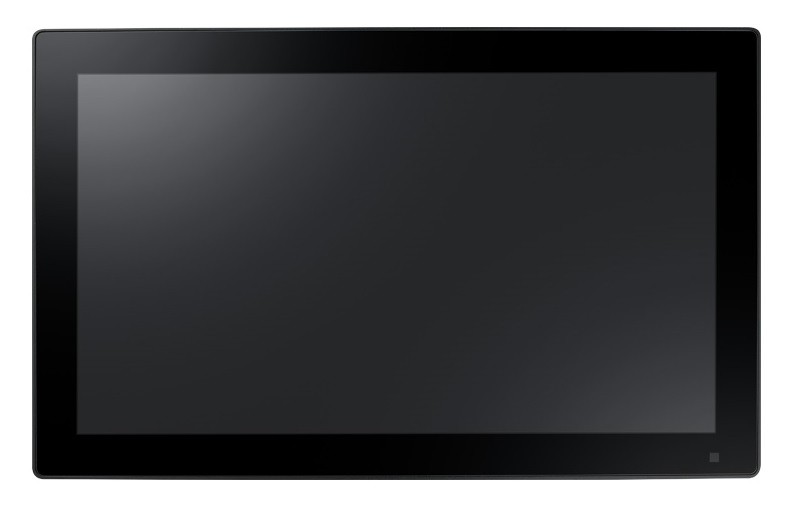

Panel PC with IP66 (Front)
// 15.6" TFT LCD Panel-PC
// Intel N97
// Touchscreen (Capacitive)
// IP66 (front side)
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// Power Supply DC 24V
Sales only to business customers.
Delivery time: upon request

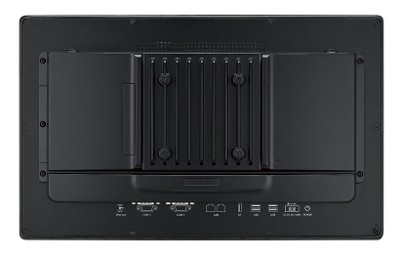

Basic Module: Advantech PPC-315SW ADL_N
| General information | ||||
| SKU / Item Number | PPC-315SW ADL_N | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| Product ID | PPC-315SW-PN9A | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Alder Lake | |||
| Number | Intel N97 | |||
| CPU cores | 4 Pce | |||
| Socket | BGA 1264 | |||
| Base frequency | 2 GHz | |||
| Max Turbo Frequency | 3,6 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 12 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequency | 4800 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 16 GB | |||
| ECC (Error-Correcting Code) | not supported | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Display | ||||
| Display Typ | 15.6" TFT LCD | |||
| Max. Resolution | 1920 x 1080 | |||
| Aspect Ratio | 16 : 9 | |||
| Contrast | 800:1 | |||
| Luminance | 350 cd/m² | |||
| Viewing angle | Horizontal | 89 ° | ||
| Vertical | 89 ° | |||
| Backlight | Type | LED | ||
| Lifetime | 50000 h | |||
| Touch Screen | Type | Capacitive | ||
| Light Transmission | 86 % | |||
| Interface | USB | |||
| Audio | Speaker | 1 Pce | ||
| Watt | 2 W | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×1 (Gen 3) | |||
| Supported dimensions | 2242, 2280 | |||
| Slot 2 | Key ID | B | ||
| Interface | PCIe ×1 (Gen 3), SATA III, USB 3.0 | |||
| Supported dimensions | 2242, 3042, 3052 | |||
| Slot 3 | Key ID | E | ||
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

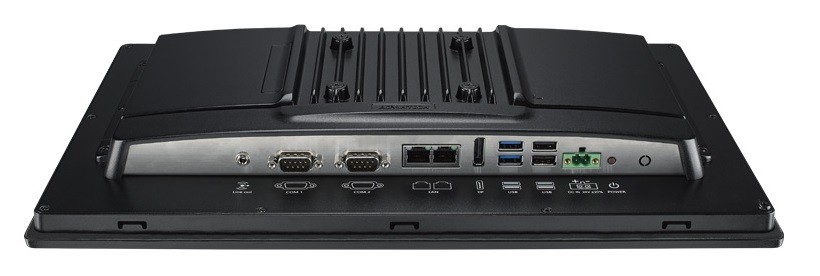

| Externe I/O (Rear Panel) | ||||
| Display | DisplayPort | 1 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 1) | 2 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 24V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 24V | |||
| Typical power consumption | 35 W | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -10°C to 50°C | ||
| Storage | -20° to 60°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 15.6" | ||
| Width | 395,7 mm | |||
| Deep | 50,4 mm | |||
| Height | 245,1 mm | |||
| IP Rating | IP66 (front side) | |||
| Vibration | Vibration | 2G, 5 to 500 Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Measurement Data | 10G, half sine wave, 11 ms duration | ||
| Reference Standard | IEC 68-2-27 | |||
| Weight | 4260 g | |||
| Controls | Power | 1 Pce | ||
| Color | Black | |||
| Mounting option | VESA | |||
| OS / Software | ||||
| Windows | Windows 11 | Supported | ||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | is supported | ||
| Linux | Distribution | Linux | ||
| Android | Release | 10 | ||
| Supported OS | Windows, Windows Embedded, Linux, Android | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class B | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | BSMI, CB, EN 60601-1-2, UKCA | |||
| RoHS compliant | Yes | |||
