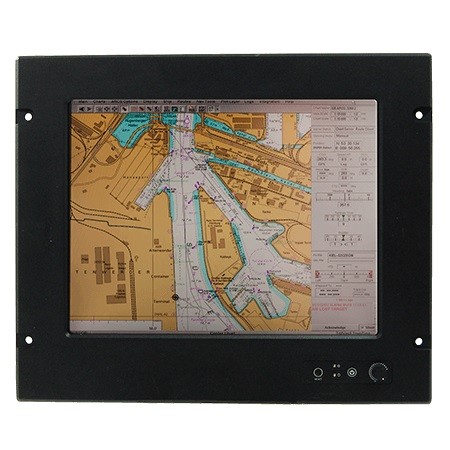

Marine Panel PC
// 15" TFT LCD Panel-PC
// Intel Core i7-1165G7
// Touchscreen (Analog Resistive)
// Passive cooled
// IP66 (front side)
// SoC (System on a Chip)
// 260-pin DDR4 SO-DIMM
// 64 GB SSD (M.2)
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// Power Supply DC 24V
Sales only to business customers.
Delivery time: upon request
Basic Module: Winmate R15IT3S-MRM2
| General information | ||||
| SKU / Item Number | R15IT3S-MRM2 | |||
| Product Basic Data | ||||
| Manufacturer | Winmate | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Tiger Lake | |||
| Number | Intel Core i7-1165G7 | |||
| CPU cores | 4 Pce | |||
| Threads | 8 Pce | |||
| Socket | BGA 1449 | |||
| Base frequency | 2,8 GHz | |||
| Max Turbo Frequency | 4,7 GHz | |||
| Cache | 12 MB | |||
| Thermal Design Power (TDP) | 28 W | |||
| Lithography | 10 nm | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| Frequency | 2400 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 32 GB | |||
| Internal memory | 4 GB | |||
| Storage | Solid State Drive (M.2) | 64 GB | ||
| Power supply - Input | Solid State Drive (M.2) 64 GB | |||
| Graphics | ||||
| Processor | Intel Iris Xe Graphics | |||
| Display | ||||
| Display Typ | 15" TFT LCD | |||
| Max. Resolution | 1024 x 768 | |||
| Aspect Ratio | 4 : 3 | |||
| Contrast | 2000:1 | |||
| Luminance | 300 cd/m² | |||
| Viewing angle | Horizontal | 88 ° | ||
| Vertical | 88 ° | |||
| Backlight | Type | LED | ||
| Touch Screen | Type | Analog Resistive | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | SATA III | |||
| Supported dimensions | 2242 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | B, M | |||
| Storage | mSATA | |||
| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 5 Pce | |
| USB | USB 3.0 | 2 Pce | ||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 24V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 24V | |||
| Typical power consumption | 55 W | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -15°C to 55°C | ||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 15-inch | ||
| Width | 412 mm | |||
| Deep | 71,7 mm | |||
| Height | 345 mm | |||
| IP Rating | IP66 (front side) | |||
| Vibration | Vibration | 0.7G | ||
| Shock | Measurement Data | 15G, half sine wave, 11 ms duration | ||
| Weight | 6060 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Color | Black | |||
| Material | Aluminum, Steel | |||
| Mounting option | Panel Mounting, VESA | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | is supported | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Windows Embedded, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | DNVGL-CG-0339, IACS E10 / DNV, IEC 60945 | |||
| RoHS compliant | Yes | |||
