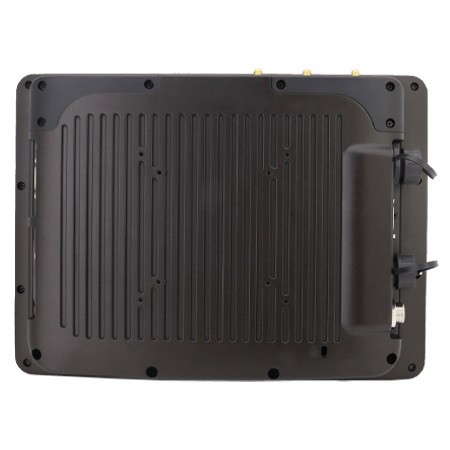

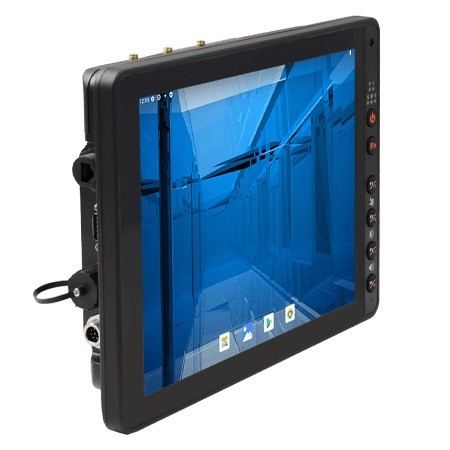

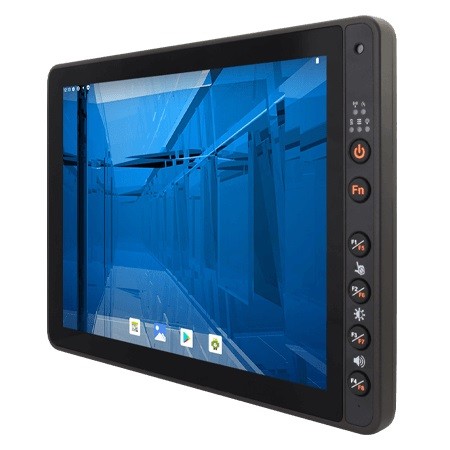

In-Vehicle Panel PC
// 12.1" TFT LCD Panel-PC
// Mediatek MT8370
// Touchscreen (Capacitive)
// Passive cooled
// IP65 (full)
// Mediatek MT8370
// SoC (System on a Chip)
// 4 GB
// 1 x G-LAN (Back side)
// 2 x USB (Back side)
// 64 GB eMMC
// Power Supply DC 10 to 60V
Sales only to business customers.
Delivery time: upon request
Basic Module: Winmate FM12MG-V
| General information | ||||
| SKU / Item Number | FM12MG-V | |||
| Product Basic Data | ||||
| Manufacturer | Winmate | |||
| System | ||||
| Processor | Series | ARM Cortex-A78 | ||
| Number | Mediatek MT8370 | |||
| CPU cores | 2 Pce | |||
| Max Turbo Frequency | 2 GHz | |||
| Processor 2 | Series | ARM Cortex-A55 | ||
| Number | Mediatek MT8370 | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 2 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Internal memory | 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
| eMMC version | 5.1 | |||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 64 GB | |||
| Display | ||||
| Display Typ | 12.1" TFT LCD | |||
| Max. Resolution | 1024 x 768 | |||
| Aspect Ratio | 4 : 3 | |||
| Contrast | 1000:1 | |||
| Luminance | 400 cd/m² | |||
| Viewing angle | Horizontal | 89 ° | ||
| Vertical | 89 ° | |||
| Backlight | Type | LED | ||
| Touch Screen | Type | Capacitive | ||
| Extension | ||||
| Storage | Micro SD (external) | |||
| Network | ||||
| Wireless | Wi-Fi | Protocol | 802.11a/b/g/n/ac/ax | |
| Bluetooth | Type | v5.1 | ||
| Network | Wi-Fi, Bluetooth | |||
| Externe I/O (Rear Panel) | ||||
| Ethernet | RJ-45 | 1 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| USB | USB 2.0 | 1 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| SIM | Quantity | 2 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Sensor | ||||
| 3D sensor | 3D Accelerometer | |||
| Temperature | Yes | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 10 to 60V | |||
| Connector | M12 | |||
| Ignition (IGN) | Yes | |||
| Power supply - Input | DC: 10~60V | |||
| Typical power consumption | 35 W | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -30°C to 60°C | ||
| Storage | -30°C to 60°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 12.1" | ||
| Width | 307 mm | |||
| Deep | 57 mm | |||
| Height | 225 mm | |||
| IP Rating | IP65 (full) | |||
| Vibration | Reference Standard | MIL-STD-810H Method 514.8 Procedure I | ||
| Shock | Reference Standard | MIL-STD-810H Method 516.8 Procedure I | ||
| Weight | 2500 g | |||
| Camera | Front | Resolution | 2 MP | |
| Controls | Power | 1 Pce | ||
| Status indicators | Wi-Fi | 1 Pce | ||
| System Status | 1 Pce | |||
| Battery | 1 Pce | |||
| Antenna holes | 3 Pce | |||
| Color | Black | |||
| Mounting option | VESA | |||
| OS / Software | ||||
| Linux | Distribution | Ubuntu 22.04, Yocto 5.10.104 | ||
| Android | Release | 13 | ||
| Supported OS | Linux, Android | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | EN 61000-4-2 (Electrostatic Discharge), EN 62262 | |||
| RoHS compliant | Yes | |||
