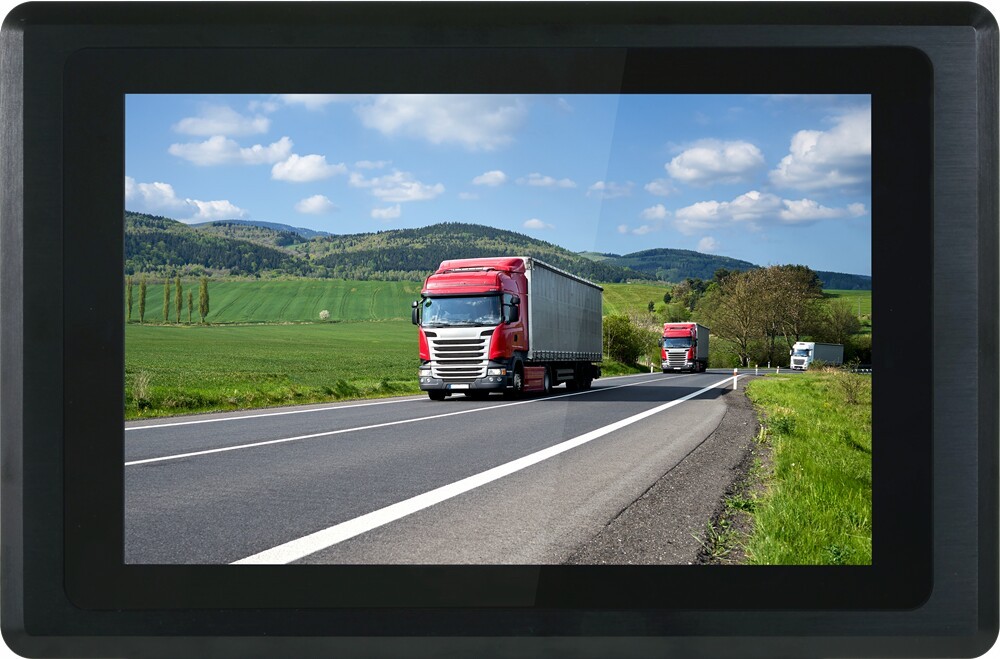

In-Vehicle Panel PC
// 10.1" TFT LCD Panel-PC
// [Intel Atom E3825 | Intel Atom E3845]
// Touchscreen (Capacitive)
// Passive cooled
// IP65 (front)
// 240-pin DDR3L DIMM
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 3 x Mini-PCIe
// Power Supply DC 9 to 36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: DFI VP101-BT
| General information | ||||
| SKU / Item Number | VP101-BT | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Bay Trail | |||
| Number | Intel Atom E3825, Intel Atom E3845 | |||
| CPU cores | 2 Pce, 4 Pce | |||
| Threads | 2 Pce, 4 Pce | |||
| Socket | BGA 1170 | |||
| Base frequency | 1,33 GHz, 1,91 GHz | |||
| Cache | 1 MB, 2 MB | |||
| Thermal Design Power (TDP) | 6 W, 10 W | |||
| Memory | Structure | 240-pin DDR3L DIMM | ||
| Memory Type | DDR3 | |||
| Frequency | 1333 MHz | |||
| Maximum expansion | 4 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| Internal memory | 2 GB, 4 GB | |||
| BIOS | AMI SPI 64 Mbit | |||
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Performance feature | Support | DirectX 11, OGL 4.0, OpenCL 1.2 | ||
| Hardware decoding | AVC / H.264, MPEG2, MVC, VC1 / WMV9, VP 8 | |||
| HDMI | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Display | ||||
| Display Typ | 10.1" TFT LCD | |||
| Max. Resolution | 1280 x 800 | |||
| Aspect Ratio | 8 : 5 | |||
| Contrast | 800:1 | |||
| Luminance | 500 cd/m² | |||
| Backlight | Type | LED | ||
| Lifetime | 50000 h | |||
| Touch Screen | Type | Capacitive | ||
| Extension | ||||
| Mini-PCIe | Half building depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| Full installation depth | Quantity | 2 Pce | ||
| USB support | Yes | |||
| mSATA support | Yes | |||
| PCIe Interfaces | 3x Mini-PCIe slots | |||
| SIM | PCIe / USB 2.0 Support | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Storage | mSATA | |||
| Audio | ||||
| Chipset | Realtek ALC886 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

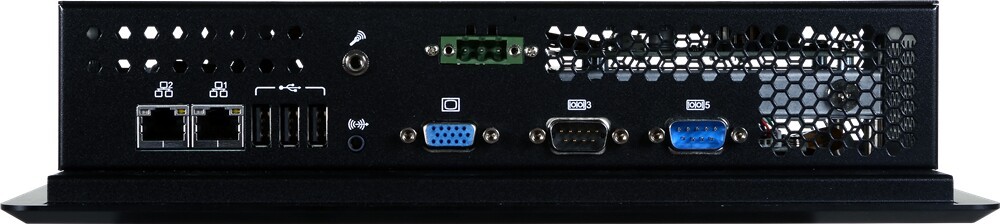

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| RS-232 / 422 / 485 | DB-9 | 4 Pce | ||
| USB | USB 2.0 | 3 Pce | ||
| USB 3.0 | 1 Pce | |||
| Internal I/O | ||||
| Serial ATA | S-ATA R2.0 (3 Gbps, 300 MB/s) | 1 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | 3-pin terminal connector | |||
| Ignition (IGN) | Yes | |||
| Power supply - Input | DC: 9~36V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C | ||
| Storage | -30°C to 80°C | |||
| Relative humidity | Operation | 5 to 85%, non-condensing | ||
| Dimensions | Form factor | 10.1" | ||
| Width | 294 mm | |||
| Deep | 193 mm | |||
| Height | 65 mm | |||
| IP Rating | IP65 (front) | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Shock | Measurement Data | 3G, half sine wave, 11 ms duration | ||
| Weight | 1700 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Antenna holes | 2 Pce | |||
| Color | Black | |||
| Material | Aluminum, Steel | |||
| Mounting option | Panel Mounting, VESA | |||
| OS / Software | ||||
| Windows | Windows 7 (32/64-bit) | is supported | ||
| Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | is supported | ||
| Windows 10 Enterprise IoT LTSC (2019) | is supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | E-mark | |||
| RoHS compliant | Yes | |||
| Lifecycle | ||||
| Production start | Q2/2019 | |||
