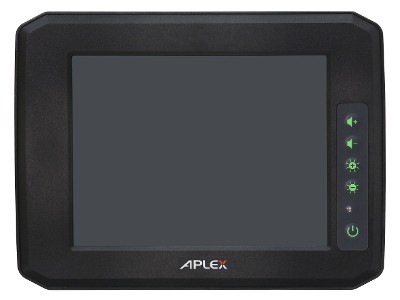

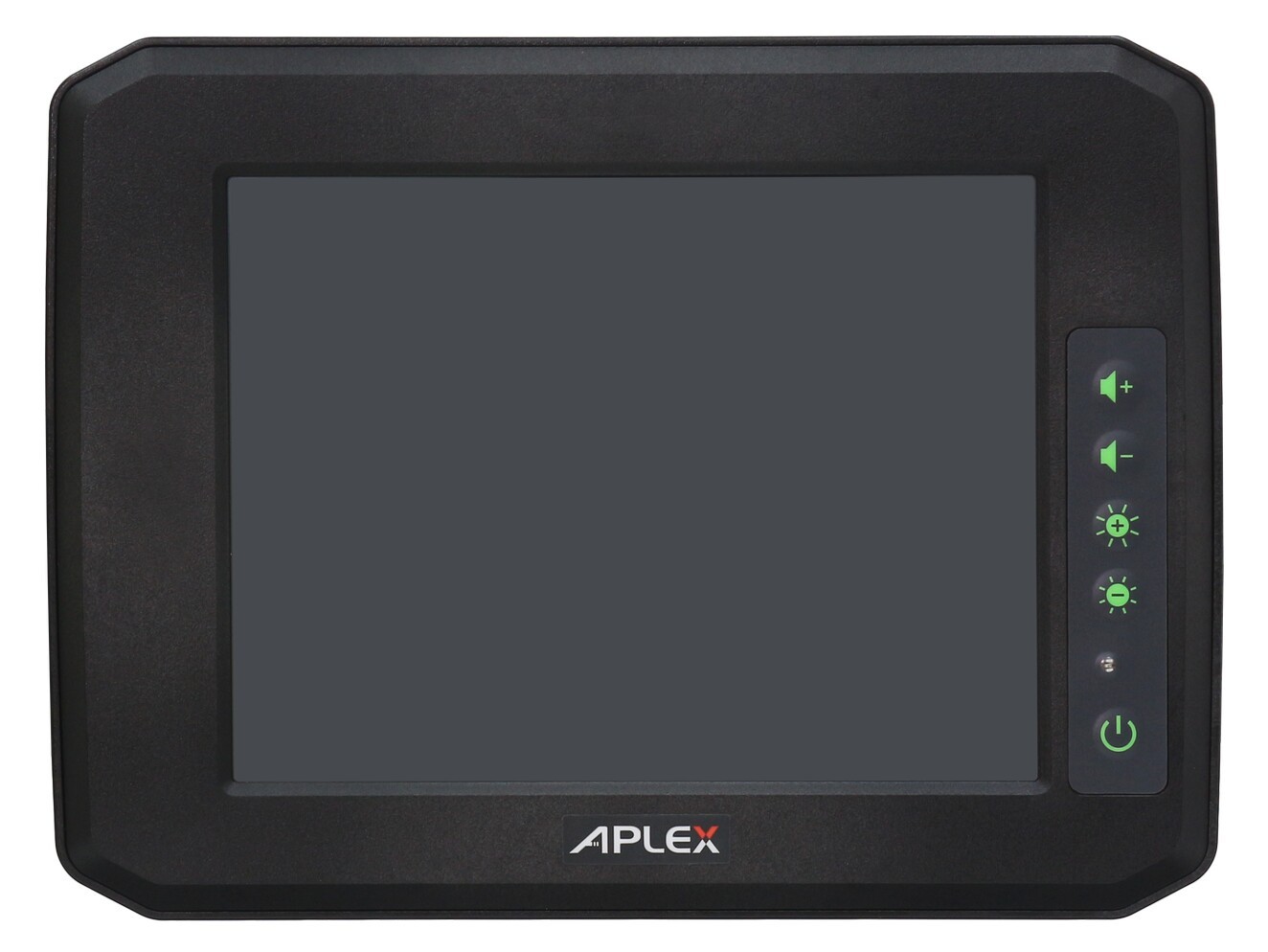

In-Vehicle Panel PC
// 8" TFT LCD Panel-PC
// Intel Atom E3845
// Touchscreen (Analog Resistive)
// Passive cooled
// IP66 (comprehensive)
// SoC (System on a Chip)
// 4 GB
// 8 GB SSD (mSATA)
// 1 x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x Mini-PCIe
// Power Supply DC 7 to 36 V
Sales only to business customers.
Delivery time: upon request
Basic Module: Aplex APC-3082
| General information | ||||
| SKU / Item Number | APC-3082 | |||
| Product Basic Data | ||||
| Manufacturer | Aplex | |||
| Product ID | APC-3082T-02 | |||
| System | ||||
| Processor | Series | Intel Bay Trail | ||
| Number | Intel Atom E3845 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1170 | |||
| Base frequency | 1,91 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 10 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR3 | ||
| Internal memory | 4 GB | |||
| Storage | Solid State Drive (mSATA) | 8 GB | ||
| Power supply - Input | Solid State Drive (mSATA) 8 GB | |||
| Display | ||||
| Display Typ | 8" TFT LCD | |||
| Max. Resolution | 800 x 600 | |||
| Aspect Ratio | 4 : 3 | |||
| Max. Colors | 16.2M | |||
| Contrast | 500:1 | |||
| Luminance | 600 cd/m² | |||
| Viewing angle | Horizontal | 140 ° | ||
| Vertical | 125 ° | |||
| Backlight | Type | LED | ||
| Lifetime | 50000 h | |||
| Touch Screen | Type | Analog Resistive | ||
| Light Transmission | 80 % | |||
| Interface | USB | |||
| Audio | Speaker | 1 Pce | ||
| Watt | 2 W | |||
| Extension | ||||
| Mini-PCIe | Half building depth | Quantity | 1 Pce | |
| mSATA support | Yes | |||
| Full installation depth | Quantity | 1 Pce | ||
| PCIe Interfaces | 2x Mini-PCIe slots | |||
| SIM | PCIe / USB 2.0 Support | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Storage | Micro SD, mSATA | |||

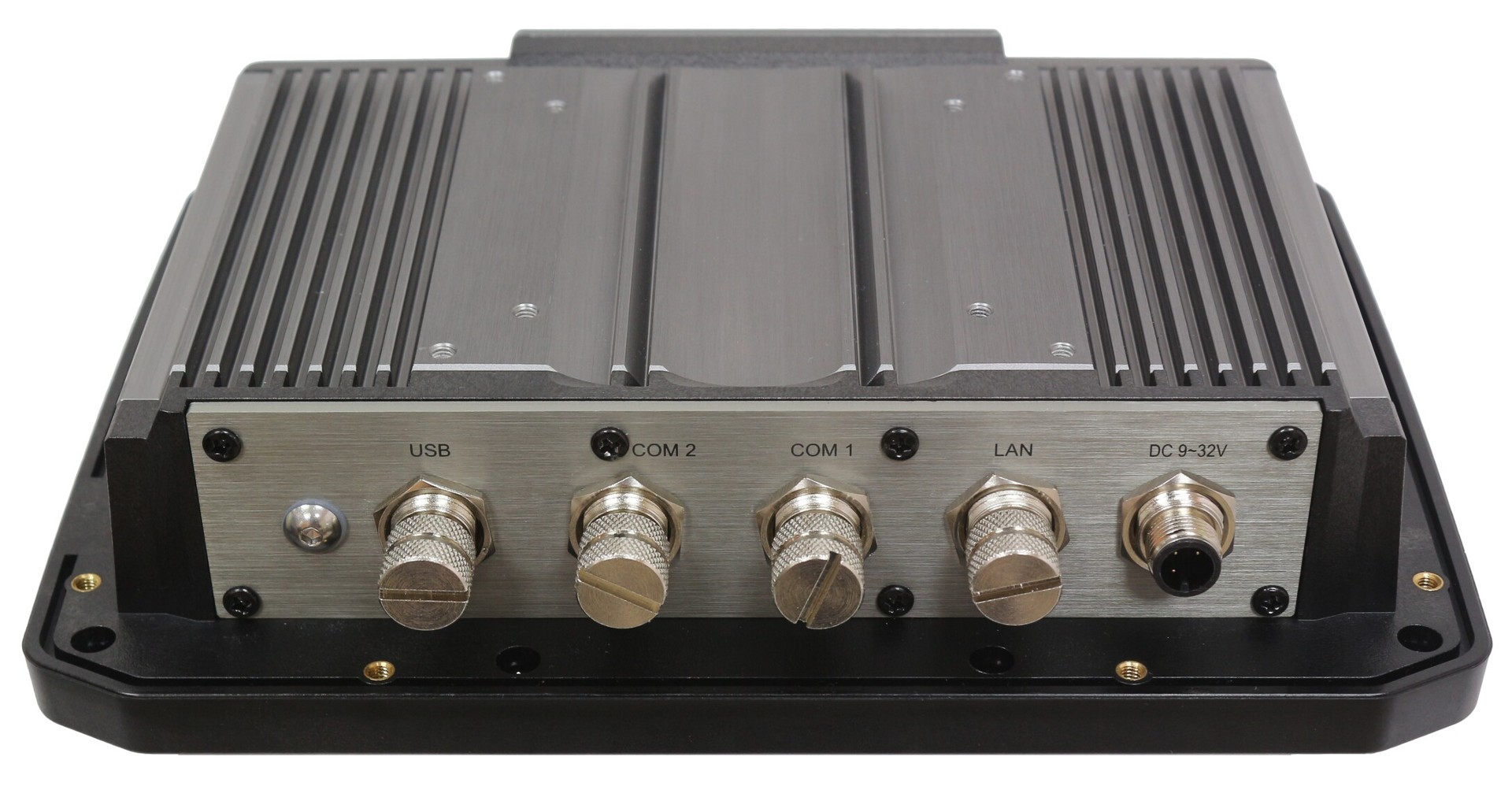

| Externe I/O (Rear Panel) | ||||
| Ethernet | M12 connectors | 1 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| M12 connectors | 1 Pce | |||
| USB | USB 2.0 | 2 Pce | ||
| M12 connectors | Yes | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 7 to 36 V | |||
| Connector | M12 | |||
| Power supply - Input | DC: 7–36V | |||
| Maximum power consumption | 19,8 W | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -30°C to 80°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Storage | 10 to 90%, non-condensing | |||
| Dimensions | Form factor | 8 inch | ||
| Width | 240 mm | |||
| Deep | 59 mm | |||
| Height | 180 mm | |||
| IP Rating | IP66 (comprehensive) | |||
| Vibration | Reference Standard | MIL-STD-810F | ||
| Shock | Reference Standard | IEC 68-2-27 | ||
| Weight | 2000 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| Color | Black | |||
| Material | Aluminum, plastic | |||
| Mounting option | VESA | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows Embedded | WES7E | is supported | ||
| WES7P | is supported | |||
| WE8S | is supported | |||
| WE8P | is supported | |||
| Supported OS | Windows, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | IEC 60068 | |||
| RoHS compliant | Yes | |||
