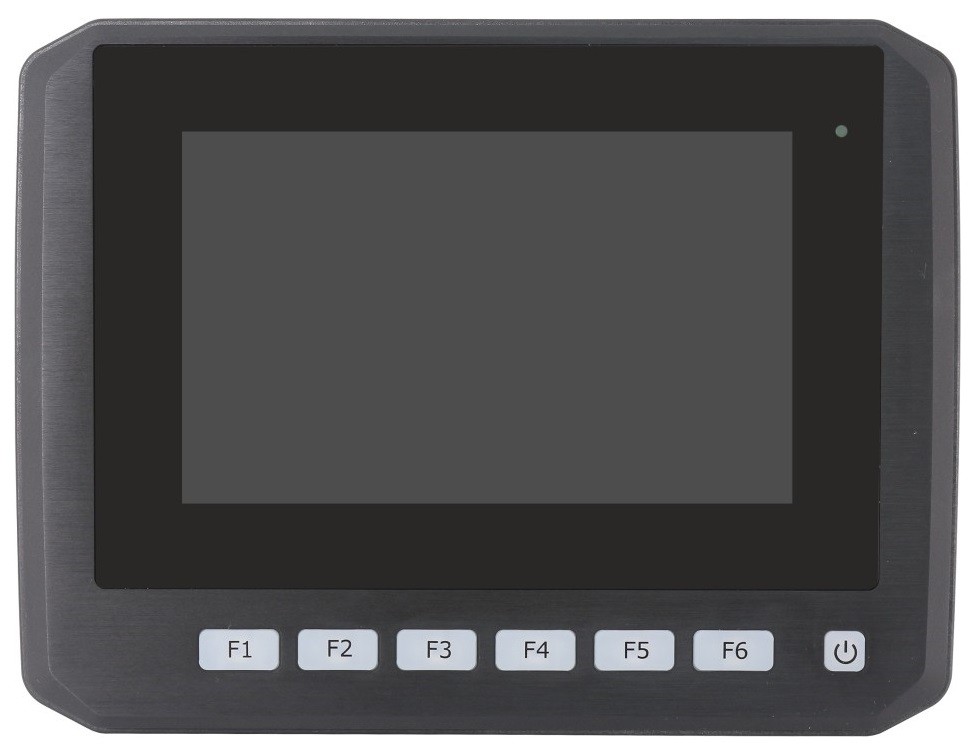

In-Vehicle Panel PC
// 7" TFT LCD Panel-PC
// NXP i.MX 6DualLite
// Touchscreen (Analog Resistive)
// Passive cooled
// IP66 (comprehensive)
// 1 GB
// 1 x G-LAN (Back side)
// 2 x USB (Back side)
// 4 GB eMMC
// 2 x Mini-PCIe
// Power Supply DC 7 to 36 V
Sales only to business customers.
Delivery time: upon request
Basic Module: Aplex APC-3073
| General information | ||||
| SKU / Item Number | APC-3073 | |||
| Product Basic Data | ||||
| Manufacturer | Aplex | |||
| System | ||||
| Processor | Series | ARM Cortex-A9 | ||
| Number | NXP i.MX 6DualLite | |||
| CPU cores | 2 Pce | |||
| Base frequency | 1 GHz | |||
| Cache | 0,5 MB | |||
| Memory | Memory Type | DDR3 | ||
| Internal memory | 1 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 4 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 4 GB | |||
| Display | ||||
| Display Typ | 7" TFT LCD | |||
| Max. Resolution | 800 x 480 | |||
| Aspect Ratio | 5 : 3 | |||
| Max. Colors | 262K | |||
| Contrast | 400:1 | |||
| Luminance | 600 cd/m² | |||
| Viewing angle | Horizontal | 140 ° | ||
| Vertical | 130 ° | |||
| Backlight | Type | LED | ||
| Lifetime | 50000 h | |||
| Touch Screen | Type | Analog Resistive | ||
| Light Transmission | 80 % | |||
| Interface | USB | |||
| Audio | Speaker | 1 Pce | ||
| Watt | 2 W | |||
| Extension | ||||
| Mini-PCIe | Half building depth | Quantity | 1 Pce | |
| Full installation depth | Quantity | 1 Pce | ||
| PCIe Interfaces | 2x Mini-PCIe slots | |||
| SIM | Form Factor (Slot) | Micro SIM | ||
| Storage | Micro SD | |||

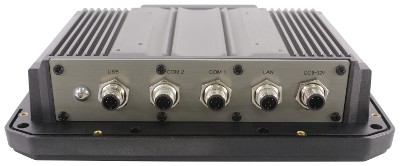

| Externe I/O (Rear Panel) | ||||
| Ethernet | M12 connectors | 1 Pce | ||
| Serial | RS-232 | DB-9 | 2 Pce | |
| M12 connectors | 1 Pce | |||
| USB | USB 2.0 | 2 Pce | ||
| M12 connectors | Yes | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 7 to 36 V | |||
| Connector | M12 | |||
| Ignition (IGN) | Yes | |||
| Power supply - Input | DC: 7–36V | |||
| Maximum power consumption | 7,5 W | |||
| Cooling | ||||
| Implementation | Passive | |||

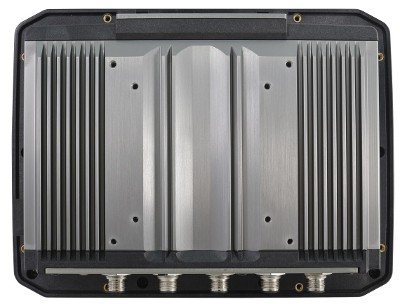

| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -30°C to 80°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Storage | 10 to 90%, non-condensing | |||
| Dimensions | Form factor | 7" | ||
| Width | 180 mm | |||
| Deep | 240 mm | |||
| Height | 59 mm | |||
| IP Rating | IP66 (comprehensive) | |||
| Vibration | Reference Standard | MIL-STD-810F | ||
| Shock | Reference Standard | IEC 68-2-27 | ||
| Weight | 2100 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| Antenna holes | 1 Pce | |||
| Material | Aluminum, plastic | |||
| Mounting option | VESA | |||
| OS / Software | ||||
| Linux | Distribution | Linux | ||
| Kernel | 4.1.15 | |||
| Android | Release | 5.1.1 | ||
| Supported OS | Linux, Android | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
