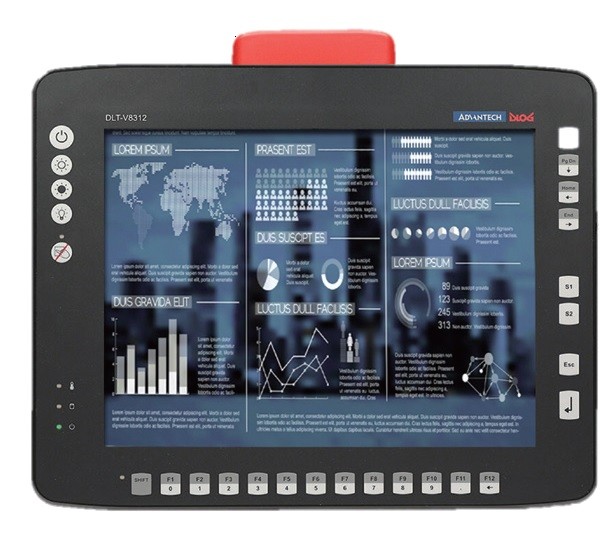

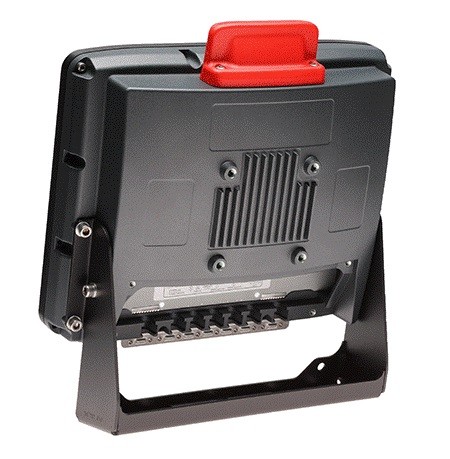

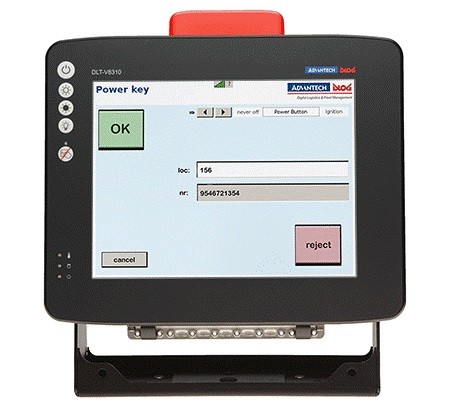

In-Vehicle Panel PC
The product is EOL (End Of Life)!
// [10.4" TFT LCD | 12.1" TFT LCD | 15.1" TFT LCD] Panel-PC
// Intel Celeron 2980U
// Touchscreen (Analog Resistive)
// SoC (System on a Chip)
// 4 GB
// 1 x G-LAN (Back side)
// 3 x USB (Back side)
// Power Supply DC [12V / 24V / 48V | -]
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Advantech DLT-V83
| General information | ||||
| SKU / Item Number | DLT-V83 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Vertical Segment | Mobile | ||
| Series | Intel Haswell | |||
| Number | Intel Celeron 2980U | |||
| CPU cores | 2 Pce | |||
| Threads | 2 Pce | |||
| Socket | BGA 1168 | |||
| Base frequency | 1,6 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Maximum expansion | 8 GB | ||
| Internal memory | 4 GB | |||
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Display | ||||
| Display Typ | 10.4" TFT LCD, 12.1" TFT LCD, 15.1" TFT LCD | |||
| Max. Resolution | 800 x 600, 1024 x 768 | |||
| Luminance | 400 cd/m², 500 cd/m² | |||
| Touch Screen | Type | Analog Resistive | ||
| Audio | Speaker | 1 Pce | ||
| Externe I/O (Rear Panel) | ||||
| Audio | Line Out | 1 Pce | ||
| Ethernet | RJ-45 | 1 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| RS-422 / 485 | DB-9 | 1 Pce | ||
| USB | USB 2.0 | 3 Pce | ||
| Power Supply | ||||
| Typ (Input) | AC | Range | 100~240V, - | |
| Input frequency | 50-60 Hz, - | |||
| Modules | 1 Pce, - | |||
| Connector | -, C19 | |||
| DC | Range | 12V / 24V / 48V, - | ||
| Connector | 3-pin terminal connector, - | |||
| Ignition (IGN) | -, Yes | |||
| Power supply - Input | DC: 12V / 19V ~ 28V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -30°C to 50°C | ||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 10.4", 12.1", 15.1" | ||
| Width | 289,3 mm, 328,4 mm, 390 mm | |||
| Deep | 89 mm, 94,7 mm, 98 mm | |||
| Height | 262,8 mm, 293,9 mm, 342 mm | |||
| Vibration | Reference Standard | -, MIL-STD-810F | ||
| Weight | 4300 g, 5500 g, 6200 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| System Status | 1 Pce | |||
| Antenna holes | 4 Pce | |||
| Color | Dark grey | |||
| Coating | Coating | -, Yes | ||
| Material | -, Anti-Glare Glas | |||
| Material | Aluminum | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | is supported | ||
| Linux | Distribution | Debian 10 | ||
| Supported OS | Linux, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| CCC | Yes | |||
| RoHS compliant | Yes | |||
