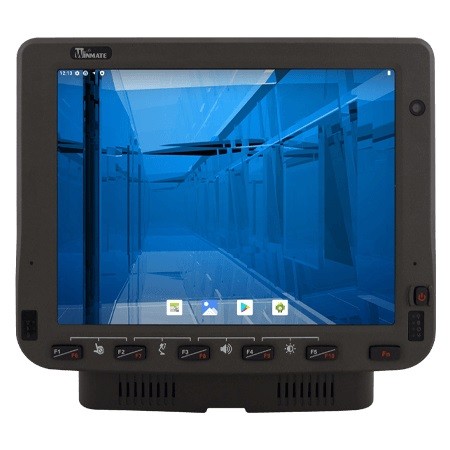

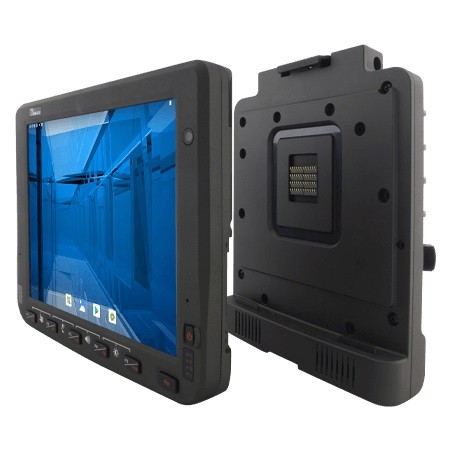

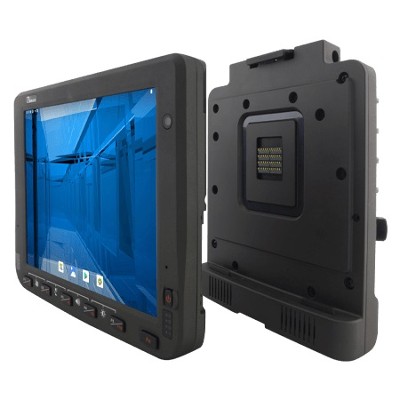

Vehicle-Mounted Computer
// 10.4" TFT LCD
// Qualcomm QCS6490
// Touchscreen (Capacitive)
// IP65 (full)
// 8 GB
// 1 x G-LAN (Back side)
// 3 x USB (Back side)
// 128 GB eMMC
// Power Supply DC 10 to 60V
// 12V
Sales only to business customers.
Delivery time: upon request
Basic Module: Winmate FM10Q9
| General information | ||||
| SKU / Item Number | FM10Q9 | |||
| Product Basic Data | ||||
| Manufacturer | Winmate | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Number | Qualcomm QCS6490 | |||
| CPU cores | 8 Pce | |||
| Base frequency | 2,7 GHz | |||
| Memory | Internal memory | 8 GB | ||
| Storage | Embedded MultiMedia Card (eMMC) | 128 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 128 GB | |||
| Graphics | ||||
| Processor | Qualcomm Adreno 643 | |||
| Display | ||||
| Display Typ | 10.4" TFT LCD | |||
| Max. Resolution | 1024 x 768 | |||
| Aspect Ratio | 4 : 3 | |||
| Contrast | 1200:1 | |||
| Luminance | 400 cd/m² | |||
| Viewing angle | Horizontal | 176 ° | ||
| Vertical | 176 ° | |||
| Backlight | Type | LED | ||
| Touch Screen | Type | Capacitive | ||
| Audio | Speaker | 2 Pce | ||
| Extension | ||||
| Storage | Micro SD | |||
| Network | ||||
| Cellular Network | GNSS (Global Navigation Satellite System) | GLONASS, GPS | ||

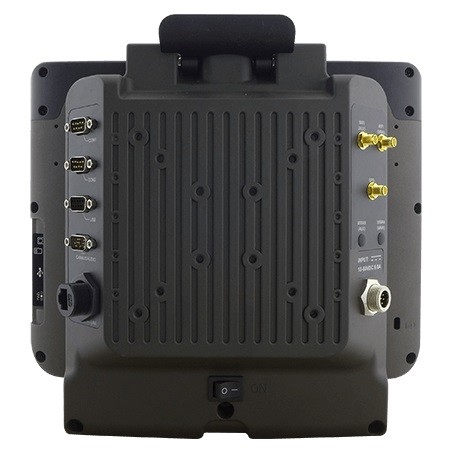

| Externe I/O (Rear Panel) | ||||
| Audio | Line Out | 1 Pce | ||
| Ethernet | RJ-45 | 1 Pce | ||
| Serial | RS-232 | DB-9 | 2 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| USB v3.0 (Type C) | 1 Pce | |||
| CAN bus | Connector | DB-15 | ||
| piece | 1 Pce | |||
| SIM | Quantity | 2 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Sensor | ||||
| 3D sensor | 3D Accelerometer | |||
| GPS module | ADR | |||
| Temperature | Yes | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | DC Power Jack | |||
| DC | Wide Range | Yes | ||
| Range | 10 to 60V | |||
| Connector | Pin 8 + power cable | |||
| Ignition (IGN) | Yes | |||
| Power supply - Input | DC: 12V, 10~60V | |||
| Battery | Type | 7.6V UPS | ||
| Battery Runtime | Standard | 0,5 h | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -30°C to 60°C | ||
| Storage | -30°C to 60°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 10.4" | ||
| Width | 268 mm | |||
| Deep | 214 mm | |||
| Height | 35 mm | |||
| IP Rating | IP65 (full) | |||
| Vibration | Reference Standard | MIL-STD-810G Method 514.6 Procedure I | ||
| Shock | Reference Standard | MIL-STD-810G Method 516.6 Procedure I | ||
| Weight | 1600 g | |||
| Camera | Front | Resolution | 2 MP | |
| Controls | Power | 1 Pce | ||
| Status indicators | Wi-Fi | 1 Pce | ||
| Bluetooth | 1 Pce | |||
| System Status | 2 Pce | |||
| Battery | 1 Pce | |||
| SMA connector | 3 Pce | |||
| Docking Connector | 1 x 19 pin docking connector | |||
| Color | Black | |||
| Material | Aluminum | |||
| Mounting option | Hook, VESA | |||
| OS / Software | ||||
| Android | Release | 15.10 | ||
| Supported OS | Android | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | EN 61000-4-2 (Electrostatic Discharge), EN 62262, SOTI MobiControl Compliance | |||
| RoHS compliant | Yes | |||
