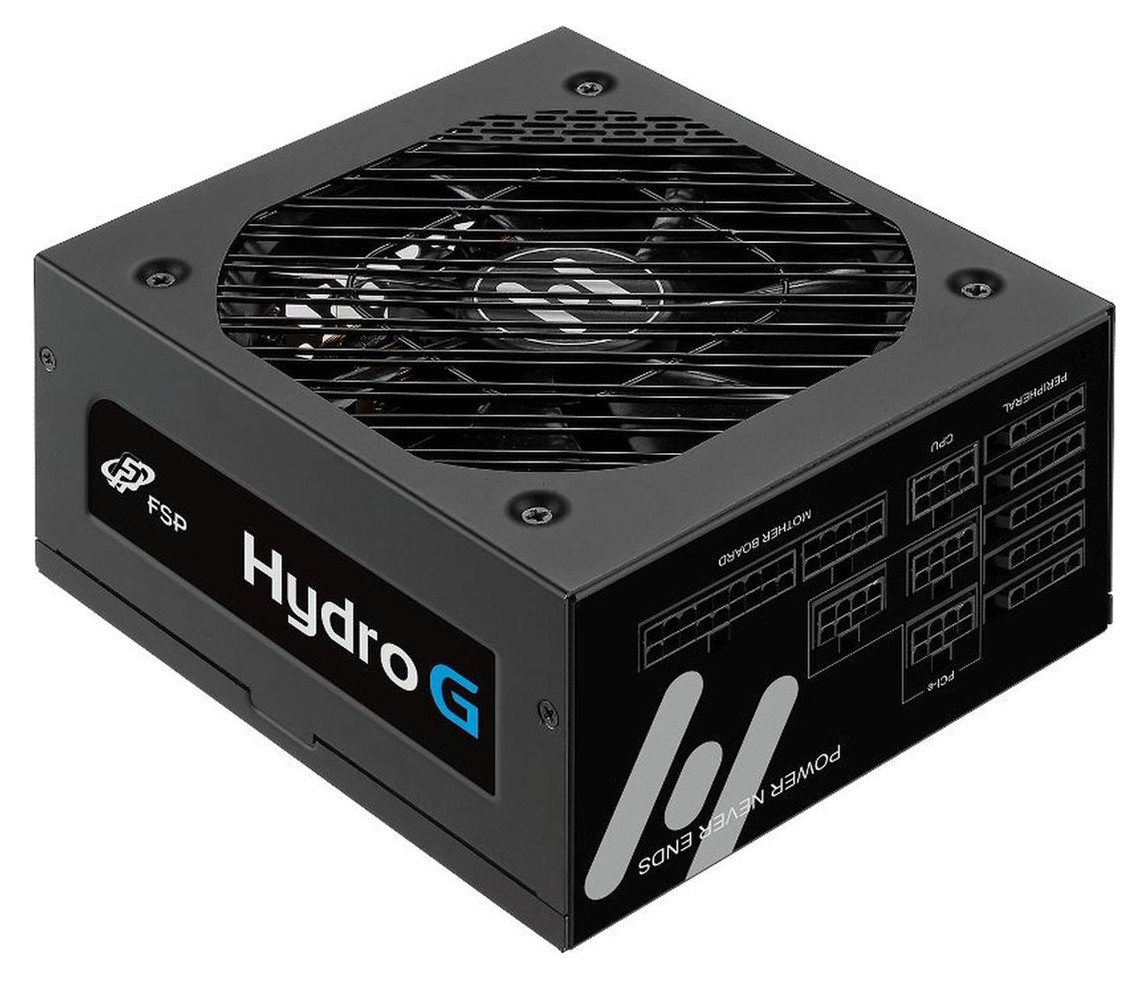

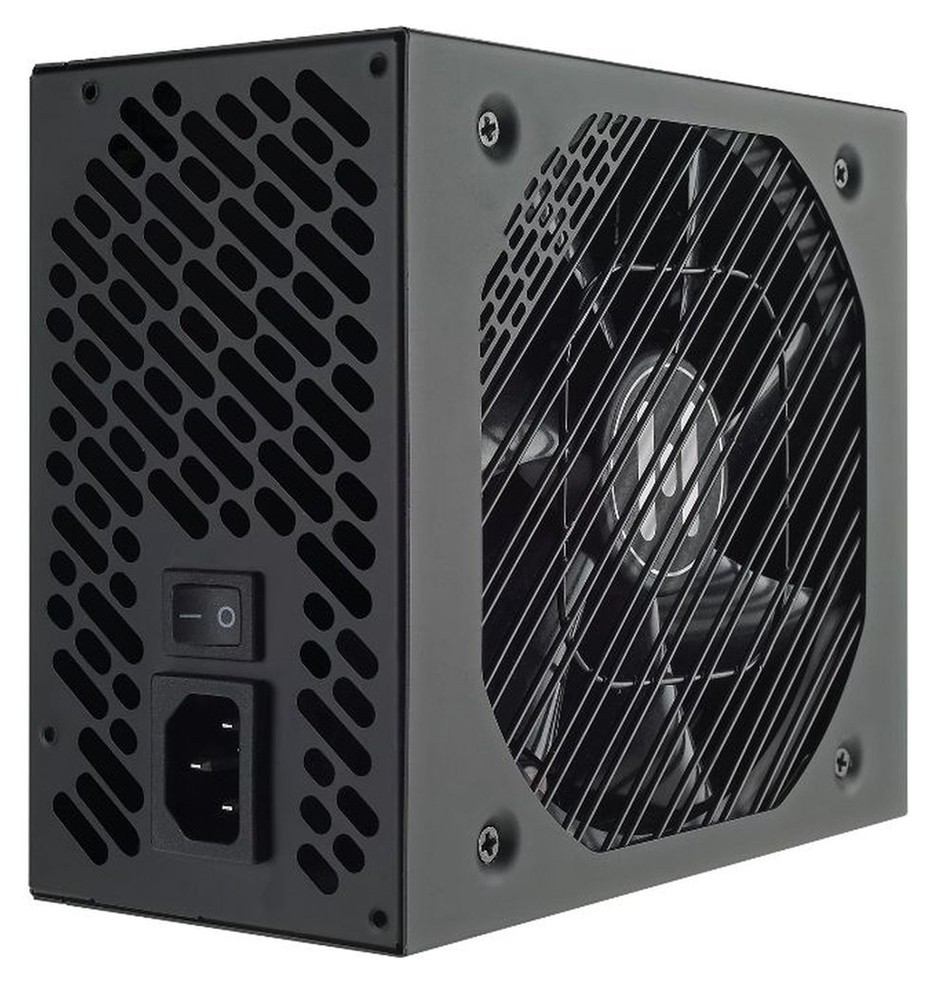

Fortron Source HYDRO G650

PS/2 Power Supplies - Single

PRODUCT FEATURES

// PS/2 Power Supplies - Single
// 650 W

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Fortron Source HYDRO G650

General information
	SKU / Item Number			HYDRO G650
Product Basic Data
	Manufacturer			Fortron Source
Power Supply
	Typ (Input)	AC	Range	100~240V
			Input frequency	50-60 Hz
	Power supply - Input			AC: 100-240V
	Output wattage			650 W
	Output Voltage	+5V	Output Current Max	25 A
		+12V	Output Current Max	54 A
		-12V	Output Current Max	0,5 A
		+3.3V	Output Current Max	25 A
		+5V Standby	Output Current Max	3,5 A
	Efficiency	At 100% load / 25°C		90 %
Mechanical / Environment
	Temperature	Operation		0° to 50°C
	Dimensions	Form factor		PS/2
		Width		150 mm
		Deep		170 mm
		Height		86 mm
	Weight			2460 g
Certificates / Conformities
	CE			Yes
	FCC	Class B		Yes
	CCC			Yes
	Additional certificates / compliance approvals			IEC 60950-1
	RoHS compliant			Yes
