Open-Frame Power Supplies
// Open-Frame Power Supplies
// 150 W
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

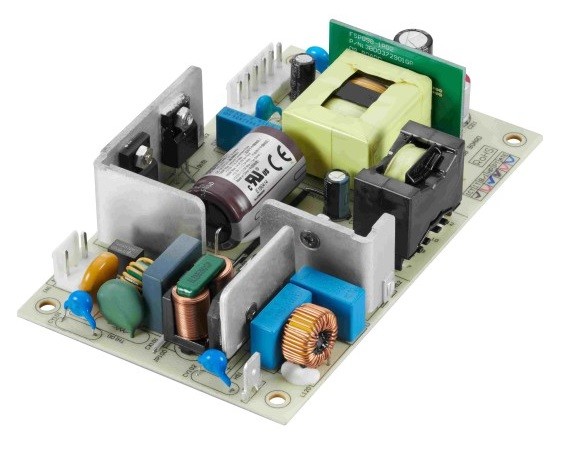

Basic Module: Fortron Source FSP150-P35 D series
| General information | ||||
| SKU / Item Number | FSP150-P35 D series | |||
| Product Basic Data | ||||
| Manufacturer | Fortron Source | |||
| Power Supply | ||||
| Typ (Input) | AC | Range | 90~264V | |
| Input frequency | 47 to 63 Hz | |||
| Power supply - Input | AC: 90~264V | |||
| Output wattage | 150 W | |||
| Efficiency | At 100% load / 25°C | 90 % | ||
| Typ (Output) | DC | Wide Range | No | |
| Range | 12V, 24V, 54V | |||
| Current | 2,77 A, 6,25 A, 12,5 A | |||
| Output Ripple & Noise Max | 120 mV, 200 mV, 300 mV | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° down to 70°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | Open frame (PCB) | ||
| Width | 76,2 mm | |||
| Deep | 127 mm | |||
| Height | 31,6 mm | |||
| Weight | 187 g | |||
| MTBF (Mean Time Between Failures) | MTBF at 25°C | 400.000 h | ||
| Calculation model | Telcordia SR 332 | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | CB, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge Protection), EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, IEC 62368-1 | |||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
