Mainboards with Special Sizes
The product is EOL (End Of Life)!
// Special format Industrial Mainboards
// Freescale i.MX 6Solo
// 1 GB
// [1 | -] x HDMI
// LVDS
// 1 x G-LAN
// 2 x USB
// 1 x USB (internal)
// 1 x Seriell I/O
// [4 GB | -] eMMC
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

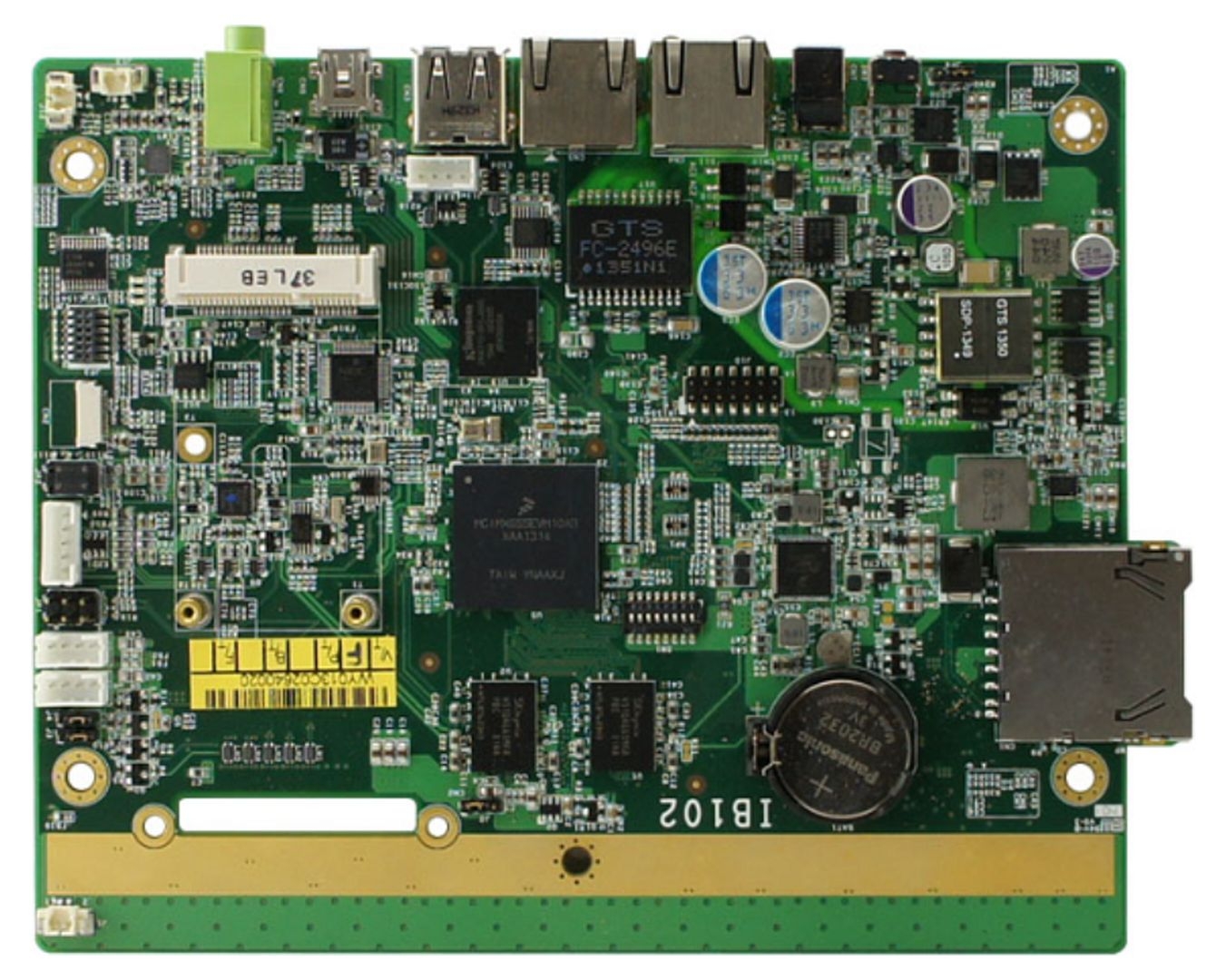

Basic Module: IBASE IB102 SF
| General information | ||||
| SKU / Item Number | IB102 SF | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Series | ARM Cortex-A9 | ||
| Number | Freescale i.MX 6Solo | |||
| CPU cores | 1 Pce | |||
| Socket | BGA PoP | |||
| Base frequency | 1 GHz | |||
| Cache | 0,5 MB | |||
| Memory | Internal memory | 1 GB | ||
| Storage | Embedded MultiMedia Card (eMMC) | 4 GB, - | ||
| Graphics | ||||
| Performance feature | Support | OpenGL ES 2.0 | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1366 x 768 at 60 Hz | ||
| Bits | 24-bit | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| Storage | SD / MMC card | |||
| Network | ||||
| G-LAN | Controller | Quantity | 1 Pce | |
| Network | 1x G-LAN | |||
| External I/O | ||||
| Ethernet | RJ-45 | 1 Pce | ||
| USB | USB 2.0 | 1 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| Display | HDMI | 1 Pce, - | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 1 Pce | |
| Display | LVDS (Low Voltage Differential Signaling) | Single channel | ||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Range | 12V | |
| Connector | DC barrel connector | |||
| PoE (Power over Ethernet) | Protocol | -, IEEE 802.3at / 30W | ||
| POE+ | Voltage | 12V, - | ||
| Power supply - Input | DC: 12V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Linux | Kernel | 3.0.35 | ||
| Android | Release | 4.3 | ||
| Supported OS | Android, Linux | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | Special format | ||
| Width | 131 mm | |||
| Deep | 160 mm | |||
| Controls | Reset | 1 Pce | ||
| Status indicators | Gigabit Ethernet | 1 Pce, - | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
