EPIC Mainboards
// EPIC Industrial Mainboards
// [Intel Atom x5-E3930 | Intel Atom x5-E3940 | Intel Atom x7-E3950 | Intel Celeron N3350 | Intel Pentium N4200]
// SoC (System on a Chip)
// 1 x DVI-D
// 1 x Displayport
// LVDS
// 2 x G-LAN
// 4 x USB
// 4 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (16-Bit)
// 1 x Mini-PCIe
// Power Supply DC 12 to 48V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

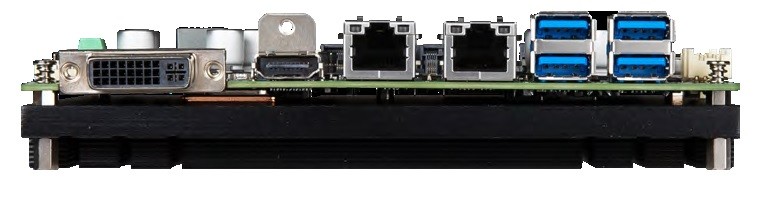

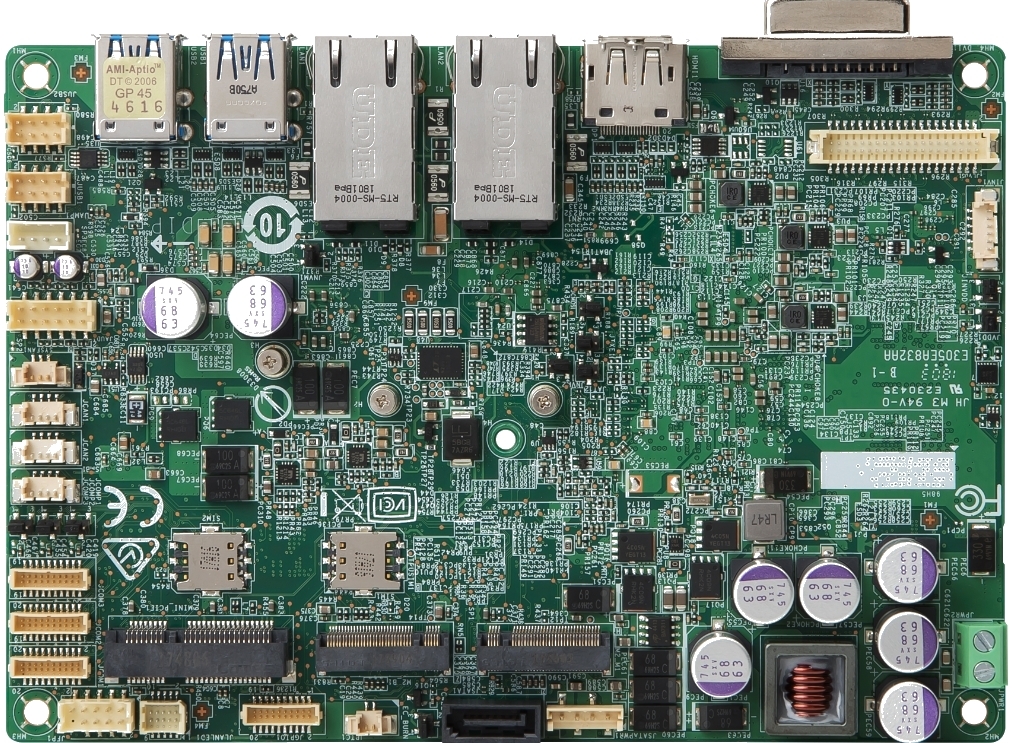

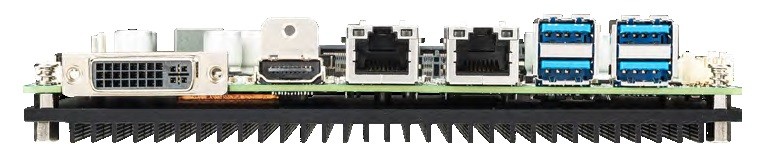

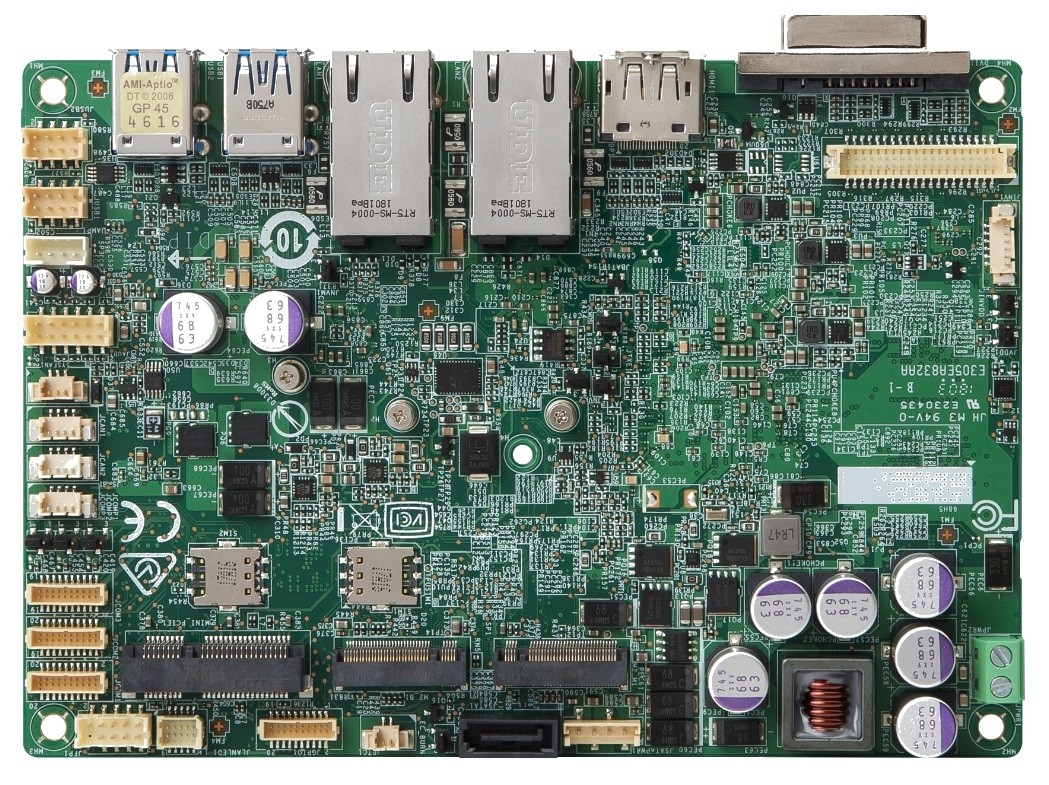

Basic Module: MSI MS-98H5
| General information | ||||
| SKU / Item Number | MS-98H5 | |||
| Product Basic Data | ||||
| Manufacturer | MSI | |||
| System | ||||
| Processor | Series | Intel Apollo Lake | ||
| Number | Intel Atom x5-E3930, Intel Atom x5-E3940, Intel Atom x7-E3950, Intel Celeron N3350, Intel Pentium N4200 | |||
| CPU cores | 2 Pce, 4 Pce | |||
| Threads | 2 Pce, 4 Pce | |||
| Socket | BGA 1296 | |||
| Base frequency | 1,1 GHz, 1,3 GHz, 1,6 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 6 W, 6,5 W, 9,5 W, 12 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Frequency | 2133 / 2400 MHz | |||
| Maximum expansion | 4 GB | |||
| BIOS | AMI BIOS | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81867D-I | |
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| DVI | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| PCIe Interfaces | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | SATA III | |||
| Supported dimensions | 2242 | |||
| Slot 2 | Key ID | B | ||
| Interface | PCIe ×1 (Gen. 2), USB 2.0 | |||
| Supported dimensions | 3042 | |||
| M.2 Key IDs | B, M | |||
| SIM | PCIe / USB 2.0 Support | 3 Pce | ||
| Storage | mSATA | |||
| Audio | ||||
| Chipset | Realtek ALC887 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210IT PCIe (10/100/1000 Mbps), Intel I211AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.0 | 4 Pce | ||
| Display | DVI | DVI-D signal | 1 Pce | |
| DisplayPort | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 4 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 2 Pce | ||
| Display | LCD / Inverter Power | Yes | ||
| LVDS (Low Voltage Differential Signaling) | Dual channel | |||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 16-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| CAN bus | Version 2.0B (with isolation) | 2 Pce | ||
| Channel | 2 Pce | |||
| Protocol | CAN 2.0B | |||
| Audio | Line-in | 1 Pce | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Verstärker | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | -, Infineon SLB 9665 XT 2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 48V | |||
| Connector | DC barrel connector | |||
| PoE (Power over Ethernet) | Protocol | -, IEEE 802.3af / 15.4W | ||
| Power supply - Input | DC: 12 to 48V | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Supported OS | Windows | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -10° to 60°C, -40°C to 85°C | ||
| Storage | -20° to 80°C, -40°C to 85°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Storage | 10 to 90%, non-condensing | |||
| Dimensions | Form factor | EPIC | ||
| Width | 115 mm | |||
| Deep | 165 mm | |||
| Weight | 420 g, 670 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
