EPIC Mainboards
// EPIC Industrial Mainboards
// [Intel Atom D2550 | Intel Atom N2600 | Intel Atom N2800]
// Intel NM10
// 204-pin SO-DIMM DDR3
// 1 x DVI-I
// LVDS
// 2 x G-LAN
// 4 x USB
// 2 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x Mini-PCIe
// Power Supply DC 9 to 36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

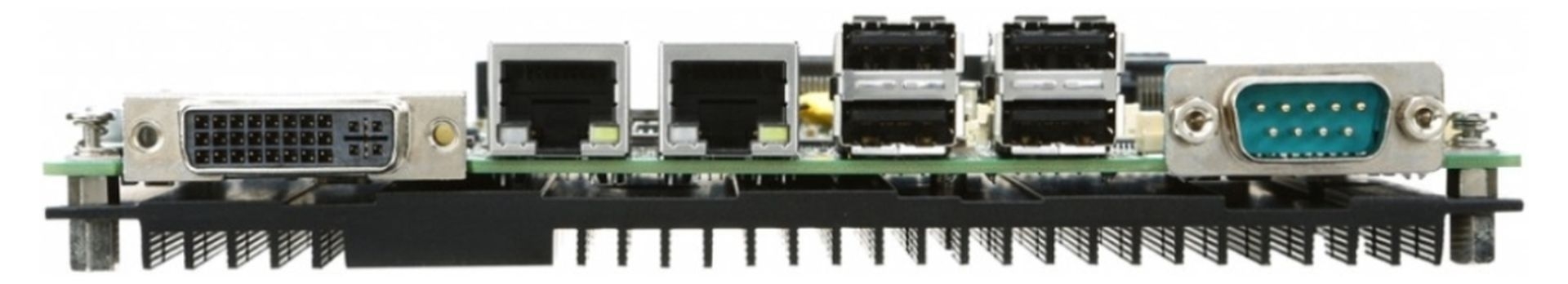

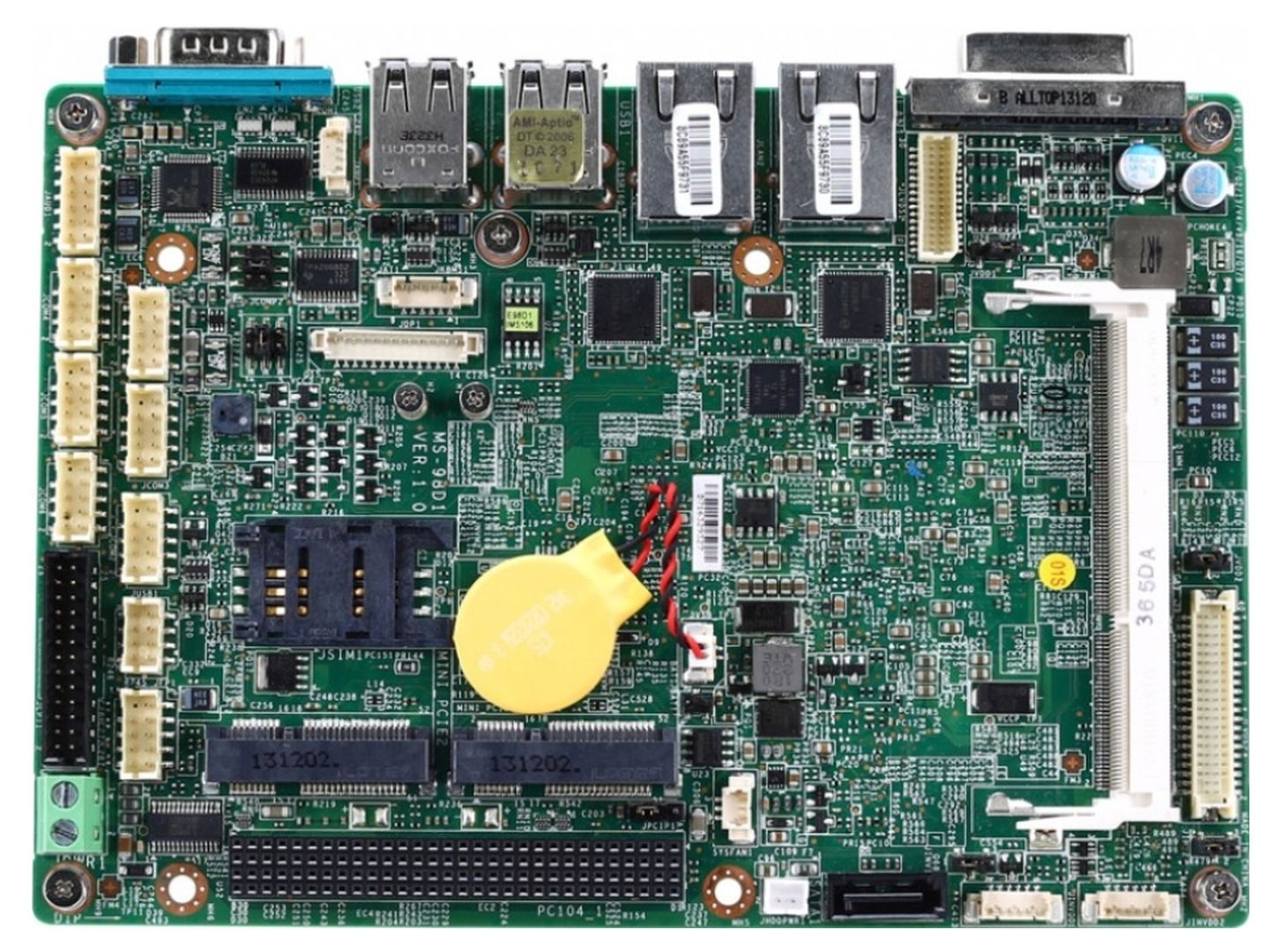

Basic Module: MSI MS-98D1
| General information | ||||
| SKU / Item Number | MS-98D1 | |||
| Product Basic Data | ||||
| Manufacturer | MSI | |||
| System | ||||
| Processor | Series | Intel Cedarview | ||
| Number | Intel Atom D2550, Intel Atom N2600, Intel Atom N2800 | |||
| CPU cores | 2 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 559 | |||
| Base frequency | 1,6 GHz, 1,86 GHz | |||
| Cache | 1 MB | |||
| Thermal Design Power (TDP) | 3,5 W, 6,5 W, 10 W | |||
| Chipset | Intel NM10 | |||
| Memory | Structure | 204-pin SO-DIMM DDR3 | ||
| Frequency | 800 / 1066 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 2 GB, 4 GB | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81866 / AD | |
| Graphics | ||||
| Processor | Intel Graphics Media Accelerator (GMA) 3650 | |||
| Screens (Multi-display) | 2 displays | |||
| DVI | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1366 x 768 at 60 Hz, 1440 x 990 | ||
| Bits | 18 bits, 24-bit | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 2 Pce | |
| mSATA support | Yes | |||
| PCIe Interfaces | 2x Mini-PCIe slots | |||
| PCI-104 | 1 Pce | |||
| SIM | PCIe / USB 2.0 Support | 1 Pce | ||
| Storage | mSATA | |||
| Audio | ||||
| Chipset | Realtek ALC887 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 4 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| Display | DVI | DVI-I Signal | 1 Pce | |
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| PS/2 | pin header | 1 Pce | ||
| Serial | RS-232 | Ports (2.00 mm pitch) | 5 Pce | |
| Parallel | Ports (2.00 mm pitch) | 1 Pce | ||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial ATA | S-ATA R2.0 (3 Gbps, 300 MB/s) | 1 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 9~36V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows 7 (32/64-bit) | is supported | ||
| Supported OS | Windows | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -10° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Storage | 10 to 90%, non-condensing | |||
| Dimensions | Form factor | EPIC | ||
| Width | 115 mm | |||
| Deep | 165 mm | |||
| Weight | 370 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
