EPIC Mainboards
// EPIC Industrial Mainboards
// [Intel Atom E3845 | Intel Celeron J1900]
// SoC (System on a Chip)
// 204-pin SO-DIMM DDR3L
// LVDS
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply ATX
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

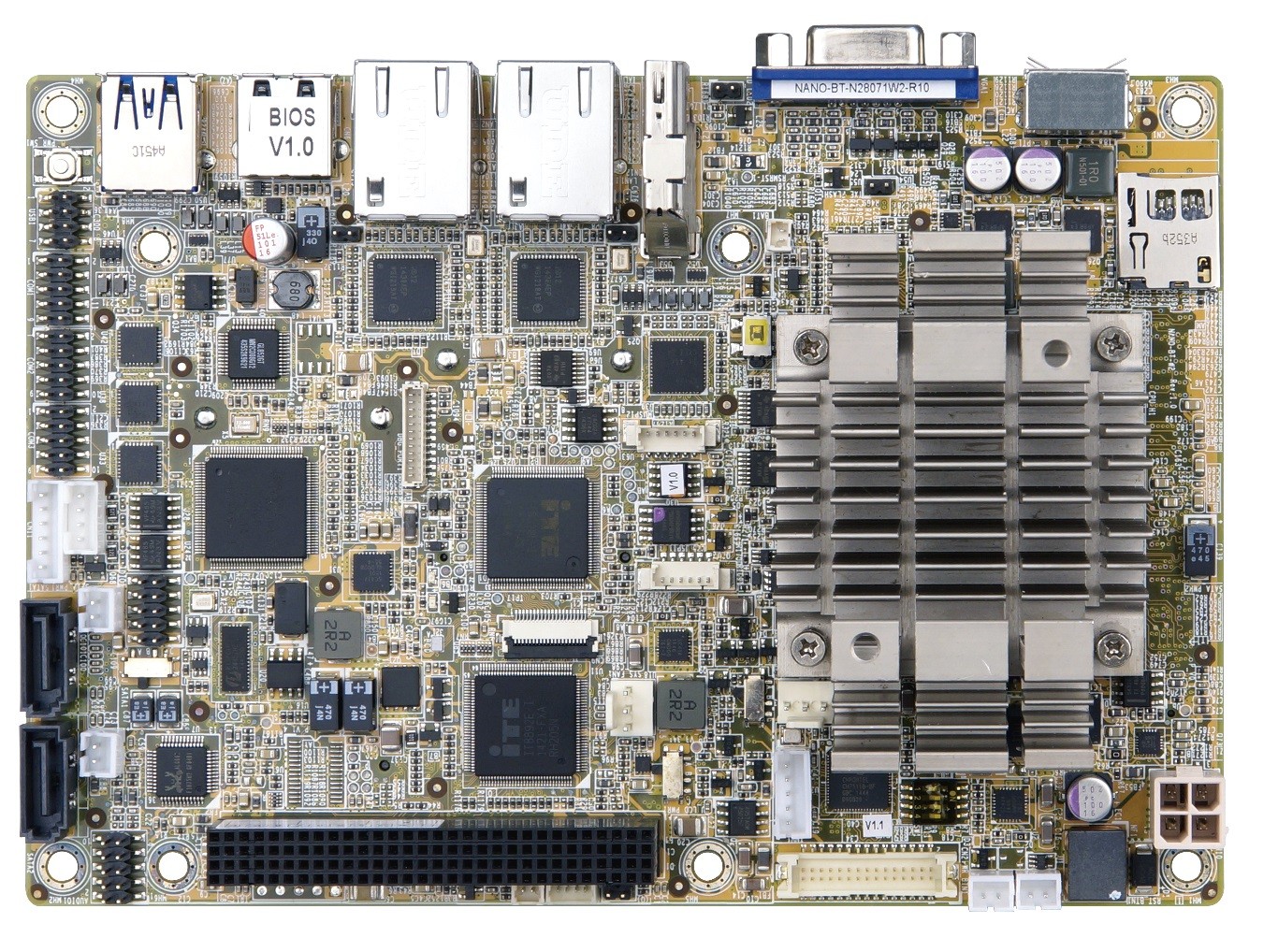

Basic Module: IEI NANO-BTW2
| General information | ||||
| SKU / Item Number | NANO-BTW2 | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| System | ||||
| Processor | Series | Intel Bay Trail | ||
| Number | Intel Atom E3845, Intel Celeron J1900 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1170 | |||
| Base frequency | 1,91 GHz, 2 GHz | |||
| Max Turbo Frequency | 2,42 GHz, - | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 10 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Memory Type | DDR3 | |||
| Frequency | 1066 / 1333 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 8 GB | |||
| BIOS | AMI BIOS | |||
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Screens (Multi-display) | 2 displays | |||
| VGA | Maximum resolution | 2560 x 1600 at 60 Hz | ||
| HDMI | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| mSATA support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| PCI-104 | 1 Pce | |||
| Storage | Micro SD, mSATA | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps), Intel I210IT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

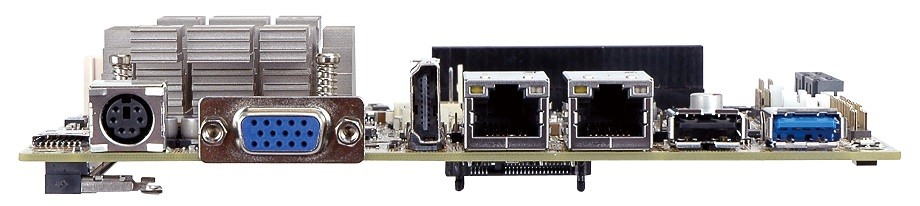

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| PS/2 | mini-DIN-6 | 1 Pce | ||
| USB | USB 2.0 | 1 Pce | ||
| USB 3.2 (Gen 1) | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 3 Pce | |
| RS-422 / 485 | Ports (2.00 mm pitch) | 1 Pce | ||
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Serial ATA | S-ATA R2.0 (3 Gbps, 300 MB/s) | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 4-pin ATX (12V DC) | |
| Power supply - Input | ATX: 4-Pin ATX (12V DC) | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C, -40°C to 85°C | ||
| Storage | -30°C to 70°C, -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | EPIC | ||
| Width | 115 mm | |||
| Deep | 165 mm | |||
| Weight | 350 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
