EPIC Mainboards
// EPIC Industrial Mainboards
// LGA 1851
// [Intel H810 | Intel Q870]
// 262-pin SO-DIMM DDR5
// LVDS
// [1 | 2] x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (16-Bit)
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

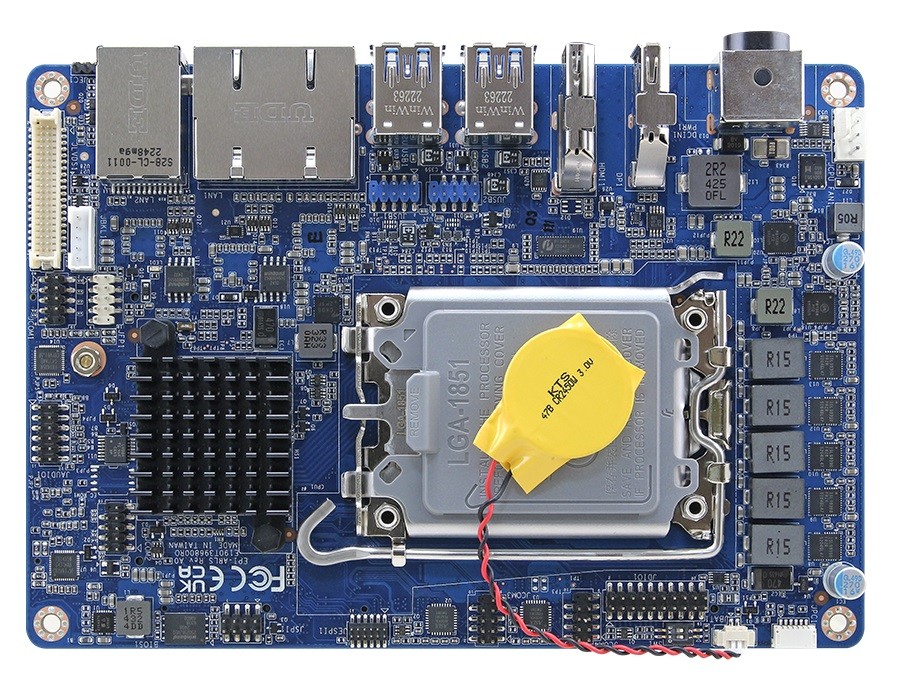

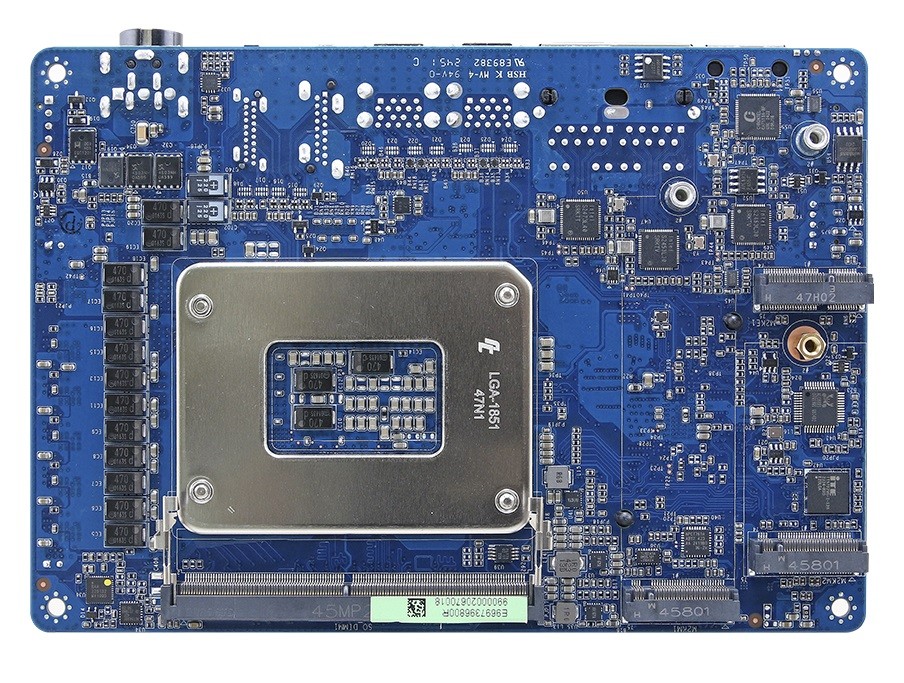

Basic Module: Avalue EPI-ARLS
| General information | ||||
| SKU / Item Number | EPI-ARLS | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| System | ||||
| Processor | Series | Intel Meteor Lake | ||
| Socket | LGA 1851 | |||
| Thermal Design Power (TDP) | 35 W | |||
| Chipset | Intel H810, Intel Q870 | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequency | 6400 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 48 GB | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O controller | Controller 1 | I/O controller | ITE IT5782VG | |
| Graphics | ||||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 2.0 | |||
| DisplayPort | Maximum resolution | 7680 x 4320 at 60 Hz | ||
| Version | 2.0 | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Bits | 24-bit | |||
| Bridge | Chrontel CH7513A-BF | |||
| eDP (Embedded DisplayPort) | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 3), USB 2.0, Wi-Fi | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen 4), SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 3 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen 4), SATA III | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce, 2 Pce | |||
| Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 1x G-LAN | |||

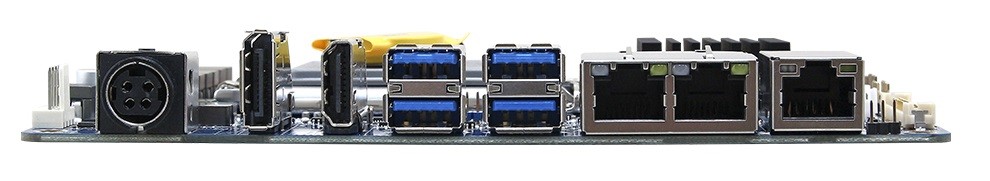

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| Ethernet | RJ-45 | 1 Pce, 2 Pce | ||
| USB | USB 3.2 (Gen 1) | 2 Pce, - | ||
| USB 3.2 (Gen 2) | 2 Pce, 4 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 2 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 2 Pce | ||
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| eDP (Embedded DisplayPort) lanes | 2 Pce | |||
| Digital I/O | Bits | 16-bit | 1 Pce | |
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Nuvoton NPCT760AABYX | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 4-pin connector (Kycon, Singatron, or similar) | |||
| Power supply - Input | DC: 12V | |||
| OS / Software | ||||
| Windows | Windows 11 | Supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 75°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | EPIC | ||
| Width | 165 mm | |||
| Deep | 115 mm | |||
| Weight | 300 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
