5.25" Mainboards
The product is EOL (End Of Life)!
// 5.25" Industrial Mainboards
// [Intel Core i3-330E | Intel Core i7-610E]
// Intel QM57
// 240-pin DDR3 DIMM
// 1 x VGA
// 1 x HDMI
// 1 x DVI-D
// 1 x Displayport
// 1 x G-LAN
// 8 x USB
// 4 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

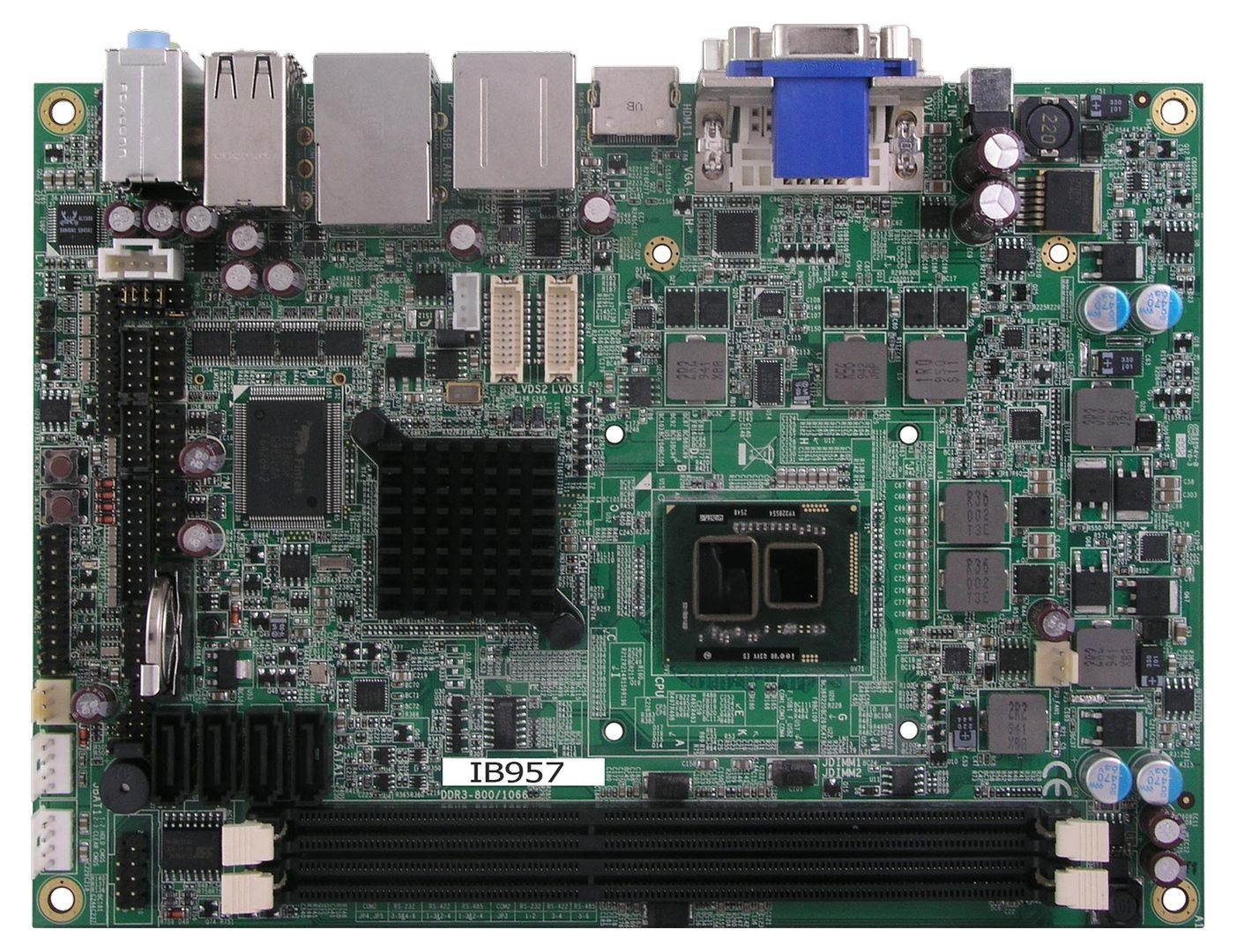

Basic Module: IBASE IB957
| General information | ||||
| SKU / Item Number | IB957 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Series | Intel Arrandale | ||
| Number | Intel Core i3-330E, Intel Core i7-610E | |||
| CPU cores | 2 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1288 | |||
| Base frequency | 2,13 GHz, 2,53 GHz | |||
| Cache | 3 MB, 4 MB | |||
| Thermal Design Power (TDP) | 35 W | |||
| Chipset | Intel QM57 | |||
| Memory | Structure | 240-pin DDR3 DIMM | ||
| Frequency | 800 / 1066 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 8 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81865F | |
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Screens (Multi-display) | 2 displays | |||
| LVDS (Low Voltage Differential Signaling) | Bits | 24-bit | ||
| Audio | ||||
| Chipset | Realtek ALC888 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel 82577LM (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Active Management Technology (AMT) version | 6.0, - | |||
| Network | 1x G-LAN | |||
| External I/O | ||||
| Ethernet | RJ-45 | 1 Pce | ||
| USB | USB 2.0 | 8 Pce | ||
| PS/2 | mini-DIN-6 | 1 Pce | ||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| DVI | DVI-D signal | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| Audio | Line-in | 1 Pce | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 3 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 1 Pce | ||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial ATA | S-ATA R2.0 (3 Gbps, 300 MB/s) | 4 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | DC barrel connector | |||
| Power supply - Input | DC: 12V | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Dimensions | Form factor | 5.25" | ||
| Width | 146 mm | |||
| Deep | 203 mm | |||
| Lifecycle | ||||
| Expected until | Q2, 2019 | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
