DFI WLN51

4" Mainboards

PRODUCT FEATURES

// 4 inches Industrial Mainboards
// Intel Celeron 4205U
// SoC (System on a Chip)
// 260-pin DDR4 SO-DIMM
// 4 x USB (Back side)
// 64 GB eMMC
// Power Supply DC 12V

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION

Basic Module: DFI WLN51

General information
SKU / Item NumberWLN51
Product Basic Data
ManufacturerDFI
System
ProcessorVertical SegmentMobile
SeriesIntel Whiskey Lake
NumberIntel Celeron 4205U
CPU cores2 Pce
Threads2 Pce
SocketBGA 1528
Base frequency1,8 GHz
Cache2 MB
Thermal Design Power (TDP)15 W
ChipsetSoC (System on a Chip)
MemoryStructure260-pin DDR4 SO-DIMM
Memory TypeDDR4
DIMM TypeUnbuffered SO-DIMM
DIMM data transfer rate2400 MT/s
Slots1 Pce
Maximum expansion32 GB
StorageEmbedded MultiMedia Card (eMMC)64 GB
BIOSAMI SPI 128 Mbit
I/O controllerController 1I/O controllerNuvoton NCT5525D
Power supply - InputEmbedded MultiMedia Card (eMMC) 64 GB
Graphics
ProcessorIntel UHD Graphics
HDMIVersion2.0b

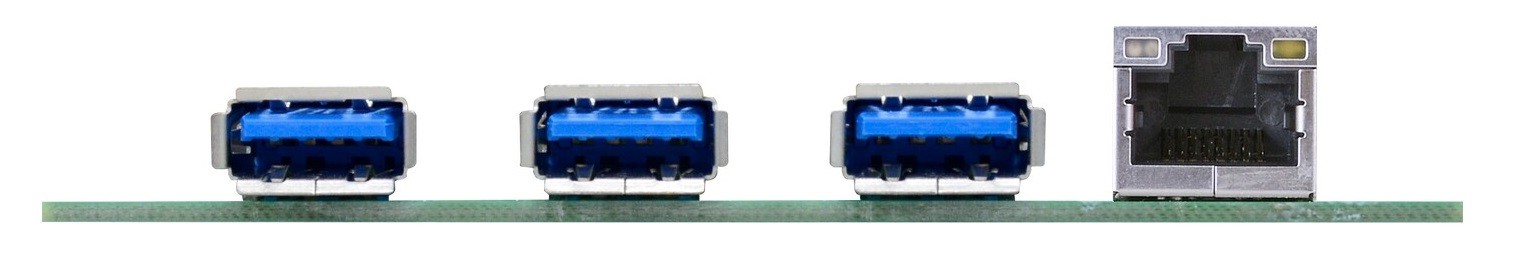

Externe I/O (Rear Panel)
DisplayMini HDMI1 Pce
USBUSB 2.01 Pce
USB 3.1 Gen 13 Pce
Watchdog Timer
Watchdog TimerYes
Watchdog timer (interval)Programmable via software (1 - 255 seconds)
Safety
Trusted Platform Module (TPM)Intel PTT (like TPM 2.0)
Power Supply
Typ (Input)DCWide RangeNo
Range12V
ConnectorDC Power Jack
Power supply - InputDC: 12V
OS / Software
Windows EmbeddedWindows 10 Enterprise IoT LTSC (2019)is supported
Supported OSWindows Embedded
Mechanical / Environment
TemperatureOperation0° to 55°C
Storage-40°C to 85°C
DimensionsForm factor4 inches
Width100 mm
Deep100 mm
Certificates / Conformities
CEYes
RoHS compliantYes
