4" Mainboards
// 4 inches Industrial Mainboards
// Intel Core i7-7600U
// SoC (System on a Chip)
// 260-pin DDR4 SO-DIMM
// 256 GB SSD (mSATA)
// 1 x HDMI
// 4 x G-LAN
// 6 x USB
// 1 x Mini-PCIe
// Power Supply DC 15~36V
Please configure your desired product.
Standard Configuration
Sales only to business customers.
Delivery time: upon request

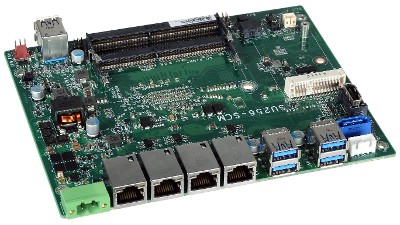

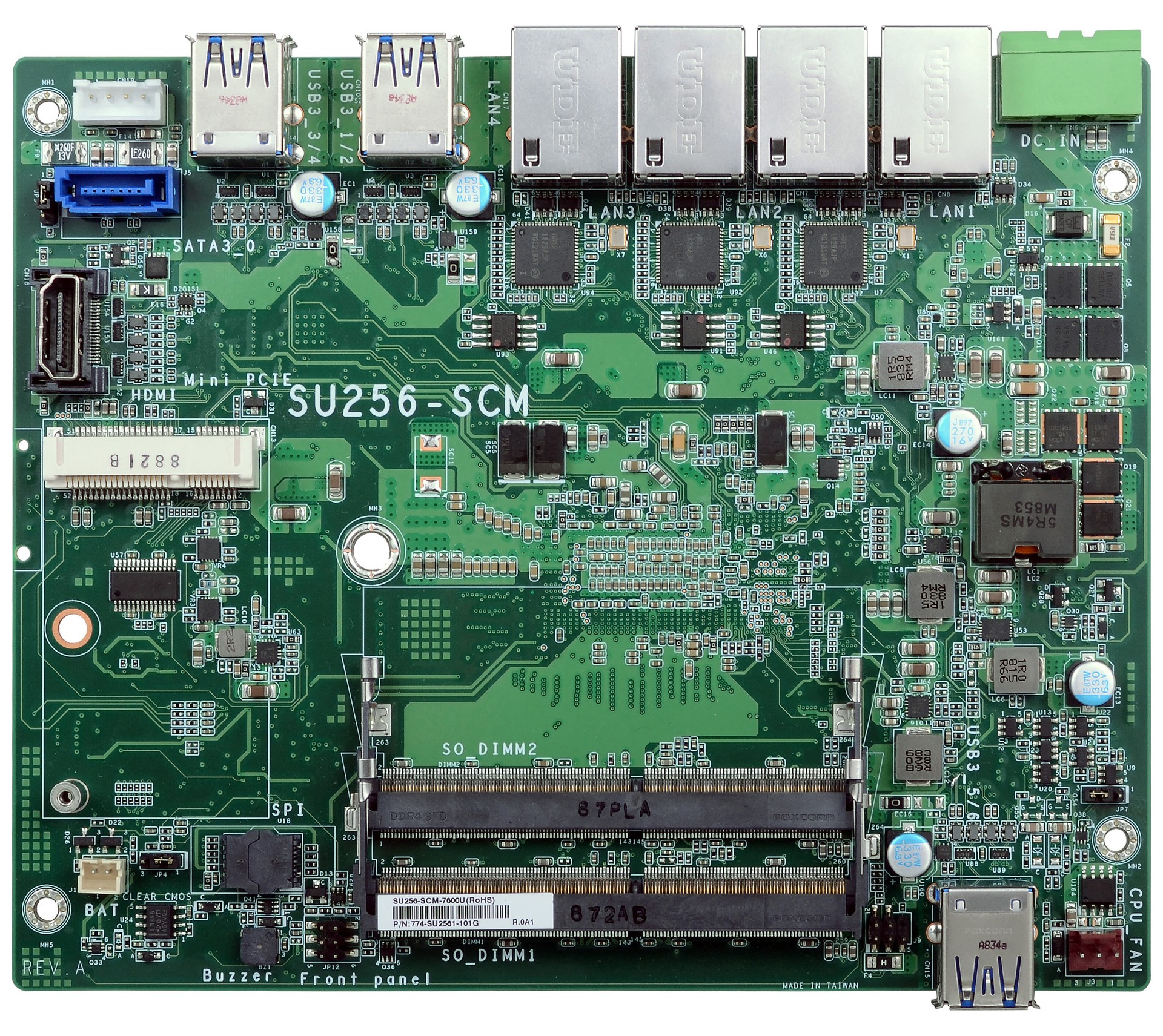

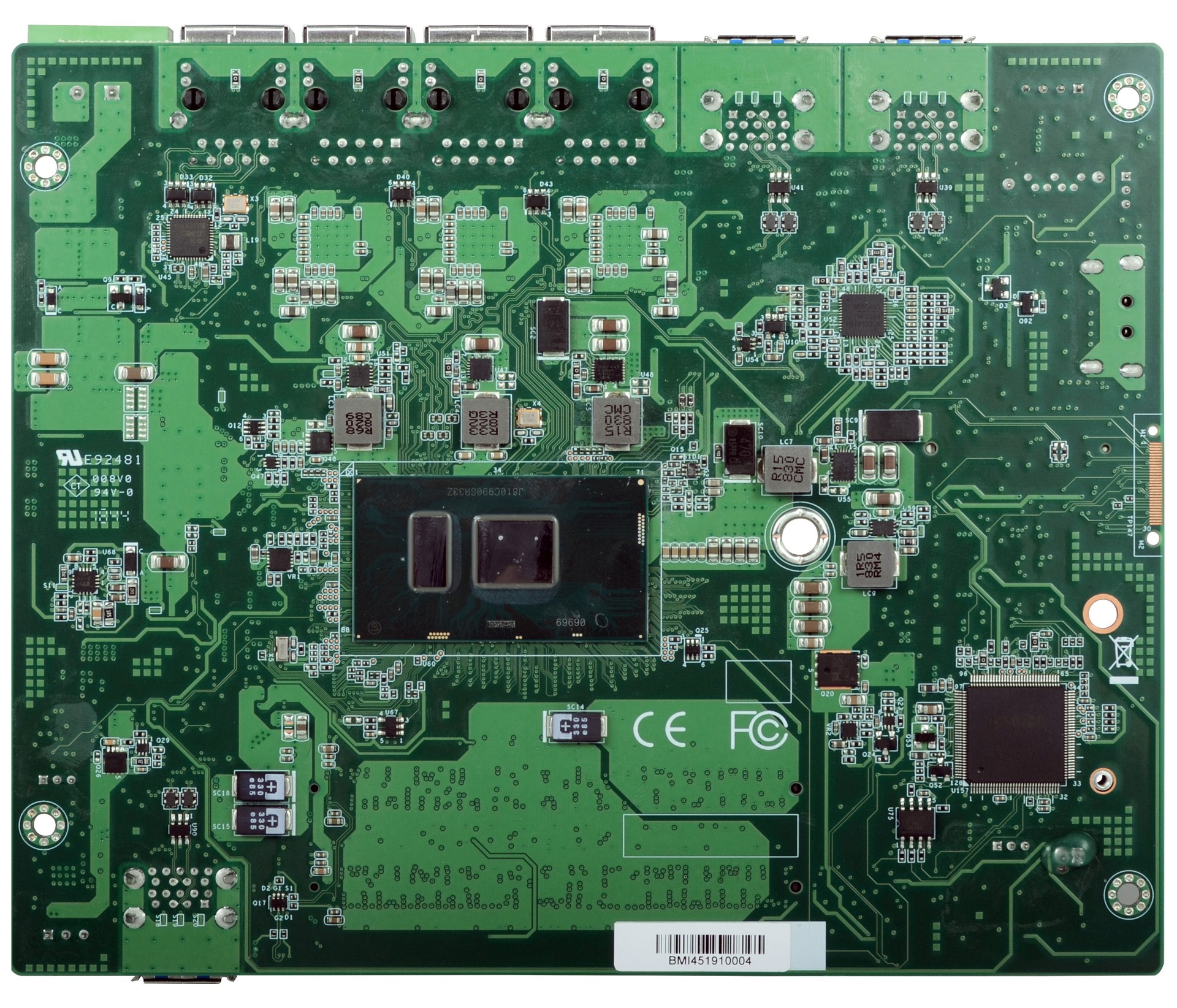

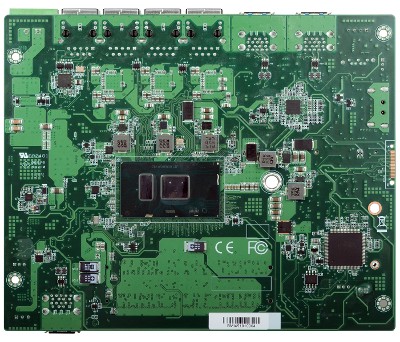

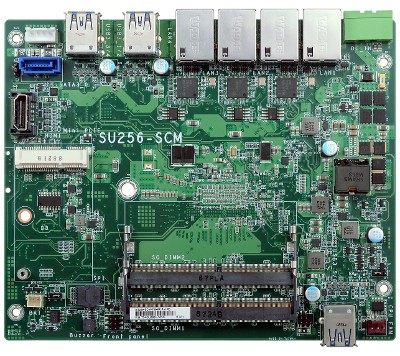

Basic Module: DFI SU256-SCM
| General information | ||||
| SKU / Item Number | SU256-SCM | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| Product ID | 770-SU2561-000G | |||
| System | ||||
| Processor | Series | Intel Kaby Lake | ||
| Number | Intel Core i7-7600U | |||
| CPU cores | 2 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1356 | |||
| Base frequency | 2,8 GHz | |||
| Thermal Design Power (TDP) | 15 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Frequency | 2133 / 2400 MHz | |||
| Slots | 2 Pce | |||
| Internal memory | 16 GB | |||
| Storage | Solid State Drive (mSATA) | 256 GB | ||
| BIOS | AMI UEFI 128 Mbit SPI | |||
| Power supply - Input | Solid State Drive (mSATA) 256 GB | |||
| Graphics | ||||
| Processor | Intel HD Graphics GT | |||
| Performance feature | Support | DirectX 12, OpenCL 2.1, OpenGL 5.0 | ||
| Hardware decoding | AVC / H.264, HEVC / H.265, JPEG / MJPEG, MPEG2, VC1 / WMV9, VP 8, VP 9 | |||
| HW encoding | AVC / H.264, HEVC / H.265, JPEG, MPEG2, VP 8, VP 9 | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| PCIe Interfaces | 1x Mini-PCIe | |||
| Storage | mSATA | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210IT PCIe (10/100/1000 Mbps) | |
| Quantity | 3 Pce | |||
| Controller | Chipset | Intel I219LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 4x G-LAN | |||
| External I/O | ||||
| Ethernet | RJ-45 | 4 Pce | ||
| USB | USB 3.0 | 6 Pce | ||
| Display | HDMI | 1 Pce | ||
| Internal I/O | ||||
| SMBus | 1 Pce | |||
| LPC | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Chassis Intrusion Detection | Yes | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 15~36V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 15 to 36V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows 7 (32/64-bit) | is supported | ||
| Windows 8 (64-bit) | is supported | |||
| Windows 8.1 (64-bit) | is supported | |||
| Windows 10 (64-bit) | is supported | |||
| Windows Embedded | WES7E | is supported | ||
| WES7P | is supported | |||
| WE8S | is supported | |||
| Linux | Distribution | CentOS 7 | ||
| Supported OS | Linux, Windows, Windows Embedded | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° down to 70°C | ||
| Storage | -40°C to 85°C | |||
| Dimensions | Form factor | 4 inches | ||
| Width | 135 mm | |||
| Deep | 165 mm | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
We are happy to advise you personally.
