4" Mainboards
// 4 inches Industrial Mainboards
// [Intel Atom E3845 | Intel Celeron J1900]
// SoC (System on a Chip)
// [2 GB | 4 GB]
// 4 x G-LAN
// 5 x USB
// 1 x USB (internal)
// 3 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x Mini-PCIe
// Power Supply DC 16 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

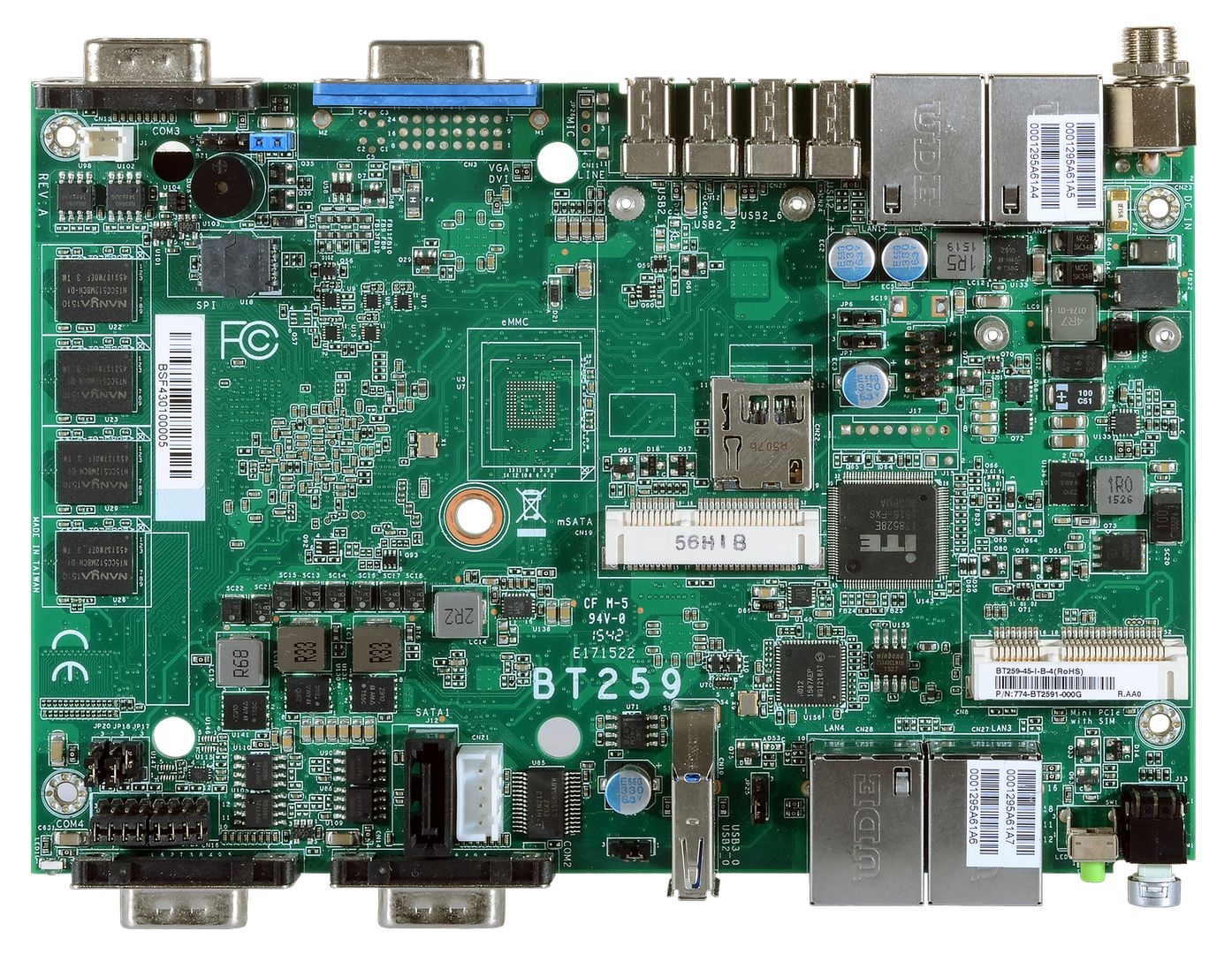

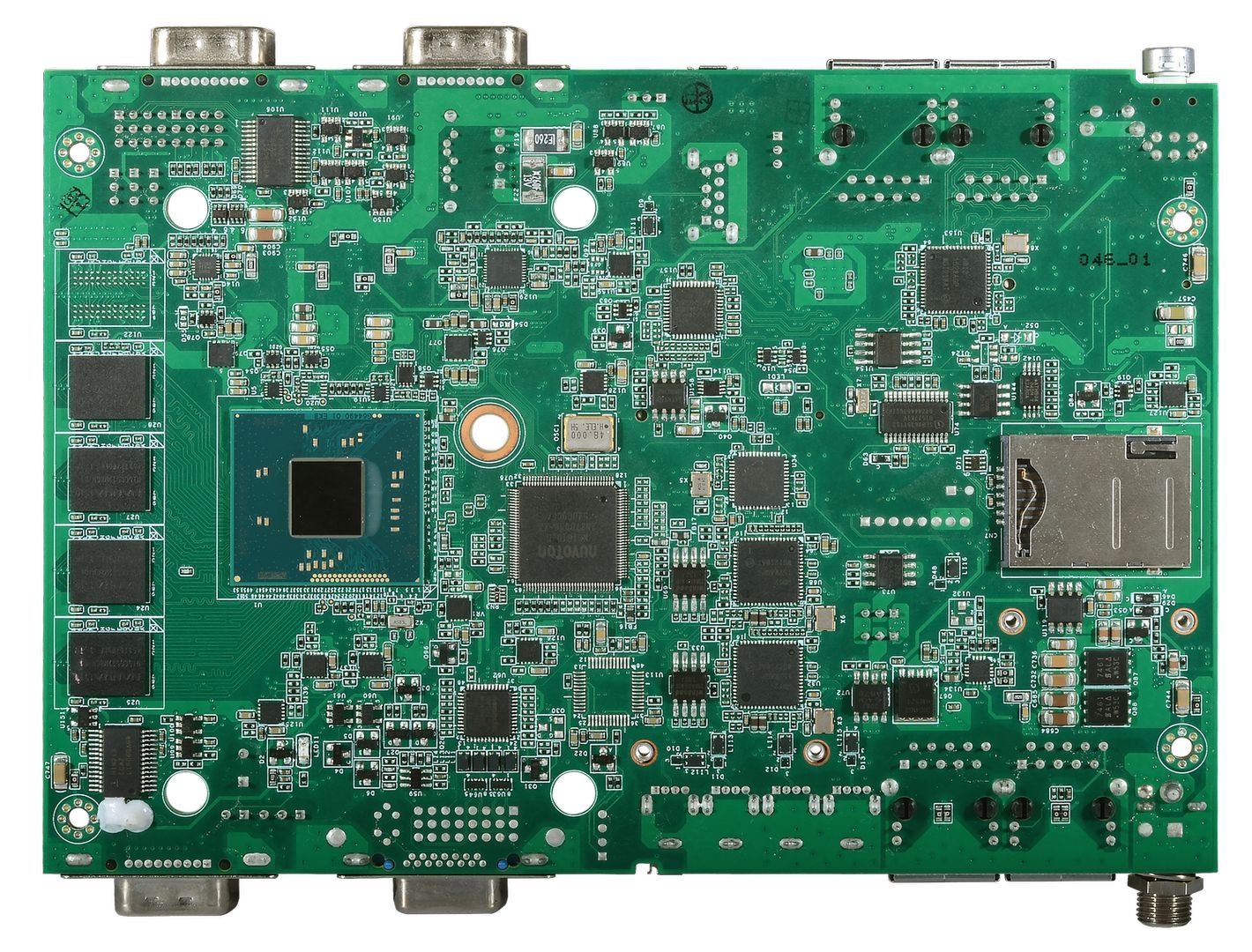

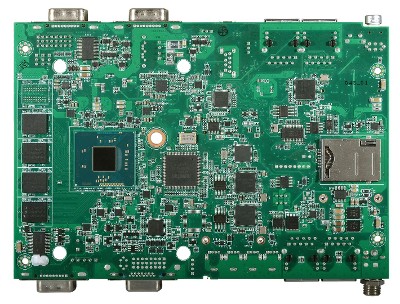

Basic Module: DFI BT259
| General information | ||||
| SKU / Item Number | BT259 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| Product ID | 770-BT2591-000G, 770-BT2591-100G | |||
| System | ||||
| Processor | Series | Intel Bay Trail | ||
| Number | Intel Atom E3845, Intel Celeron J1900 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1170 | |||
| Base frequency | 1,91 GHz, 2,41 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 10 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Frequency | 800 / 1066 MHz, 1066 / 1333 MHz | ||
| Internal memory | 2 GB, 4 GB | |||
| BIOS | AMI UEFI 64 Mbit SPI | |||
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| VGA | Maximum resolution | 2560 x 1600 at 60 Hz | ||
| DVI | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 2 Pce | |
| USB support | Yes | |||
| mSATA support | Yes | |||
| PCIe Interfaces | 2x Mini-PCIe slots | |||
| Storage | mSATA | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210 PCIe (10/100/1000 Mbps) | |
| Quantity | 4 Pce | |||
| Network | 4x G-LAN | |||

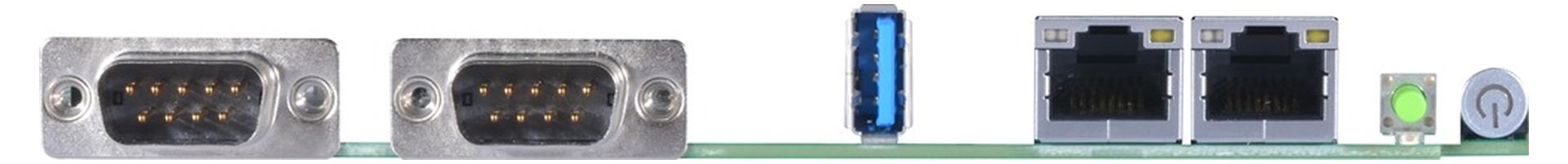

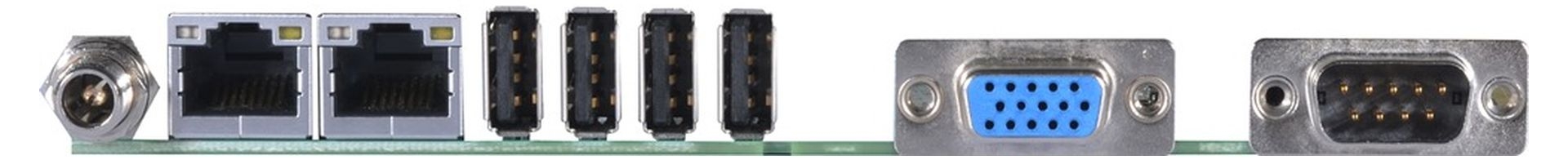

| External I/O | ||||
| Ethernet | RJ-45 | 4 Pce | ||
| USB | USB 2.0 | 4 Pce | ||
| USB 3.0 | 1 Pce | |||
| Serial | RS-232 / 422 / 485 | DB-9 | 3 Pce | |
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 1 Pce | |
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial ATA | S-ATA R2.0 (3 Gbps, 300 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v1.2 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 16 to 24V | |||
| Connector | DC barrel connector | |||
| Power supply - Input | DC: 16-24V | |||
| OS / Software | ||||
| Windows | Windows 7 (32/64-bit) | is supported | ||
| Windows 8 (32-bit) | is supported | |||
| Windows 8 (64-bit) | is supported | |||
| Windows 8.1 (32-bit) | is supported | |||
| Windows 8.1 (64-bit) | is supported | |||
| Windows 10 (64-bit) | is supported | |||
| Windows Embedded | WES7E | is supported | ||
| WE8S | is supported | |||
| Linux | Distribution | Ubuntu 14.04 | ||
| Supported OS | Linux, Windows, Windows Embedded | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Heat Spreader | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Storage | 5 to 90%, non-condensing | |||
| Dimensions | Form factor | 4 inches | ||
| Width | 115 mm | |||
| Deep | 165 mm | |||
| MTTF (Mean Time To Failure) | MTTF 25°C | 367.838 h | ||
| MTTF at 45°C | 204.902 h | |||
| Calculation model | Telcordia Issue 2, Method I Case 3 | |||
| Environment | GB, GC – Ground Benign, Controlled | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
| Lifecycle | ||||
| Production start | Q3/2017 | |||
| Expected until | Q4/2028 | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
