4" Mainboards
// 4 inches Industrial Mainboards
// LGA 1700 (H6)
// [Intel H610E | Intel R680E]
// 262-pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply ATX
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

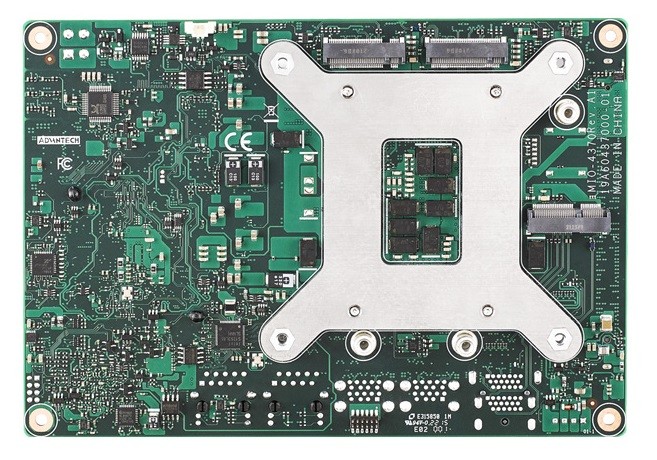

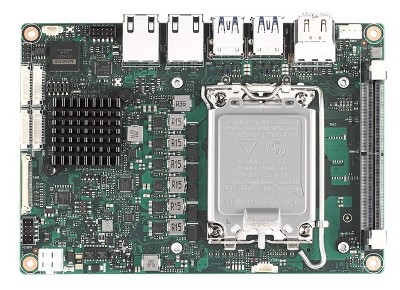

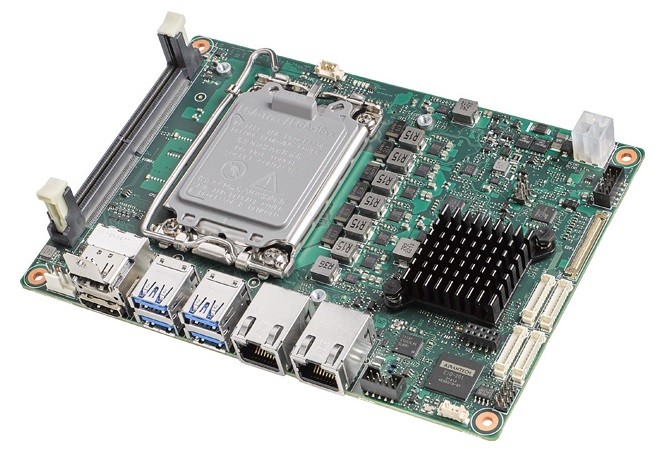

Basic Module: Advantech MIO-4370
| General information | ||||
| SKU / Item Number | MIO-4370 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | Intel Alder Lake / Raptor Lake | ||
| Socket | LGA 1700 (H6) | |||
| Thermal Design Power (TDP) | 35 W | |||
| Chipset | Intel H610E, Intel R680E | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| Frequency | 4800 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 32 GB | |||
| ECC (Error-Correcting Code) | is supported, not supported | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Graphics | ||||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Version | 1.2 | |||
| eDP (Embedded DisplayPort) | Maximum resolution | 5120 x 3200 at 60 Hz | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | B, M | ||
| Interface | 4G/LTE, NVMe, PCIe ×4 (Gen 4), USB 2.0 | |||
| Supported dimensions | 2280, 3042 | |||
| Slot 3 | Key ID | E | ||
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E, M | |||
| SIM | Quantity | 1 Pce, - | ||
| Form Factor (Slot) | -, Nano SIM | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

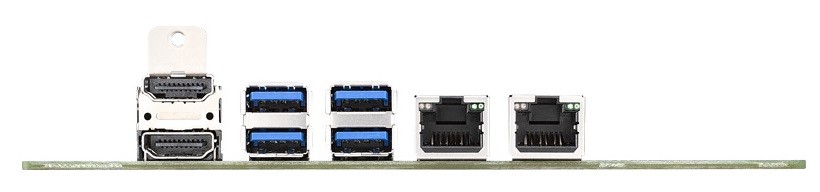

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 2 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 1) | 2 Pce, - | ||
| USB 3.2 (Gen 2) | 2 Pce, 4 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 2 Pce | |
| Serial | RS-232 / 422 / 485 | Ports (Special Connection) | 2 Pce | |
| Display | eDP (Embedded DisplayPort) lanes | 1 Pce | ||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| CAN bus | Version 2.0B (with isolation) | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | dTPM 2.0 (Hardware), Intel PTT (like TPM 2.0) | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 4-pin ATX (12V DC) | |
| Power supply - Input | ATX: 4-Pin ATX (12V DC) | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 4 inches | ||
| Width | 115 mm | |||
| Deep | 165 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Weight | 320 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
