4" Mainboards
// 4 inches Industrial Mainboards
// Qualcomm IQ9075M
// SoC (System on a Chip)
// 32 GB
// 4 x G-LAN (Back side)
// 4 x USB (Back side)
// Digital I/O (16-Bit)
// Power Supply DC 20~36V
Sales only to business customers.
Delivery time: upon request

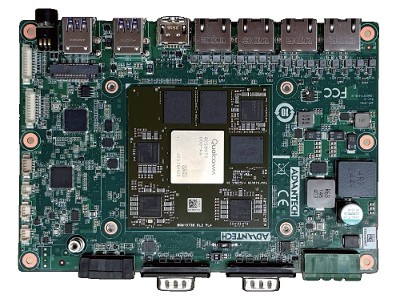

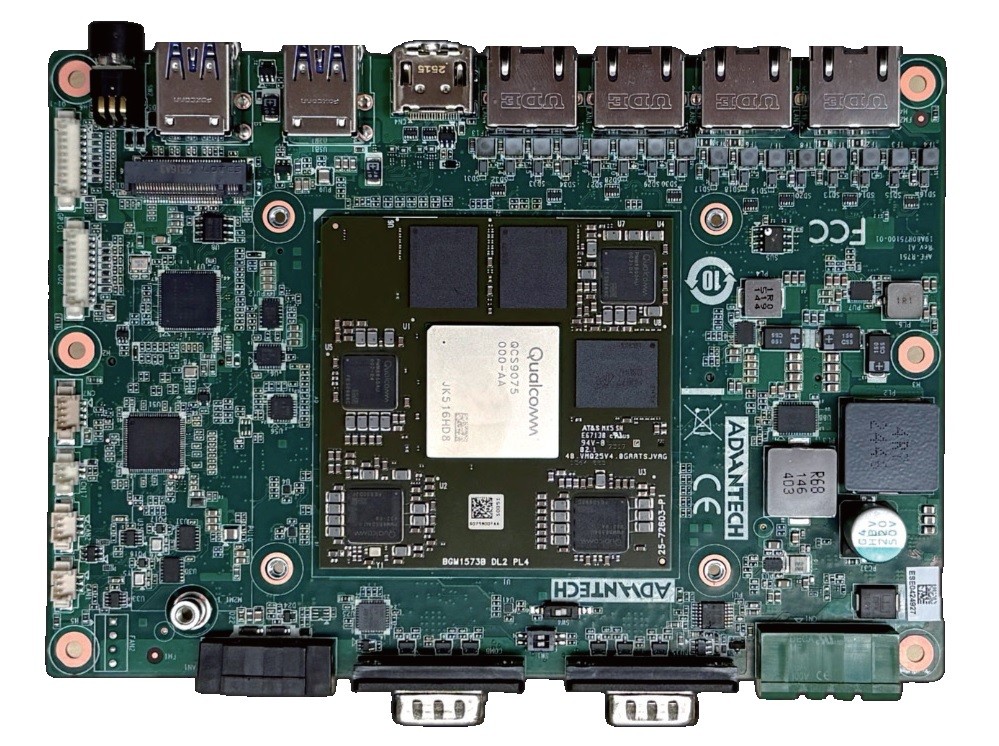

Basic Module: Advantech ASR-A503
| General information | ||||
| SKU / Item Number | ASR-A503 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | Qualcomm Dragonwing IQ9 Series | ||
| Number | Qualcomm IQ9075M | |||
| CPU cores | 8 Pce | |||
| Max Turbo Frequency | 2,36 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| DIMM data transfer rate | 3200 MT/s | |||
| Internal memory | 32 GB | |||
| Storage | Universal Flash Storage (UFS) | Memory | 128 GB GB | |
| Graphics | ||||
| Processor | Qualcomm Adreno 663 | |||
| Performance | TOPS (INT8) | 200 | ||
| HDMI | Maximum resolution | 4096 x 2160 at 24 Hz | ||
| Version | 1.4A | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×1 (Gen 3), UART, USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, USB 2.0, USB 3.2 Gen 1 | |||
| Supported dimensions | 3042, 3052 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8221D (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226IT PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 3 Pce | |||
| Network | 4x G-LAN | |||
| Externe I/O (Front Panel) | ||||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| Externe I/O (Rear Panel) | ||||
| Ethernet | RJ-45 | 4 Pce | ||
| USB | USB 3.1 Gen 1 | 3 Pce | ||
| USB 3.1 Gen 2 | 1 Pce | |||
| Internal I/O | ||||
| Digital I/O | Bits | 16-bit | 1 Pce | |
| Image Capture Interfaces | Camera Input 1 | Quantity | 4 Pce | |
| Lanes | 4 Pce | |||
| CAN bus | Version 2.0B (with isolation) | 1 Pce | ||
| Protocol | CAN 2.0A, CAN 2.0B, CAN-FD | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 20~36V | |||
| Connector | 4-pin terminal plug | |||
| Power supply - Input | DC: 20~36V | |||
| OS / Software | ||||
| Linux | Distribution | Ubuntu 24.04 | ||
| Supported OS | Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20°C to 55°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | 4 inches | ||
| Width | 115 mm | |||
| Deep | 165 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Power | 1 Pce | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | EN 61000-4-2 (Electrostatic Discharge) | |||
| RoHS compliant | Yes | |||
