4" Mainboards
// 4 inches Industrial Mainboards
// [Rockchip RK3588 | Rockchip RK3588J]
// 8 GB
// 4 x G-LAN
// 2 x USB (Back side)
// 2 x Seriell I/O
// 64 GB eMMC
// Power Supply DC 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

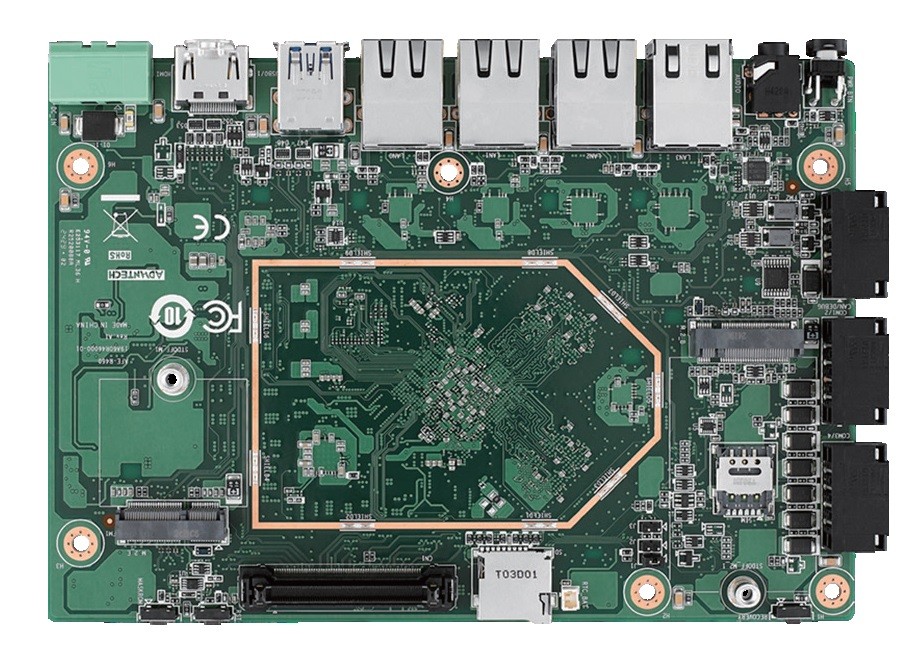

Basic Module: Advantech ASR-A501
| General information | ||||
| SKU / Item Number | ASR-A501 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | ARM Cortex-A76 | |||
| Number | Rockchip RK3588, Rockchip RK3588J | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 2,4 GHz | |||
| Processor 2 | Series | ARM Cortex-A55 | ||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 1,8 GHz | |||
| Memory | Memory Type | DDR4 | ||
| Maximum expansion | 16 GB | |||
| Internal memory | 8 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 64 GB | |||
| AI / AI | ||||
| Performance | TOPS (INT8) | 6 | ||
| Graphics | ||||
| Processor | ARM Mali-G610 MP4 | |||
| HDMI | Maximum resolution | 3840 x 2160 at 30 Hz | ||
| Version | 2.0 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen. 2), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen. 2), SATA III, USB 3.0 | |||
| Supported dimensions | 3052 | |||
| M.2 Key IDs | B, E | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Storage | M.2, Micro SD | |||
| B2B | DDI, GSPI, MIPI-CSI | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8211FSI (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Controller | Chipset | Realtek RTL8119I (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226IT PCIe (10/100/1000/2500 Mbps), Intel I226LM PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 4x G-LAN | |||

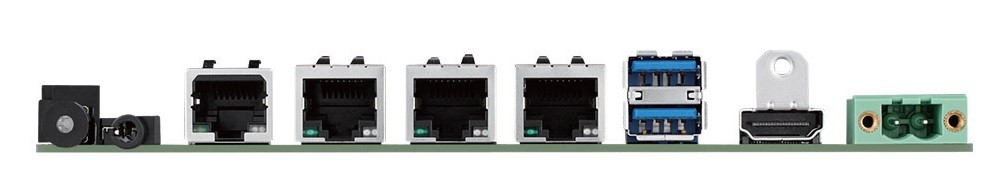

| Externe I/O (Rear Panel) | ||||
| Audio | Combo Jack | 1 Pce | ||
| USB | USB 3.2 (Gen 1) | 1 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| Internal I/O | ||||
| Serial | RS-232 / 485 | Ports (Special Connection) | 2 Pce | |
| RS-422 / 485 | Ports (Special Connection) | 2 Pce | ||
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 2 Pce | |||
| Image Capture Interfaces | Camera Input 1 | MIPI-CSI (Camera Serial Interface) | 2 Pce | |
| Lanes | 4 Pce | |||
| CAN bus | Channel | 2 Pce | ||
| Protocol | CAN-FD | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 12 to 24V | |||
| OS / Software | ||||
| Linux | Distribution | Debian 12 | ||
| Android | Release | 14 | ||
| Supported OS | Android, Linux | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0°C to 70°C, -40°C to 85°C | ||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 4 inches | ||
| Width | 165 mm | |||
| Deep | 115 mm | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Power | 1 Pce | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | International Certificate (IC), UKCA | |||
| RoHS compliant | Yes | |||
