// 3.5" Industrial Mainboards
// Intel Core i5-8265U
// SoC (System on a Chip)
// 260-pin DDR4 SO-DIMM
// 128 GB SSD (M.2)
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 4 x USB (internal)
// 3 x Seriell I/O
// Digital I/O (12-Bit)
// Power Supply ATX
// DC 12V
Sales only to business customers.
Delivery time: upon request

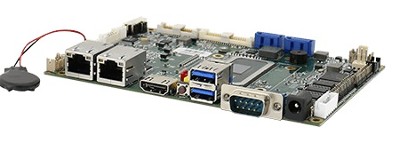

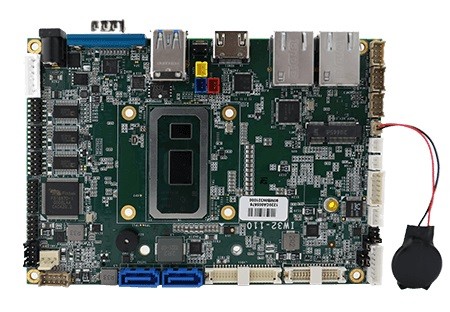

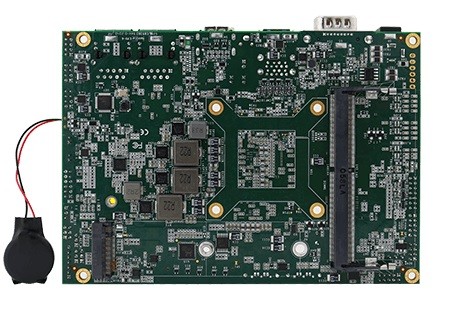

Basic Module: Winmate IW32
| General information | ||||
| SKU / Item Number | IW32 | |||
| Product Basic Data | ||||
| Manufacturer | Winmate | |||
| System | ||||
| Processor | Vertical Segment | Mobile | ||
| Series | Intel Whiskey Lake | |||
| Number | Intel Core i5-8265U | |||
| CPU cores | 4 Pce | |||
| Threads | 8 Pce | |||
| Socket | BGA 1528 | |||
| Base frequency | 1,6 GHz | |||
| Max Turbo Frequency | 3,9 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Lithography | 14 nm | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| Frequency | 2400 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 32 GB | |||
| Internal memory | 4 GB | |||
| Storage | Solid State Drive (M.2) | 128 GB | ||
| Power supply - Input | Solid State Drive (M.2) 128 GB | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | SATA III | |||
| Supported dimensions | 2242 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, SATA III | |||
| Supported dimensions | 2242, 2280 | |||
| Slot 3 | Key ID | E | ||
| Interface | Wi-Fi | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E, M | |||
| Externe I/O (Rear Panel) | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 3 Pce | |
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 12-bit | 1 Pce | |
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Verstärker | 2 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| Power connection (onboard) | 2 Pce | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 2-pin ATX, 6-pin ATX (12V DC) | |
| DC | Wide Range | No | ||
| Range | 12V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | ATX: 2-pin ATX, 6-pin ATX (12V DC), DC: 12V | |||
| Maximum power consumption | 50 W | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | is supported | ||
| Linux | Distribution | Ubuntu 20.04 | ||
| Supported OS | Windows Embedded, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 70°C | |||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 102 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
