3.5" Mainboards
The product is EOL (End Of Life)!
// 3.5" Industrial Mainboards
// Intel Core i5-7200U
// SoC (System on a Chip)
// 260-pin DDR4 SO-DIMM
// 128 GB SSD (M.2)
// LVDS
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (16-Bit)
// Power Supply ATX
// DC 12V
Please configure your desired product.
Standard Configuration
Sales only to business customers.
Delivery time: upon request

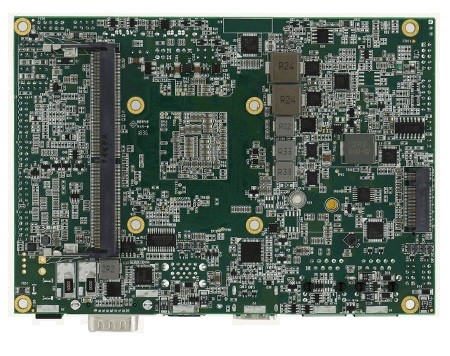

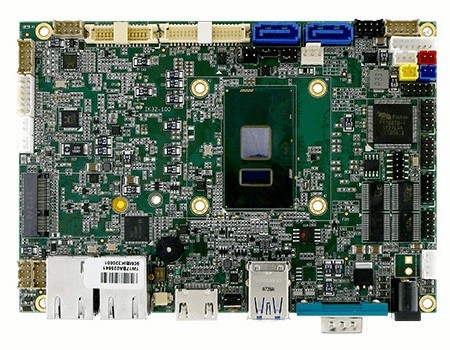

Basic Module: Winmate IK32
| General information | ||||
| SKU / Item Number | IK32 | |||
| Product Basic Data | ||||
| Manufacturer | Winmate | |||
| System | ||||
| Processor | Vertical Segment | Mobile | ||
| Series | Intel Kaby Lake | |||
| Number | Intel Core i5-7200U | |||
| CPU cores | 2 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1356 | |||
| Base frequency | 2,5 GHz | |||
| Max Turbo Frequency | 3,1 GHz | |||
| Cache | 3 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Lithography | 14 nm | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| DIMM data transfer rate | 2133 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 16 GB | |||
| Internal memory | 4 GB | |||
| Storage | Solid State Drive (M.2) | 128 GB | ||
| Power supply - Input | Solid State Drive (M.2) 128 GB | |||
| Graphics | ||||
| Processor | Intel HD Graphics 620 | |||
| HDMI | Maximum resolution | 4096 x 2304 at 24 Hz | ||
| Version | 1.4 | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| eDP (Embedded DisplayPort) | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | SATA III | |||
| Supported dimensions | 2242 | |||
| Slot 2 | Key ID | E | ||
| Interface | Wi-Fi | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I225LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

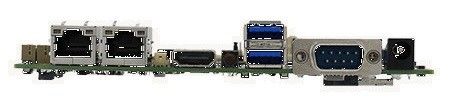

| Externe I/O (Rear Panel) | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (2.54 mm pitch) | 4 Pce | |
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 16-bit | 1 Pce | |
| LPC | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Verstärker | 2 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| Power connection (onboard) | 2 Pce | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 2-pin ATX, 4-pin ATX (12V DC) | |
| DC | Wide Range | No | ||
| Range | 12V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | ATX: 2-pin ATX, 4-pin ATX (12V DC), DC: 12V | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | is supported | ||
| Windows 10 Enterprise IoT LTSC (2019) | is supported | |||
| Linux | Distribution | Ubuntu 20.04 | ||
| Supported OS | Windows Embedded, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 70°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 102 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
