3.5" Mainboards
// 3.5" Industrial Mainboards
// [Intel Core Ultra 5 Processor 125U | Intel Core Ultra 5 Processor 135U | Intel Core Ultra 5 Processor 225U | Intel Core Ultra 5 Processor 235U | Intel Core Ultra 7 Processor 155U | Intel Core Ultra 7 Processor 165U | Intel Core Ultra 7 Processor 255U | Intel Core Ultra 7 Processor 265U]
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// Digital I/O (8-Bit)
// Power Supply DC 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

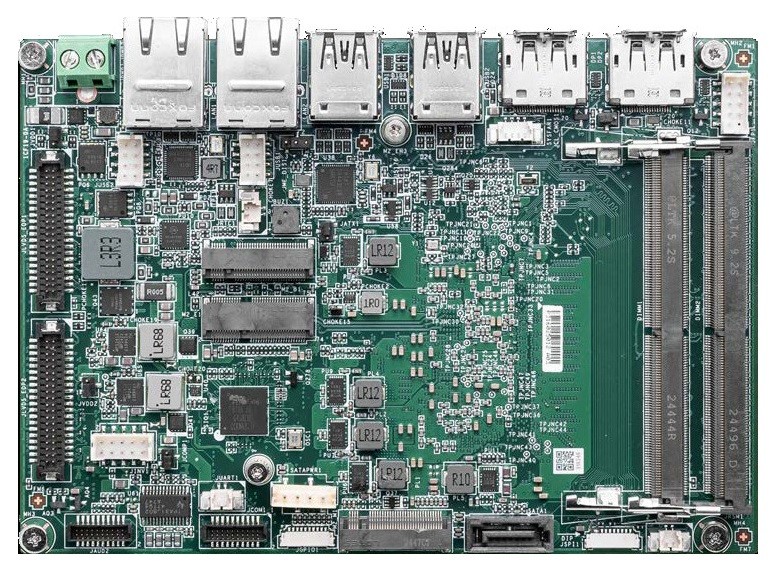

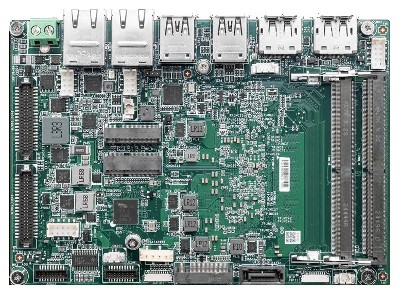

Basic Module: MSI MS-CF19
| General information | ||||
| SKU / Item Number | MS-CF19 | |||
| Product Basic Data | ||||
| Manufacturer | MSI | |||
| Product ID | 916-CF19-002, 916-CF19-003, 916-CF19-004, 916-CF19-005, 916-CF19-006, 916-CF19-007, 916-CF19-008, 916-CF19-009 | |||
| System | ||||
| Processor | Series | Intel Arrow Lake, Intel Meteor Lake | ||
| Number | Intel Core Ultra 5 Processor 125U, Intel Core Ultra 5 Processor 135U, Intel Core Ultra 5 Processor 225U, Intel Core Ultra 5 Processor 235U, Intel Core Ultra 7 Processor 155U, Intel Core Ultra 7 Processor 165U, Intel Core Ultra 7 Processor 255U, Intel Core Ultra 7 Processor 265U | |||
| CPU cores | 12 Pce | |||
| Threads | 14 Pce | |||
| Socket | BGA 2049 | |||
| Performance core base clock frequency | 1,3 GHz, 1,5 GHz, 1,6 GHz, 1,7 GHz, 2 GHz, 2,1 GHz | |||
| Performance Core Max Turbo Frequency | 4,3 GHz, 4,4 GHz, 4,8 GHz, 4,9 GHz, 5,2 GHz, 5,3 GHz | |||
| Efficient-core base clock frequency | 0,8 GHz, 1,1 GHz, 1,2 GHz, 1,3 GHz, 1,6 GHz, 1,7 GHz | |||
| Efficient-core Max Turbo Frequency | 3,6 GHz, 3,8 GHz, 4,1 GHz, 4,2 GHz | |||
| Cache | 12 MB | |||
| Basic power consumption of the processor | 15 W | |||
| Maximum Turbo Power Consumption | 57 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM/CSO-DIMM | |||
| DIMM data transfer rate | 6400 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 96 GB | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81966AB-I | |
| Graphics | ||||
| Processor | Intel Graphics | |||
| Screens (Multi-display) | 4 displays | |||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 1.4A | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| eDP (Embedded DisplayPort) | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | B | ||
| Interface | PCIe ×1 (Gen 3), SATA III, USB 2.0 | |||
| Supported dimensions | 2242, 3042 | |||
| Slot 3 | Key ID | E | ||
| Interface | CNVi (Connected Network Interface), PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC897 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I219LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

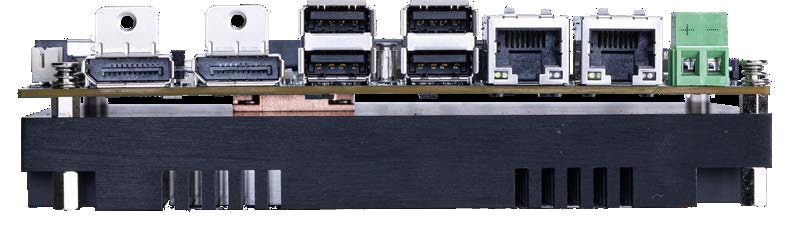

| Externe I/O (Rear Panel) | ||||
| Display | DisplayPort | 2 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 2) | 4 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Serial | RS-232 / 422 / 485 | 1.00 mm pitch | 2 Pce | |
| Display | LCD / Inverter Power | Yes | ||
| LVDS (Low Voltage Differential Signaling) | Dual channel | |||
| LVDS connectors | 2 Pce | |||
| eDP (Embedded DisplayPort) lanes | 2 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Infineon SLB 9672 VU 2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 12 to 24V | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows Embedded | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -10° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 102 mm | |||
| Weight | 630 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | BSMI, International Certificate (IC), RCM, UKCA, VCCI | |||
| RoHS compliant | Yes | |||
