3.5" Mainboards
// 3.5" Industrial Mainboards
// [Intel Celeron 4305UE | Intel Core i3-8145UE | Intel Core i5-8365UE | Intel Core i7-8665UE]
// SoC (System on a Chip)
// 260-pin DDR4 SO-DIMM
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

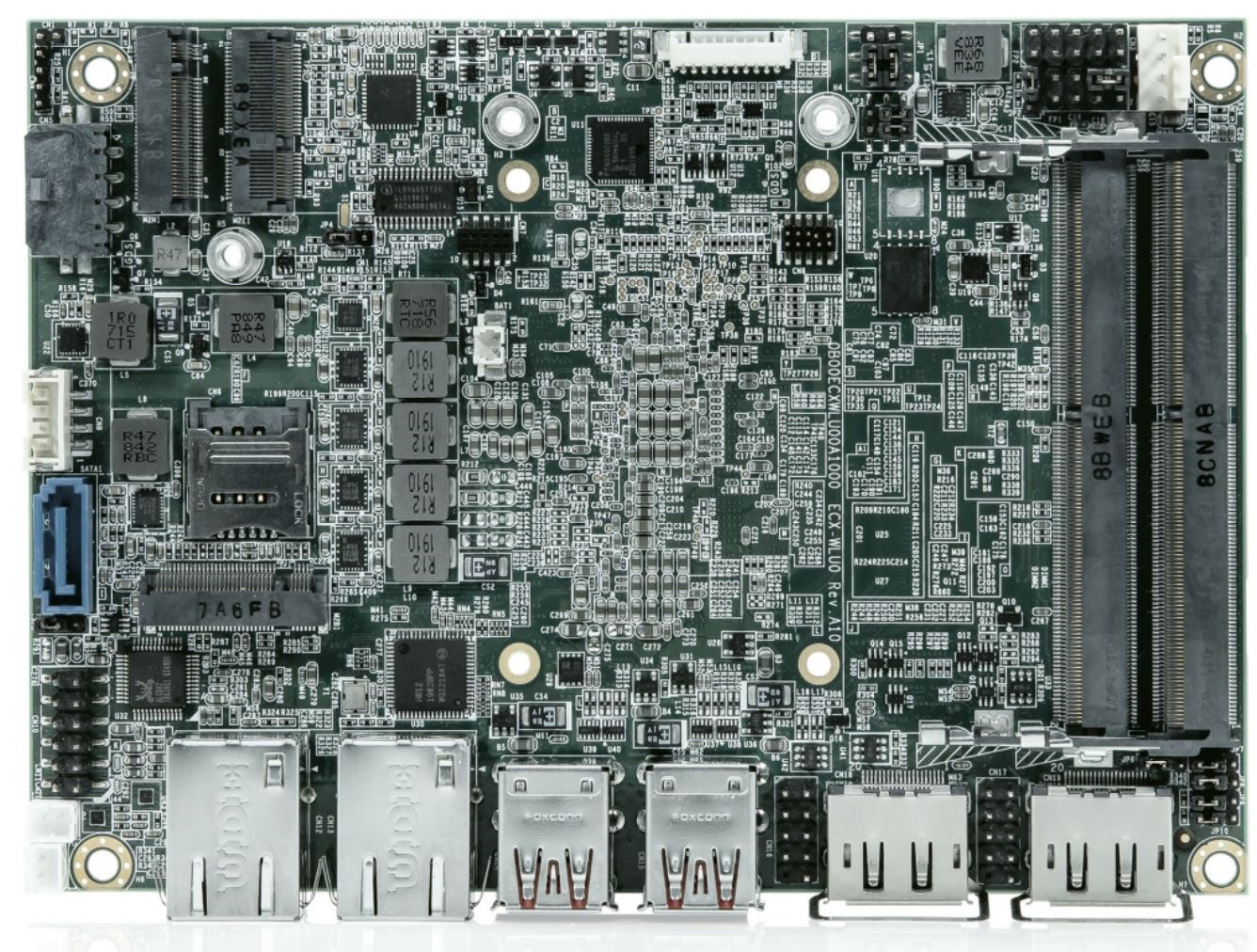

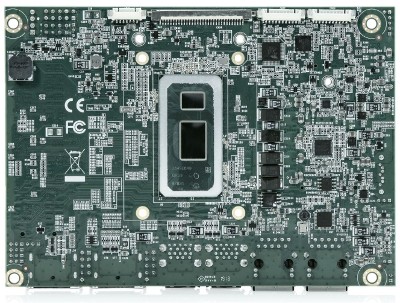

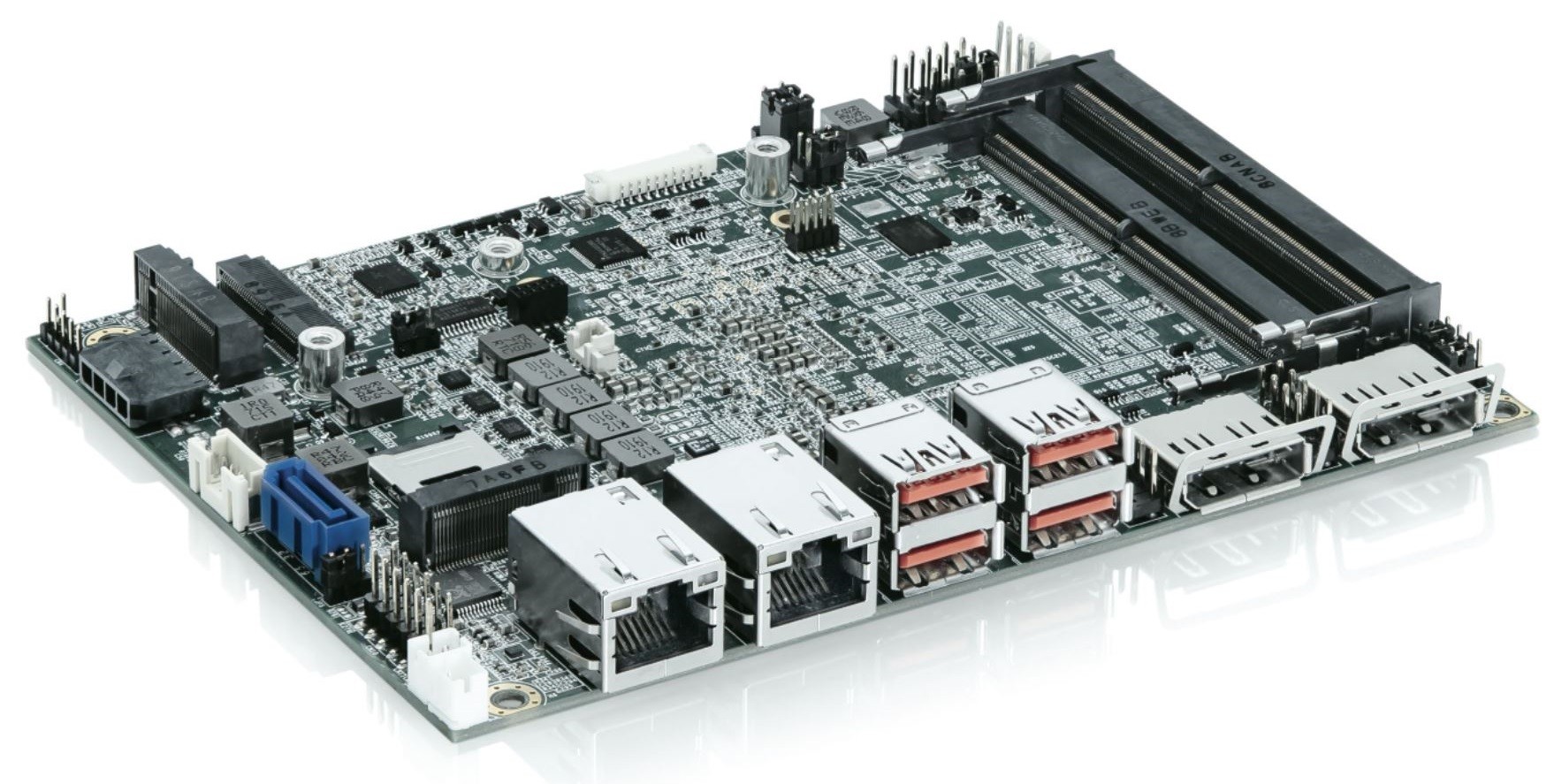

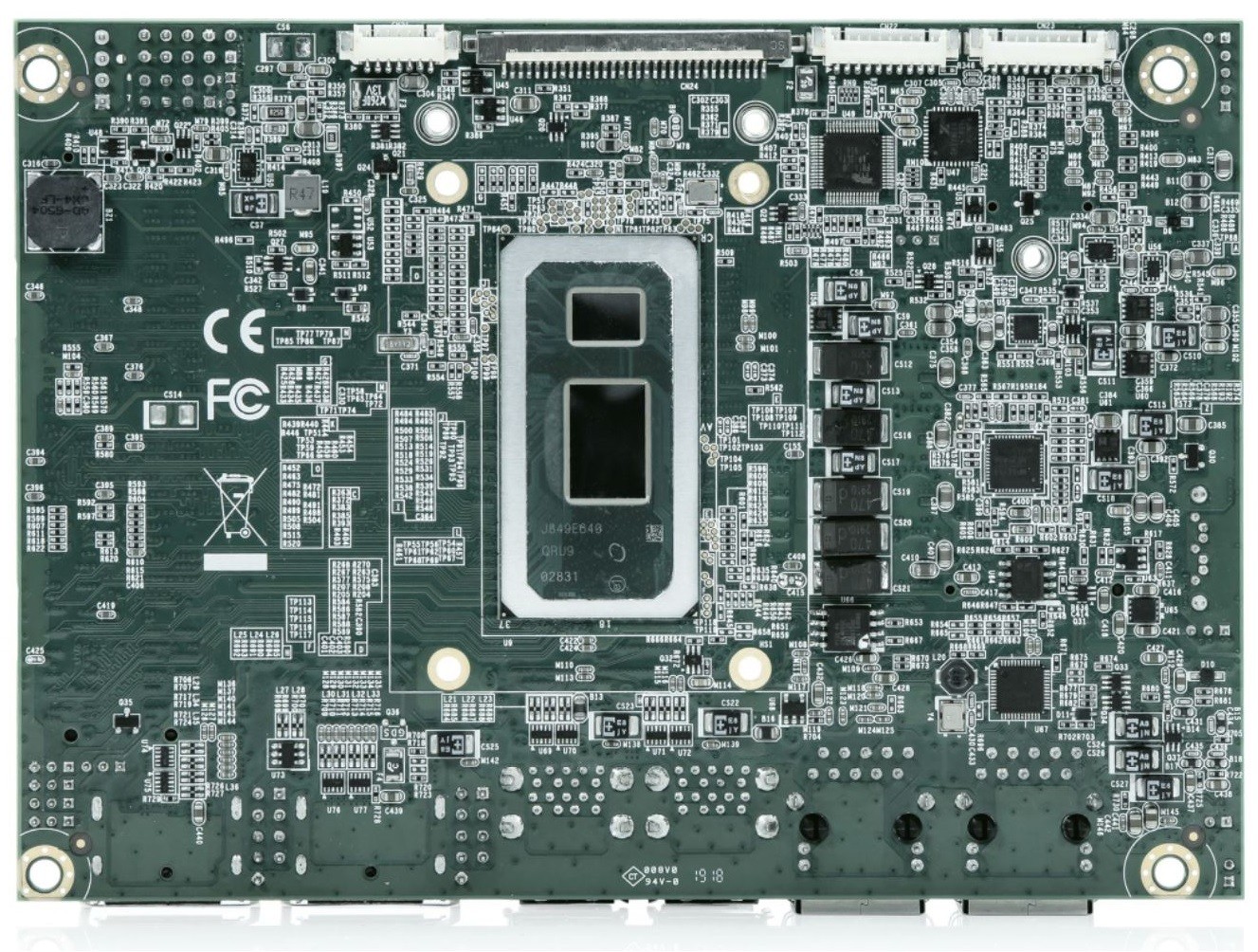

Basic Module: Kontron SBC-WLU
| General information | ||||
| SKU / Item Number | SBC-WLU | |||
| Product Basic Data | ||||
| Manufacturer | Kontron | |||
| System | ||||
| Processor | Series | Intel Whiskey Lake | ||
| Number | Intel Celeron 4305UE, Intel Core i3-8145UE, Intel Core i5-8365UE, Intel Core i7-8665UE | |||
| CPU cores | 2 Pce, 4 Pce | |||
| Threads | 2 Pce, 4 Pce, 8 Pce | |||
| Socket | BGA 1528 | |||
| Base frequency | 1,6 GHz, 1,7 GHz, 2 GHz, 2,2 GHz | |||
| Max Turbo Frequency | 3,9 GHz, 4,1 GHz, 4,4 GHz, - | |||
| Cache | 2 MB, 4 MB, 6 MB, 8 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Lithography | 14 nm | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| DIMM data transfer rate | 2133 MT/s, 2400 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Graphics | ||||
| Processor | Intel UHD Graphics 610, Intel UHD Graphics 620 | |||
| Screens (Multi-display) | 3 displays | |||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Dual mode | Yes (DP++) | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| Bridge | NXP PTN3460 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | PCIe ×1 (Gen. 2), UIM, USB 2.0, USB 3.2 Gen 1 | |||
| Supported dimensions | 2242 | |||
| Slot 2 | Key ID | M | ||
| Interface | PCIe ×4, SATA III | |||
| Supported dimensions | 2242, 2280 | |||
| Slot 3 | Key ID | E | ||
| Interface | CNVi (Connected Network Interface), PCIe ×1 (Gen. 2), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I219LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | DP++ | 2 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 2) | 4 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Serial | RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 2 Pce | |
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Verstärker | 2 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Infineon SLB 9665 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 4-pin connector (vertical) | |||
| Power supply - Input | DC: 12V | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 105 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
